Rancho · RS999937

Rancho RS999937

Part #: RS999937
UPC: 039703001748

Loading...
Notify me when this item is in stock.

Brand: Rancho Series: QuickLIFT Loaded Struts
Log in to order

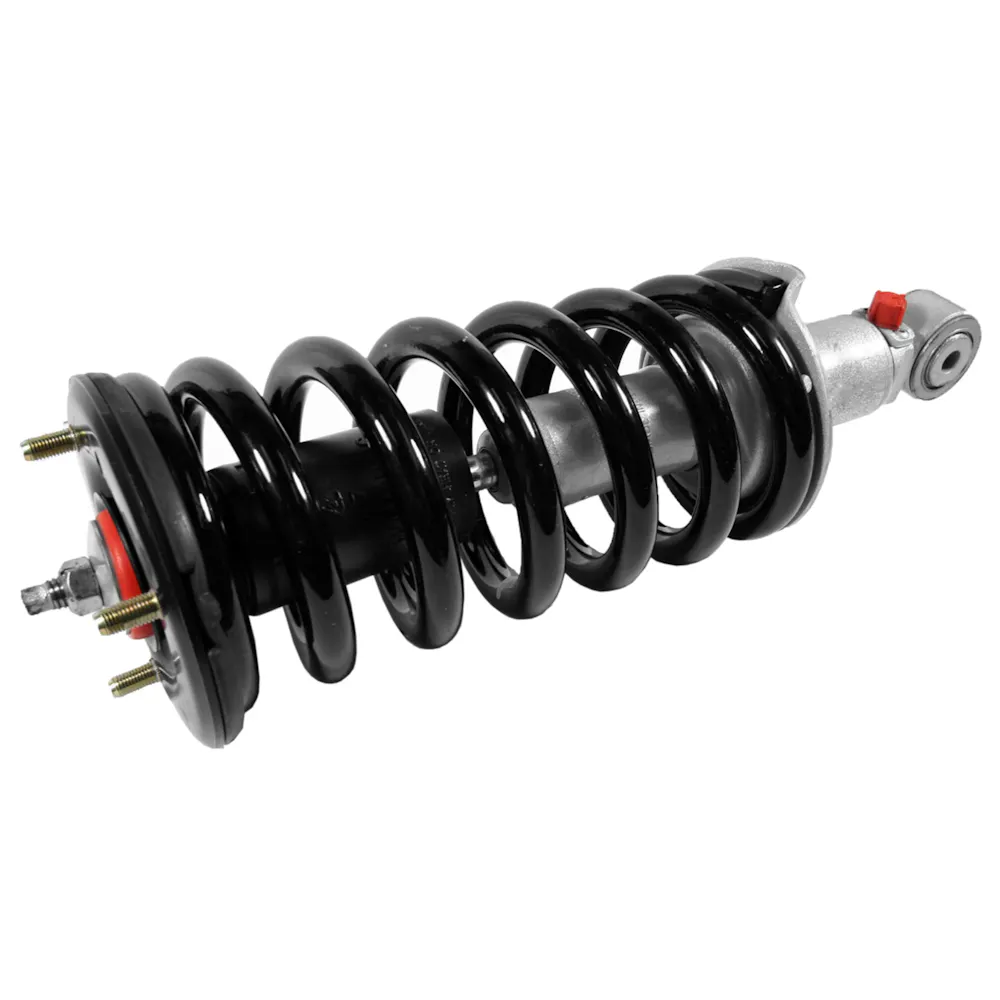

Description: QuickLIFT Suspension Strut and Coil Spring Assembly; Rancho QuickLIFT RS999937 Suspension Strut and Coil Spring Assembly for Nissan TITAN

Description:

This part number has been superseded by RS994937.

Description

An all-in-one solution, Rancho® quickLIFT™ loaded assemblies level and lift late model trucks and SUVs. This complete assembly simplifies installation, levels the front suspension and provides additional lift to accommodate larger wheels and tires.

Features & benefits

  • COMPLETE SOLUTION -- Levels and lifts late model trucks and SUVs without the cost of complete suspension system
  • EASY BOLT-ON INSTALLATION -- Complete assembly includes application-specific coil spring and upper mounting plate to simplify installation
  • LEVELS FRONT SUSPENSION -- Removes factory rake for an aggressive stance
  • INCREASED GROUND CLEARANCE -- Provides 1.75-in. of additional lift to accommodate up to 305x65x18 (Armada) and 315x70x17 (Titan) tires for a custom look and increased ground clearance (lift height varies depending upon application)
  • NINE LEVELS OF PERFORMANCE -- Includes RS9000™XL strut with nine-position easy-to-adjust knob to allow customized damping control and firmness for on-road and off-road flexibility
  • BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression and long-lasting premium liquid metallic finish and polyvinyl protective boot ensure long life
  • REDUCES FADE -- Nitrogen gas pressurized to 100 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
  • BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application summary

Year Make / model
2004-2011 INFINITI QX56
2005-2015 Nissan Armada
2004-2015 Nissan TITAN
2017-2024 Nissan TITAN

Specifications

GTIN
00039703001748
Weight
23.5 lb
Height
24.38 in
Length
7.75 in
Width
6.75 in
Life cycle
Available to Order
AAM brand code
RAN
Warehouse brand code
RAN
AAIA brand code
BCKM

Attributes

Body Diameter
2
Body Length
273.8
Body Length (in.)
10.780
Body Type
SS3
California Proposition 65
No
Collapsed Length
11.290 in.
Collapsed Length (in.)
11.290
Compressed Bumper Stop
No
Compressed Length
11.290
Dust Shield
Yes
Dust Shield Included
Yes
Extended Bumper Stop
Yes
Extended Hydraulic Lockout
No
Extended Length
381
Extended Length (in.)
15.000 in.
Grade Type
Performance
Hydraulic Lockout
No
Internal Rebound Bumper
Yes
Lower Mount Type
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Description
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Max Year Covered
2019
Min Year Covered
2004
Most Popular Make / Model
Nissan Titan
Most Popular Make/Model
Nissan Titan
Most Popular Year
2005
Parts Pack
P01101
Parts Pack(s)
P01101
Product Grade
Premium
Reserve Tube Diameter
2
Shock Stroke
3.710 in.
Shock Stroke (in.)
3.710
Total Part VIO
769237
Travel Length
3.710
Upper Mount Type
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Description
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2004-2011 INFINITI QX56; 2005-2015 Nissan Armada; 2004-2015 Nissan TITAN; 2017-2024 Nissan TITAN
