Rancho · RS999933

Rancho RS999933

Part #: RS999933
UPC: 039703001700

Loading...
Notify me when this item is in stock.

Brand: Rancho Series: QuickLIFT Loaded Struts
Log in to order

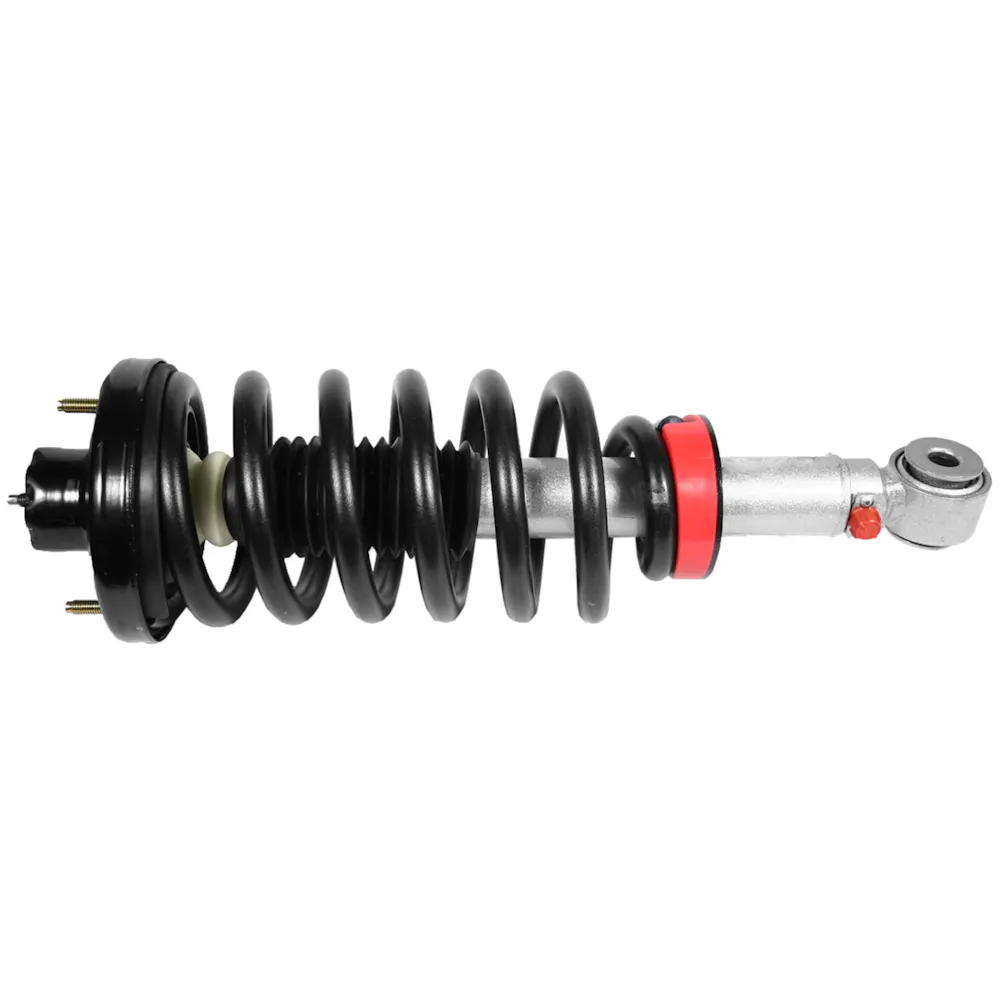

Description: QuickLIFT Suspension Strut and Coil Spring Assembly; Rancho QuickLIFT RS999933 Suspension Strut and Coil Spring Assembly for Ford Expedition

Description:

This part number has been superseded by RS994933.

Description

An all-in-one solution, Rancho® quickLIFT™ loaded assemblies level and lift late model trucks and SUVs. This complete assembly simplifies installation, levels the front suspension and provides additional lift to accommodate larger wheels and tires.

Features & benefits

  • COMPLETE SOLUTION -- Levels and lifts late model trucks and SUVs without the cost of complete suspension system
  • EASY BOLT-ON INSTALLATION -- Complete assembly includes application-specific coil spring and upper mounting plate to simplify installation
  • LEVELS FRONT SUSPENSION -- Removes factory rake for an aggressive stance
  • INCREASED GROUND CLEARANCE -- Provides .75-in. of additional lift to accommodate up to 275x60x20 tires for a custom look and increased ground clearance (lift height varies depending upon application)
  • NINE LEVELS OF PERFORMANCE -- Includes RS9000™XL strut with nine-position easy-to-adjust knob to allow customized damping control and firmness for on-road and off-road flexibility
  • BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression and long-lasting premium liquid metallic finish and polyvinyl protective boot ensure long life
  • REDUCES FADE -- Nitrogen gas pressurized to 100 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
  • BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application summary

Year Make / model
2003-2006 Ford Expedition

Specifications

GTIN
00039703001700
Weight
12 lb
Height
30.38 in
Length
8.75 in
Width
7.75 in
Life cycle
Available to Order
AAM brand code
RAN
Warehouse brand code
RAN
AAIA brand code
BCKM

Attributes

Body Diameter
2.13
Body Length
14.59
Body Length (in.)
14.170
Body Type
SS3
California Proposition 65
No
Collapsed Length
14.670 in.
Collapsed Length (in.)
14.670
Compressed Bumper Stop
No
Compressed Length
14.670
Dust Shield
No
Dust Shield Included
No
Extended Bumper Stop
No
Extended Hydraulic Lockout
No
Extended Length
21.52
Extended Length (in.)
21.600 in.
Grade Type
Performance
Hydraulic Lockout
No
Internal Rebound Bumper
Yes
Lower Mount Type
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Description
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Max Year Covered
2006
Min Year Covered
2003
Most Popular Make / Model
Ford Expedition
Most Popular Make/Model
Ford Expedition
Most Popular Year
2003
Parts Pack
P01141
Parts Pack(s)
P01141
Product Grade
Premium
Reserve Tube Diameter
2.13
Shock Stroke
6.930 in.
Shock Stroke (in.)
6.930
Total Part VIO
480322
Travel Length
6.930
Upper Mount Type
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Description
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2003-2006 Ford Expedition
