Rancho · RS999931

Rancho RS999931

Part #: RS999931
UPC: 039703001687

Loading...
Notify me when this item is in stock.

Brand: Rancho Series: QuickLIFT Loaded Struts
Log in to order

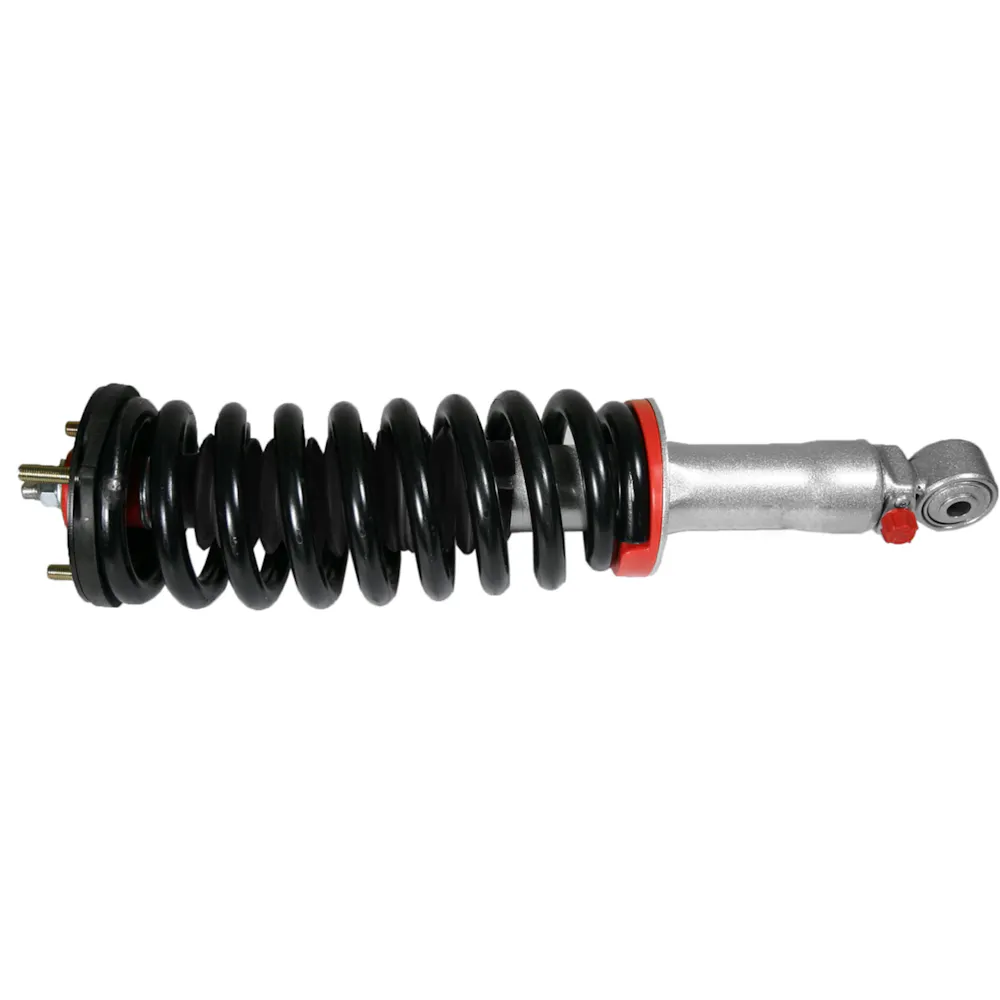

Description: QuickLIFT Suspension Strut and Coil Spring Assembly; Rancho QuickLIFT RS999931 Suspension Strut and Coil Spring Assembly for Toyota Tundra

Description:

This part number has been superseded by RS994931.

Description

An all-in-one solution, Rancho® quickLIFT™ loaded assemblies level and lift late model trucks and SUVs. This complete assembly simplifies installation, levels the front suspension and provides additional lift to accommodate larger wheels and tires.

Features & benefits

  • COMPLETE SOLUTION -- Levels and lifts late model trucks and SUVs without the cost of complete suspension system
  • EASY BOLT-ON INSTALLATION -- Complete assembly includes application-specific coil spring and upper mounting plate to simplify installation
  • LEVELS FRONT SUSPENSION -- Removes factory rake for an aggressive stance
  • INCREASED GROUND CLEARANCE -- Provides 2.25 to 2.5-in. of additional lift to accommodate up to 285x60x18 tires for a custom look and increased ground clearance (lift height varies depending upon application)
  • NINE LEVELS OF PERFORMANCE -- Includes RS9000™XL strut with nine-position easy-to-adjust knob to allow customized damping control and firmness for on-road and off-road flexibility
  • BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression and long-lasting premium liquid metallic finish and polyvinyl protective boot ensure long life
  • REDUCES FADE -- Nitrogen gas pressurized to 100 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
  • BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application summary

Year Make / model
2001-2007 Toyota Sequoia
2000-2006 Toyota Tundra

Specifications

GTIN
00039703001687
Weight
22.8 lb
Height
24.38 in
Length
6.75 in
Width
5.75 in
Life cycle
Available to Order
AAM brand code
RAN
Warehouse brand code
RAN
AAIA brand code
BCKM

Attributes

Body Diameter
2
Body Length
336
Body Length (in.)
13.230
Body Type
SS3
California Proposition 65
No
Collapsed Length
13.730 in.
Collapsed Length (in.)
13.730
Compressed Bumper Stop
No
Compressed Length
13.730
Dust Shield
Yes
Dust Shield Included
Yes
Extended Bumper Stop
No
Extended Hydraulic Lockout
No
Extended Length
458.2
Extended Length (in.)
18.040 in.
Grade Type
Performance
Hydraulic Lockout
No
Internal Rebound Bumper
No
Lower Mount Type
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Description
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Max Year Covered
2007
Min Year Covered
2000
Most Popular Make / Model
Toyota Tundra
Most Popular Make/Model
Toyota Tundra
Most Popular Year
2006
Parts Pack
P01101
Parts Pack(s)
P01101
Product Grade
Premium
Reserve Tube Diameter
2
Shock Stroke
4.310 in.
Shock Stroke (in.)
4.310
Total Part VIO
615730
Travel Length
4.310
Upper Mount Type
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Description
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2001-2007 Toyota Sequoia; 2000-2006 Toyota Tundra
