Rancho · RS999928

Rancho RS999928

Part #: RS999928
UPC: 039703001649

Loading...
Notify me when this item is in stock.

Brand: Rancho Series: QuickLIFT Loaded Struts
Log in to order

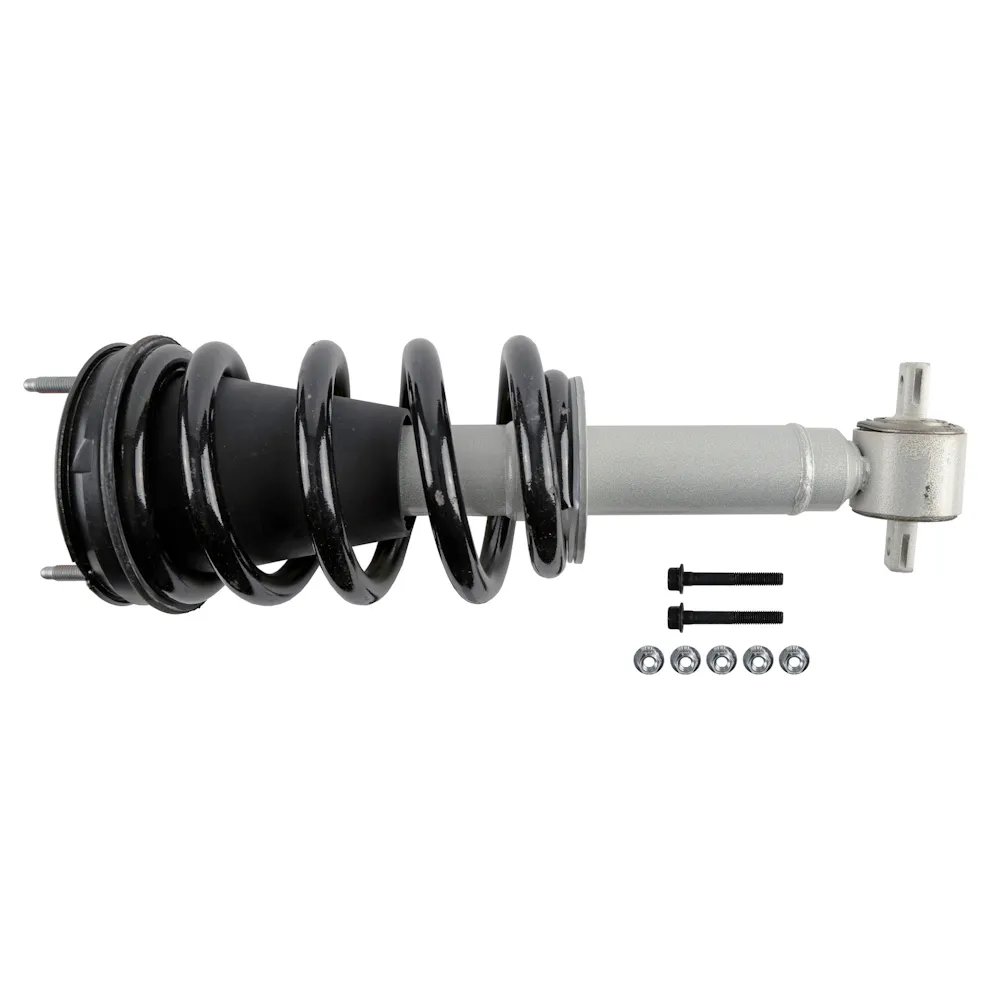

Description: QuickLIFT Suspension Strut and Coil Spring Assembly; Rancho QuickLIFT RS999928 Suspension Strut and Coil Spring Assembly for Chevrolet Avalanche

Description:

This part number has been superseded by RS994928.

Description

An all-in-one solution, Rancho® quickLIFT™ loaded assemblies level and lift late model trucks and SUVs. This complete assembly simplifies installation, levels the front suspension and provides additional lift to accommodate larger wheels and tires.

Features & benefits

  • COMPLETE SOLUTION -- Levels and lifts late model trucks and SUVs without the cost of complete suspension system
  • EASY BOLT-ON INSTALLATION -- Complete assembly includes application-specific coil spring and upper mounting plate to simplify installation
  • LEVELS FRONT SUSPENSION -- Removes factory rake for an aggressive stance
  • INCREASED GROUND CLEARANCE -- Provides 2-in. of additional lift to accommodate up to 275x60x20 tires for a custom look and increased ground clearance (lift height varies depending upon application)
  • NINE LEVELS OF PERFORMANCE -- Includes RS9000™XL strut with nine-position easy-to-adjust knob to allow customized damping control and firmness for on-road and off-road flexibility
  • BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression and long-lasting premium liquid metallic finish and polyvinyl protective boot ensure long life
  • REDUCES FADE -- Nitrogen gas pressurized to 100 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
  • BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application summary

Year Make / model
2007-2013 Chevrolet Avalanche
2007-2014 Chevrolet Suburban 1500
2007-2014 Chevrolet Tahoe
2007-2014 GMC Yukon
2007-2014 GMC Yukon XL 1500

Specifications

GTIN
00039703001649
Weight
18 lb
Height
24.38 in
Length
8.75 in
Width
7.75 in
Life cycle
Available to Order
AAM brand code
RAN
Warehouse brand code
RAN
AAIA brand code
BCKM

Attributes

Body Diameter
2.13
Body Length
13.31
Body Length (in.)
13.310
Body Type
SS7
California Proposition 65
No
Collapsed Length
13.810 in.
Collapsed Length (in.)
13.810
Compressed Bumper Stop
No
Compressed Length
13.810
Dust Shield
No
Dust Shield Included
No
Extended Bumper Stop
No
Extended Hydraulic Lockout
No
Extended Length
18.06
Extended Length (in.)
18.060 in.
Grade Type
Performance
Hydraulic Lockout
No
Internal Rebound Bumper
No
Lower Mount Type
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Description
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Max Year Covered
2014
Min Year Covered
2007
Most Popular Make / Model
Chevrolet Tahoe
Most Popular Make/Model
Chevrolet Tahoe
Most Popular Year
2007
Parts Pack
P01577,P01510
Parts Pack(s)
P01577,P01510
Product Grade
Premium
Reserve Tube Diameter
2.13
Shock Stroke
4.250 in.
Shock Stroke (in.)
4.250
Total Part VIO
1862977
Travel Length
4.250
Upper Mount Type
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Description
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2007-2013 Chevrolet Avalanche; 2007-2014 Chevrolet Suburban 1500; 2007-2014 Chevrolet Tahoe; 2007-2014 GMC Yukon; 2007-2014 GMC Yukon XL 1500
