Rancho · RS999926

Part #: RS999926
UPC: 039703001625

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Rancho Series: QuickLIFT Loaded Struts

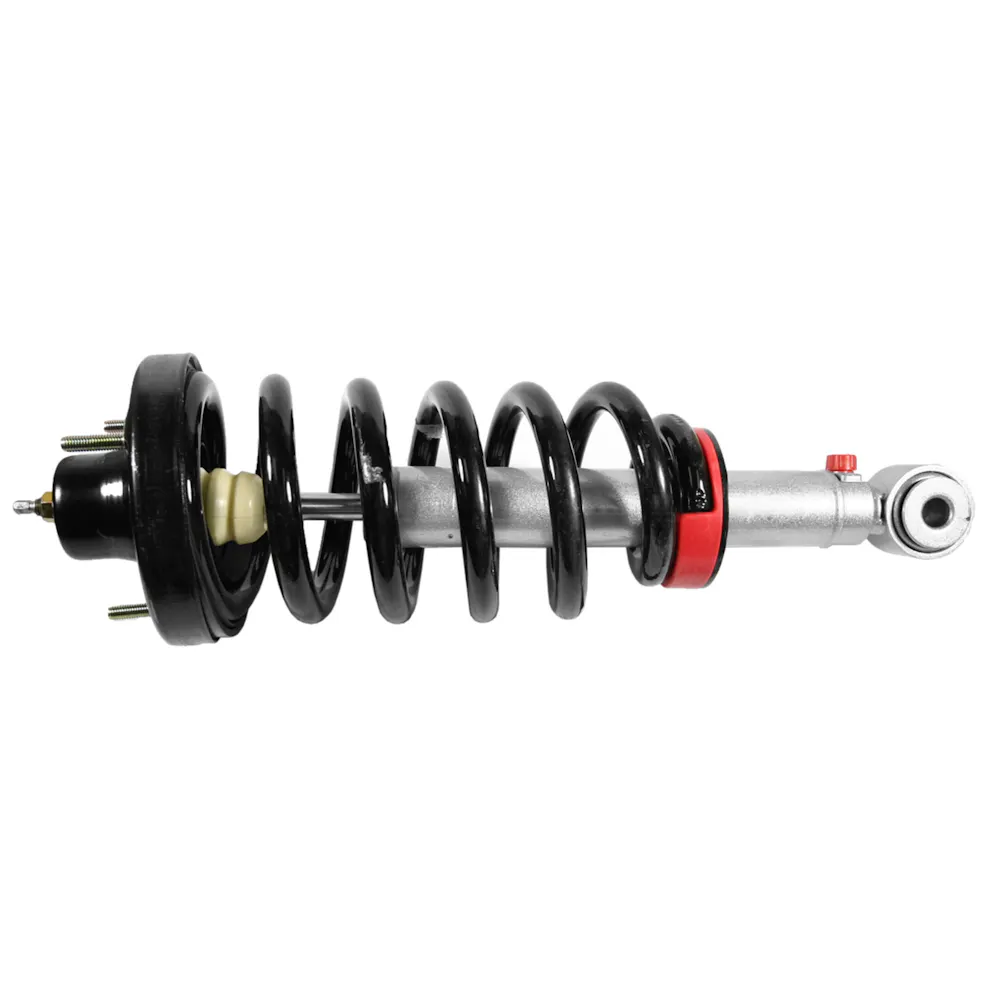

Description: QuickLIFT Suspension Strut and Coil Spring Assembly; Rancho QuickLIFT RS999926 Suspension Strut and Coil Spring Assembly for Ford Expedition

This part number has been superseded by RS994926.

Description

An all-in-one solution, Rancho® quickLIFT™ loaded assemblies level and lift late model trucks and SUVs. This complete assembly simplifies installation, levels the front suspension and provides additional lift to accommodate larger wheels and tires.

Features & benefits

COMPLETE SOLUTION -- Levels and lifts late model trucks and SUVs without the cost of complete suspension system
EASY BOLT-ON INSTALLATION -- Complete assembly includes application-specific coil spring and upper mounting plate to simplify installation
LEVELS FRONT SUSPENSION -- Removes factory rake for an aggressive stance
INCREASED GROUND CLEARANCE -- Provides .75-in. of additional lift to accommodate up to 275x60x20 tires for a custom look and increased ground clearance (lift height varies depending upon application)
NINE LEVELS OF PERFORMANCE -- Includes RS9000™XL strut with nine-position easy-to-adjust knob to allow customized damping control and firmness for on-road and off-road flexibility
BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression and long-lasting premium liquid metallic finish and polyvinyl protective boot ensure long life
REDUCES FADE -- Nitrogen gas pressurized to 100 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application summary

Year	Make / model
2007-2012	Ford Expedition

Specifications

GTIN: 00039703001625
Weight: 33.56 lb
Height: 24.38 in
Length: 8.75 in
Width: 7.75 in
Life cycle: Available to Order
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Adjustable Dampening: Yes
Body Diameter: 2.13
Body Length: 14.95
Body Length (in.): 14.950
Body Type: SS2
California Proposition 65: No
Collapsed Length: 15.450 in.
Collapsed Length (in.): 15.450
Compressed Bumper Stop: No
Compressed Length: 15.450
Dust Shield: No
Dust Shield Included: No
Extended Bumper Stop: No
Extended Hydraulic Lockout: No
Extended Length: 538.5
Extended Length (in.): 21.200 in.
Grade Type: Performance
Hydraulic Lockout: No
Internal Rebound Bumper: No
Lower Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Description: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Max Year Covered: 2012
Min Year Covered: 2007
Most Popular Make / Model: Ford Expedition
Most Popular Make/Model: Ford Expedition
Most Popular Year: 2007
Parts Pack: P01141
Parts Pack(s): P01141
Product Grade: Premium
Reserve Tube Diameter: 2.13
Shock Stroke: 5.750 in.
Shock Stroke (in.): 5.750
Total Part VIO: 202297
Travel Length: 5.750
Upper Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Description: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
