Rancho / RS999919

Part #: RS999919
UPC: 039703001557

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Rancho Series: QuickLIFT Loaded Struts

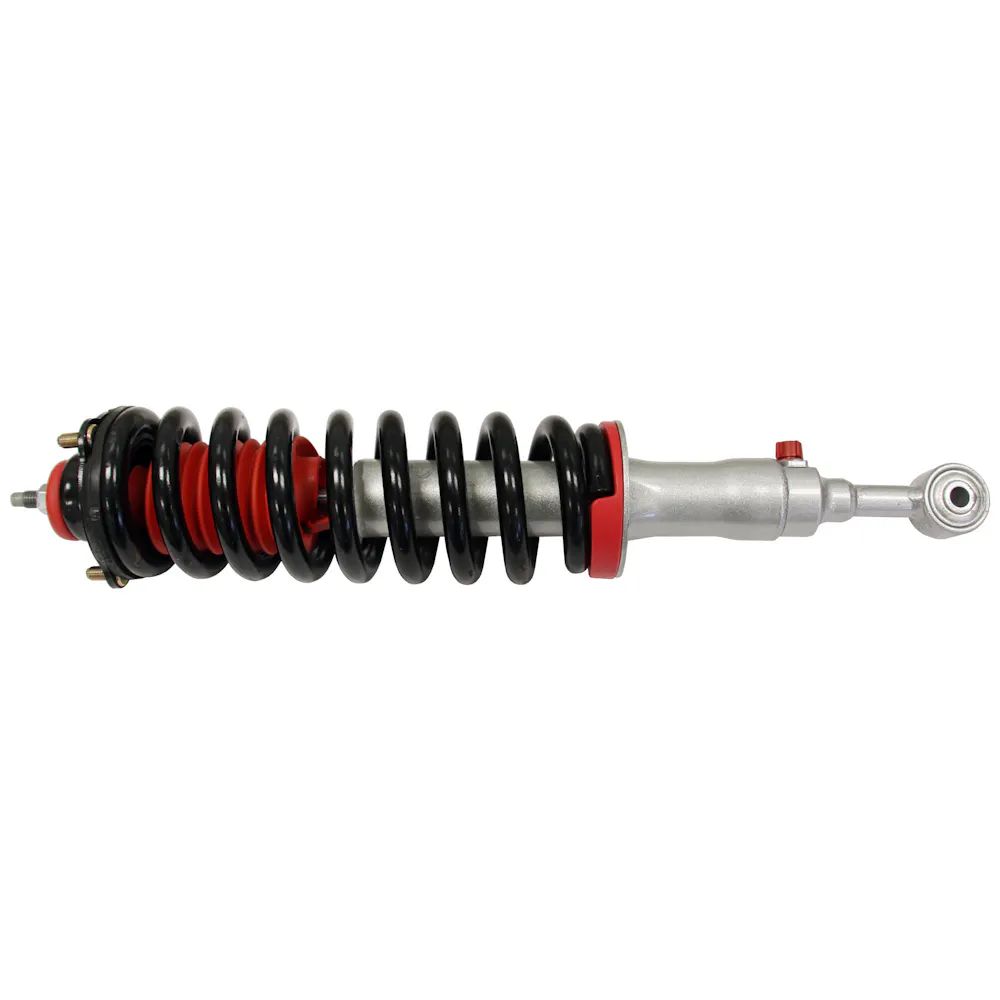

Description: QuickLIFT Suspension Strut and Coil Spring Assembly; Rancho QuickLIFT RS999919 Suspension Strut and Coil Spring Assembly for Toyota Tundra

This part number has been superseded by RS994919.

Description

An all-in-one solution, Rancho® quickLIFT™ loaded assemblies level and lift late model trucks and SUVs. This complete assembly simplifies installation, levels the front suspension and provides additional lift to accommodate larger wheels and tires.

Features & benefits

COMPLETE SOLUTION -- Levels and lifts late model trucks and SUVs without the cost of complete suspension system
EASY BOLT-ON INSTALLATION -- Complete assembly includes application-specific coil spring and upper mounting plate to simplify installation
LEVELS FRONT SUSPENSION -- Removes factory rake for an aggressive stance
INCREASED GROUND CLEARANCE -- Provides 2.25-in. of additional lift to accommodate up to 285x60x20 tires for a custom look and increased ground clearance (lift height varies depending upon application)
NINE LEVELS OF PERFORMANCE -- Includes RS9000™XL strut with nine-position easy-to-adjust knob to allow customized damping control and firmness for on-road and off-road flexibility
BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression and long-lasting premium liquid metallic finish and polyvinyl protective boot ensure long life
REDUCES FADE -- Nitrogen gas pressurized to 100 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application summary

Year	Make / model
2007-2021	Toyota Tundra

Specifications

GTIN: 00039703001557
Weight: 23.04 lb
Height: 29.38 in
Length: 6.75 in
Width: 5.75 in
Life cycle: Available to Order
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Body Diameter: 2
Body Length: 439.4
Body Length (in.): 17.300
Body Type: SS3
California Proposition 65: No
Collapsed Length: 17.880 in.
Collapsed Length (in.): 17.880
Compressed Bumper Stop: No
Compressed Length: 17.880
Dust Shield: Yes
Dust Shield Included: Yes
Extended Bumper Stop: Yes
Extended Hydraulic Lockout: No
Extended Length: 597.2
Extended Length (in.): 23.510 in.
Grade Type: Performance
Hydraulic Lockout: No
Internal Rebound Bumper: Yes
Lower Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Description: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Max Year Covered: 2020
Min Year Covered: 2007
Most Popular Make / Model: Toyota Tundra
Most Popular Make/Model: Toyota Tundra
Most Popular Year: 2007
Parts Pack: P01123
Parts Pack(s): P01123
Product Grade: Premium
Reserve Tube Diameter: 2
Shock Stroke: 5.630 in.
Shock Stroke (in.): 5.630
Total Part VIO: 904414
Travel Length: 5.630
Upper Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Description: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
