Rancho · RS999914

Rancho RS999914

Part #: RS999914
UPC: 039703001502

Loading...
Notify me when this item is in stock.

Brand: Rancho Series: QuickLIFT Loaded Struts
Log in to order

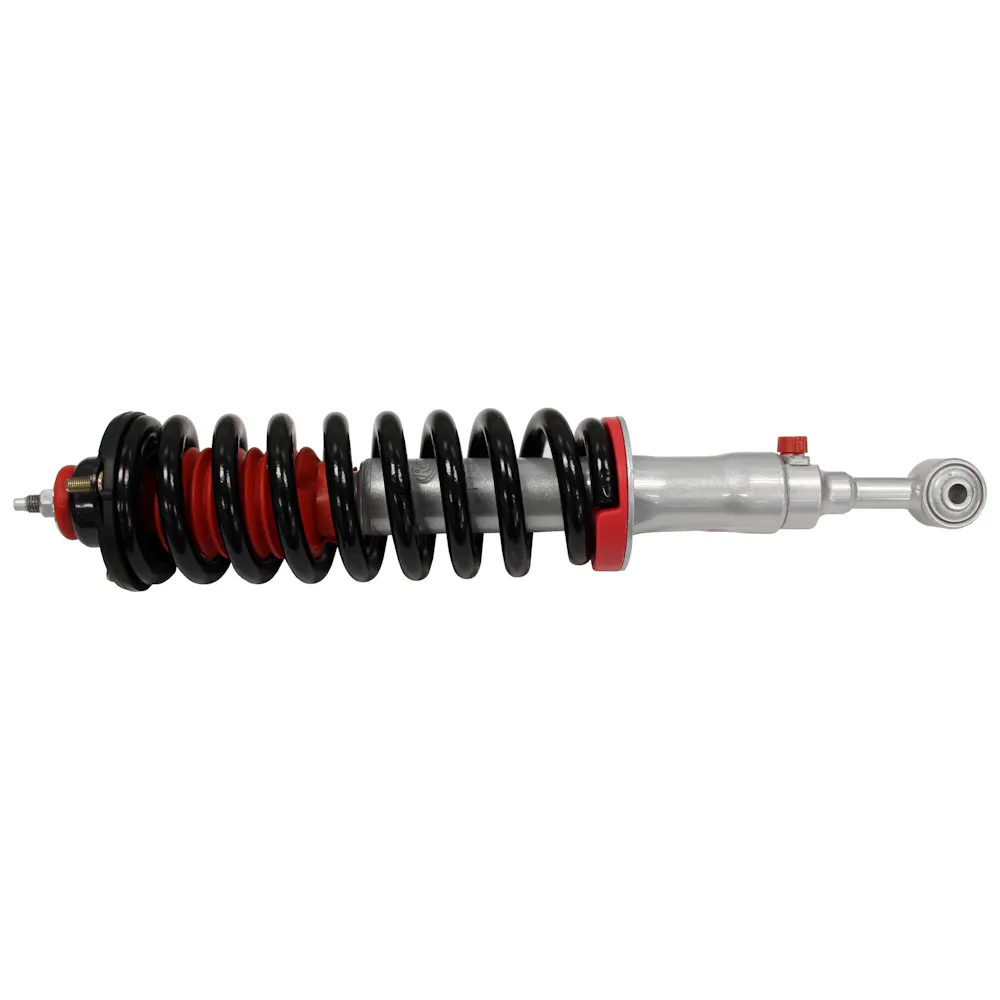

Description: QuickLIFT Suspension Strut and Coil Spring Assembly; Rancho QuickLIFT RS999914 Suspension Strut and Coil Spring Assembly for Toyota 4Runner

Description:

This part number has been superseded by RS994914.

Description

An all-in-one solution, Rancho® quickLIFT™ loaded assemblies level and lift late model trucks and SUVs. This complete assembly simplifies installation, levels the front suspension and provides additional lift to accommodate larger wheels and tires.

Features & benefits

  • COMPLETE SOLUTION -- Levels and lifts late model trucks and SUVs without the cost of complete suspension system
  • EASY BOLT-ON INSTALLATION -- Complete assembly includes application-specific coil spring and upper mounting plate to simplify installation
  • LEVELS FRONT SUSPENSION -- Removes factory rake for an aggressive stance
  • INCREASED GROUND CLEARANCE -- Provides 2-in. of additional lift to accommodate up to 285x70x17 tires for a custom look and increased ground clearance (lift height varies depending upon application)
  • NINE LEVELS OF PERFORMANCE -- Includes RS9000™XL strut with nine-position easy-to-adjust knob to allow customized damping control and firmness for on-road and off-road flexibility
  • BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression and long-lasting premium liquid metallic finish and polyvinyl protective boot ensure long life
  • REDUCES FADE -- Nitrogen gas pressurized to 100 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
  • BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application summary

Year Make / model
2003-2023 Toyota 4Runner
2007-2014 Toyota FJ Cruiser

Specifications

GTIN
00039703001502
Weight
22.15 lb
Height
29.38 in
Length
6.75 in
Width
5.75 in
Life cycle
Available to Order
AAM brand code
RAN
Warehouse brand code
RAN
AAIA brand code
BCKM

Attributes

Body Diameter
2
Body Length
16.63
Body Length (in.)
16.630
Body Type
SS3
California Proposition 65
No
Collapsed Length
17.130 in.
Collapsed Length (in.)
17.130
Compressed Bumper Stop
No
Compressed Length
17.130
Dust Shield
Yes
Dust Shield Included
Yes
Extended Bumper Stop
No
Extended Hydraulic Lockout
No
Extended Length
21.98
Extended Length (in.)
21.980 in.
Grade Type
Performance
Hydraulic Lockout
No
Internal Rebound Bumper
No
Lower Mount Type
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Description
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Max Year Covered
2019
Min Year Covered
2003
Most Popular Make / Model
Toyota 4Runner
Most Popular Make/Model
Toyota 4Runner
Most Popular Year
2007
Parts Pack
P01101
Parts Pack(s)
P01101
Product Grade
Premium
Reserve Tube Diameter
2
Shock Stroke
4.850 in.
Shock Stroke (in.)
4.850
Total Part VIO
1543540
Travel Length
4.850
Upper Mount Type
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Description
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2003-2023 Toyota 4Runner; 2007-2014 Toyota FJ Cruiser
