Rancho · RS999912

Part #: RS999912
UPC: 039703001489

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Rancho Series: QuickLIFT Loaded Struts

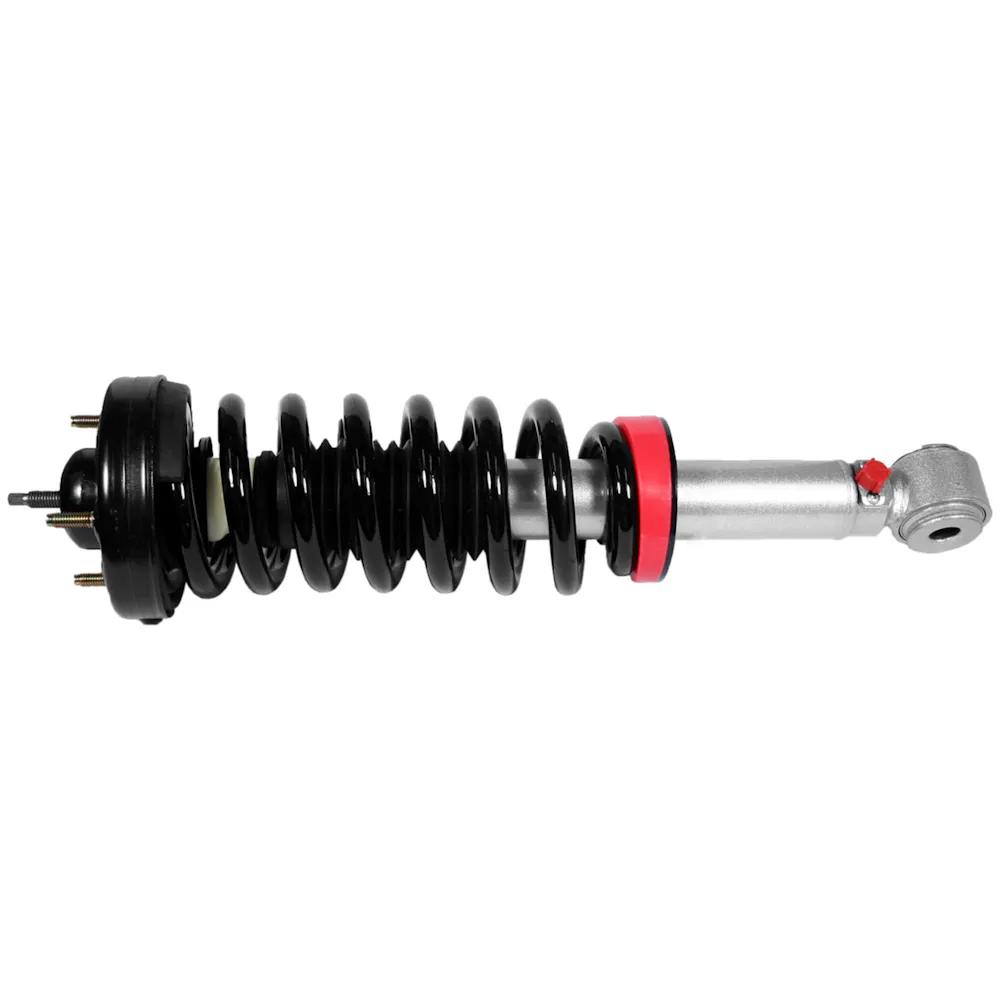

Description: QuickLIFT Suspension Strut and Coil Spring Assembly; Rancho QuickLIFT RS999912 Suspension Strut and Coil Spring Assembly for Ford F-150

This part number has been superseded by RS994912.

Description

An all-in-one solution, Rancho® quickLIFT™ loaded assemblies level and lift late model trucks and SUVs. This complete assembly simplifies installation, levels the front suspension and provides additional lift to accommodate larger wheels and tires.

Features & benefits

COMPLETE SOLUTION -- Levels and lifts late model trucks and SUVs without the cost of complete suspension system
EASY BOLT-ON INSTALLATION -- Complete assembly includes application-specific coil spring and upper mounting plate to simplify installation
LEVELS FRONT SUSPENSION -- Removes factory rake for an aggressive stance
INCREASED GROUND CLEARANCE -- Provides 1.75-in. of additional lift to accommodate up to 275x60x20 tires for a custom look and increased ground clearance (lift height varies depending upon application)
NINE LEVELS OF PERFORMANCE -- Includes RS9000™XL strut with nine-position easy-to-adjust knob to allow customized damping control and firmness for on-road and off-road flexibility
BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression and long-lasting premium liquid metallic finish and polyvinyl protective boot ensure long life
REDUCES FADE -- Nitrogen gas pressurized to 100 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application summary

Year	Make / model
2009-2013	Ford F-150

Specifications

GTIN: 00039703001489
Weight: 14 lb
Height: 29.38 in
Length: 7.75 in
Width: 6.75 in
Life cycle: Available to Order
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Body Diameter: 2.13
Body Length: 15.91
Body Length (in.): 15.910
Body Type: SS3
California Proposition 65: No
Collapsed Length: 16.410 in.
Collapsed Length (in.): 16.410
Compressed Bumper Stop: No
Compressed Length: 16.410
Dust Shield: Yes
Dust Shield Included: Yes
Extended Bumper Stop: No
Extended Hydraulic Lockout: No
Extended Length: 20.87
Extended Length (in.): 20.870 in.
Grade Type: Performance
Hydraulic Lockout: No
Internal Rebound Bumper: No
Lower Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Description: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Max Year Covered: 2013
Min Year Covered: 2009
Most Popular Make / Model: Ford F-150
Most Popular Make/Model: Ford F-150
Most Popular Year: 2013
Parts Pack: P01141
Parts Pack(s): P01141
Product Grade: Premium
Reserve Tube Diameter: 2.13
Shock Stroke: 4.460 in.
Shock Stroke (in.): 4.460
Total Part VIO: 733301
Travel Length: 4.460
Upper Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Description: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
