Rancho / RS999910

Part #: RS999910
UPC: 039703001441

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Rancho Series: QuickLIFT Loaded Struts

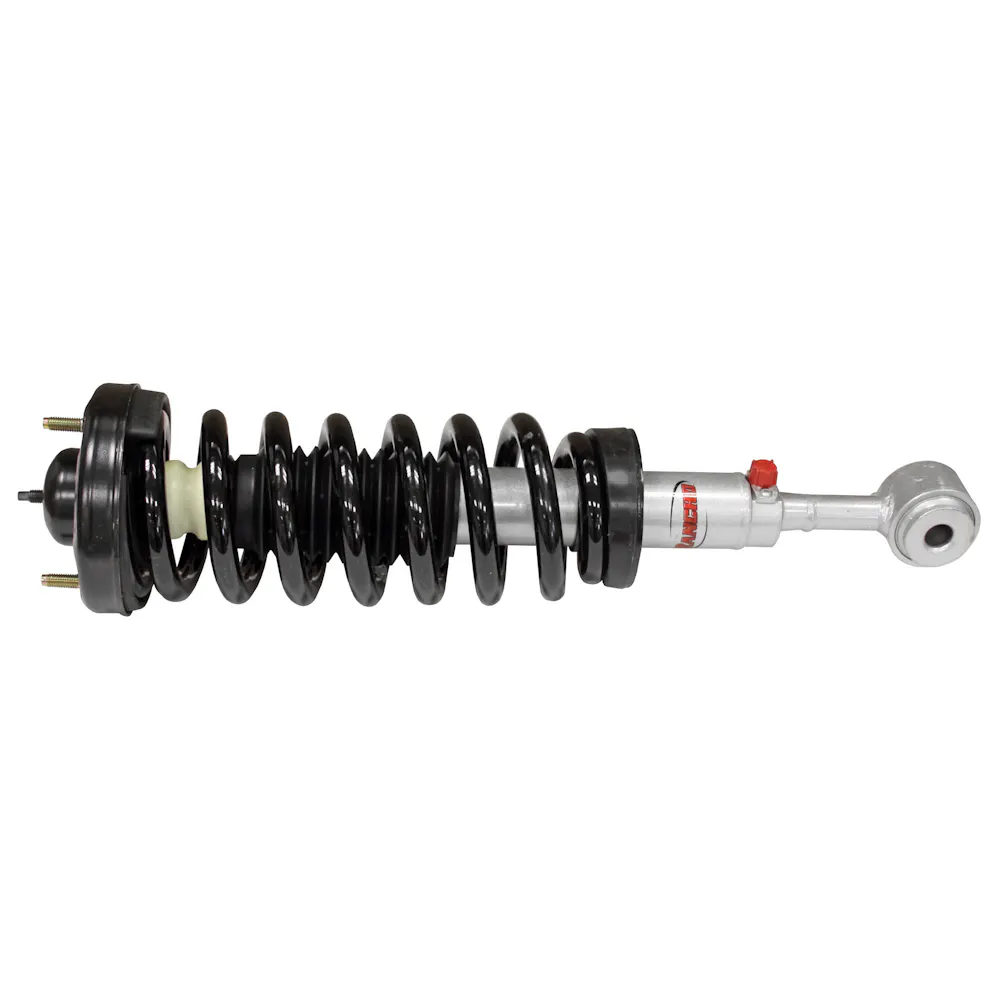

Description: QuickLIFT Suspension Strut and Coil Spring Assembly; Rancho QuickLIFT RS999910 Suspension Strut and Coil Spring Assembly for Ford F-150

This part number has been superseded by RS994910.

Description

An all-in-one solution, Rancho® quickLIFT™ loaded assemblies level and lift late model trucks and SUVs. This complete assembly simplifies installation, levels the front suspension and provides additional lift to accommodate larger wheels and tires.

Features & benefits

EASY BOLT-ON INSTALLATION -- Complete assembly includes application-specific coil spring and upper mounting plate to simplify installation
LEVELS FRONT SUSPENSION -- Removes factory rake for an aggressive stance
INCREASED GROUND CLEARANCE -- Provides 1.5 to 2.5-in. of additional lift to accommodate up to 285x60x20 tires for a custom look and increased ground clearance (lift height varies depending upon application)
NINE LEVELS OF PERFORMANCE -- Includes RS9000™XL strut with nine-position easy-to-adjust knob to allow customized damping control and firmness for on-road and off-road flexibility
BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression and long-lasting premium liquid metallic finish and polyvinyl protective boot ensure long life
REDUCES FADE -- Nitrogen gas pressurized to 100 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
COMPLETE SOLUTION -- Levels and lifts late model trucks and SUVs without the cost of complete suspension system

Application summary

Year	Make / model
2004-2008	Ford F-150
2006-2008	Lincoln Mark LT

Specifications

GTIN: 00039703001441
Weight: 30.88 lb
Height: 30.38 in
Length: 8.75 in
Width: 7.75 in
Life cycle: Available to Order
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Body Diameter: 2.13
Body Length: 16.69
Body Length (in.): 16.690
Body Type: SS3
California Proposition 65: No
Collapsed Length: 17.190 in.
Collapsed Length (in.): 17.190
Compressed Bumper Stop: No
Compressed Length: 17.190
Dust Shield: Yes
Dust Shield Included: Yes
Extended Bumper Stop: No
Extended Hydraulic Lockout: No
Extended Length: 564.1
Extended Length (in.): 22.210 in.
Grade Type: Performance
Hydraulic Lockout: No
Internal Rebound Bumper: No
Lower Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Description: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Max Year Covered: 2008
Min Year Covered: 2004
Most Popular Make / Model: Ford F-150
Most Popular Make/Model: Ford F-150
Most Popular Year: 2004
Parts Pack: P01141
Parts Pack(s): P01141
Product Grade: Premium
Reserve Tube Diameter: 2.13
Shock Stroke: 5.020 in.
Shock Stroke (in.): 5.020
Total Part VIO: 1177343
Travel Length: 5.020
Upper Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Description: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
