Rancho · RS999907

Part #: RS999907
UPC: 039703001458

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Rancho Series: QuickLIFT Loaded Struts

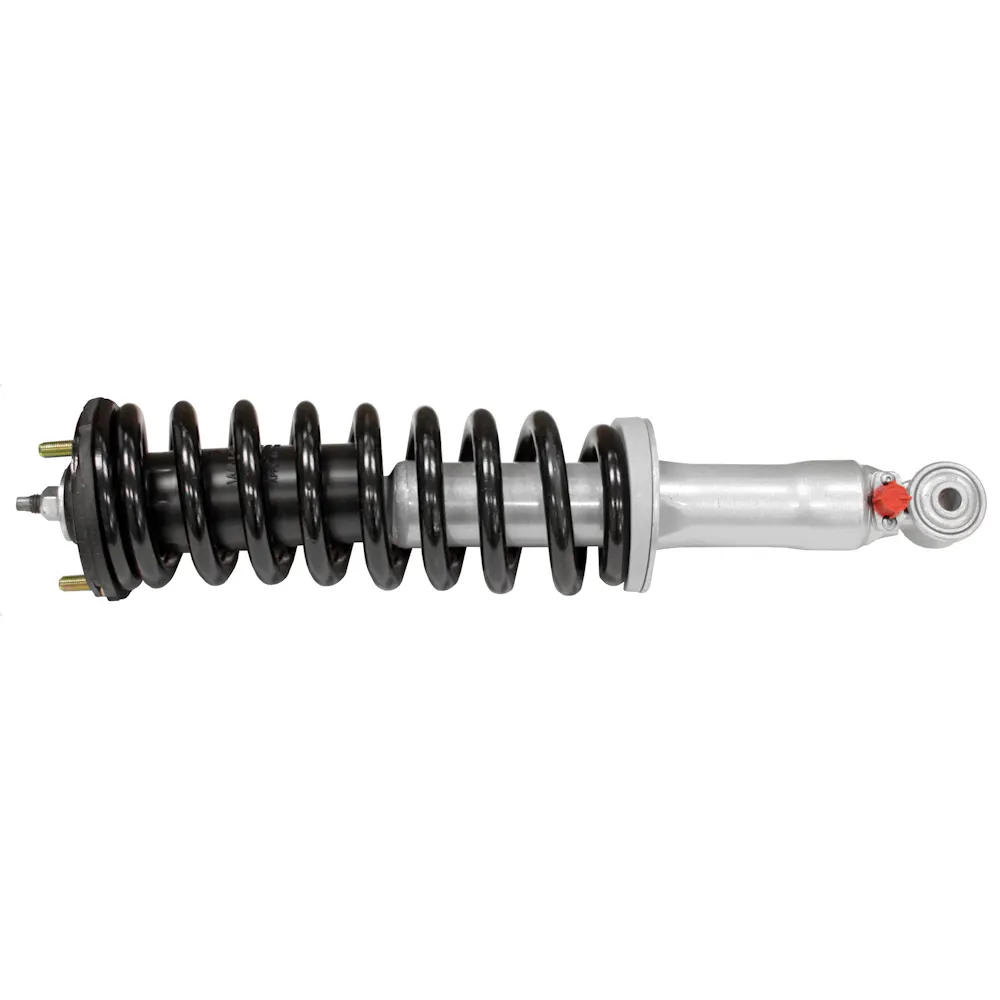

Description: QuickLIFT Suspension Strut and Coil Spring Assembly; Rancho QuickLIFT RS999907 Suspension Strut and Coil Spring Assembly for Toyota Tacoma

This part number has been superseded by RS994907.

Description

An all-in-one solution, Rancho® quickLIFT™ loaded assemblies level and lift late model trucks and SUVs. This complete assembly simplifies installation, levels the front suspension and provides additional lift to accommodate larger wheels and tires.

Features & benefits

COMPLETE SOLUTION -- Levels and lifts late model trucks and SUVs without the cost of complete suspension system
EASY BOLT-ON INSTALLATION -- Complete assembly includes application-specific coil spring and upper mounting plate to simplify installation
LEVELS FRONT SUSPENSION -- Removes factory rake for an aggressive stance
INCREASED GROUND CLEARANCE -- Provides 1.75-in. of additional lift to accommodate up to 275x70x17 tires for a custom look and increased ground clearance (lift height varies depending upon application)
NINE LEVELS OF PERFORMANCE -- Includes RS9000™XL strut with nine-position easy-to-adjust knob to allow customized damping control and firmness for on-road and off-road flexibility
BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression and long-lasting premium liquid metallic finish and polyvinyl protective boot ensure long life
REDUCES FADE -- Nitrogen gas pressurized to 100 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application summary

Year	Make / model
1995-2004	Toyota Tacoma

Specifications

GTIN: 00039703001458
Weight: 18.9 lb
Height: 24.38 in
Length: 6.75 in
Width: 5.75 in
Life cycle: Available to Order
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Body Diameter: 2
Body Length: 345.7
Body Length (in.): 13.610
Body Type: SS3
California Proposition 65: No
Collapsed Length: 14.110 in.
Collapsed Length (in.): 14.110
Compressed Bumper Stop: No
Compressed Length: 14.110
Dust Shield: Yes
Dust Shield Included: Yes
Extended Bumper Stop: No
Extended Hydraulic Lockout: No
Extended Length: 476.3
Extended Length (in.): 18.750 in.
Grade Type: Performance
Hydraulic Lockout: No
Internal Rebound Bumper: No
Lower Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Description: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Max Year Covered: 2004
Min Year Covered: 1995
Most Popular Make / Model: Toyota Tacoma
Most Popular Make/Model: Toyota Tacoma
Most Popular Year: 2004
Parts Pack: P01101
Parts Pack(s): P01101
Product Grade: Premium
Reserve Tube Diameter: 2
Shock Stroke: 4.640 in.
Shock Stroke (in.): 4.640
Total Part VIO: 616788
Travel Length: 4.640
Upper Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Description: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
