Rancho · RS999758

View More

Part #: RS999758
UPC: 039703097581

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Rancho Series: RS9000XL Shocks

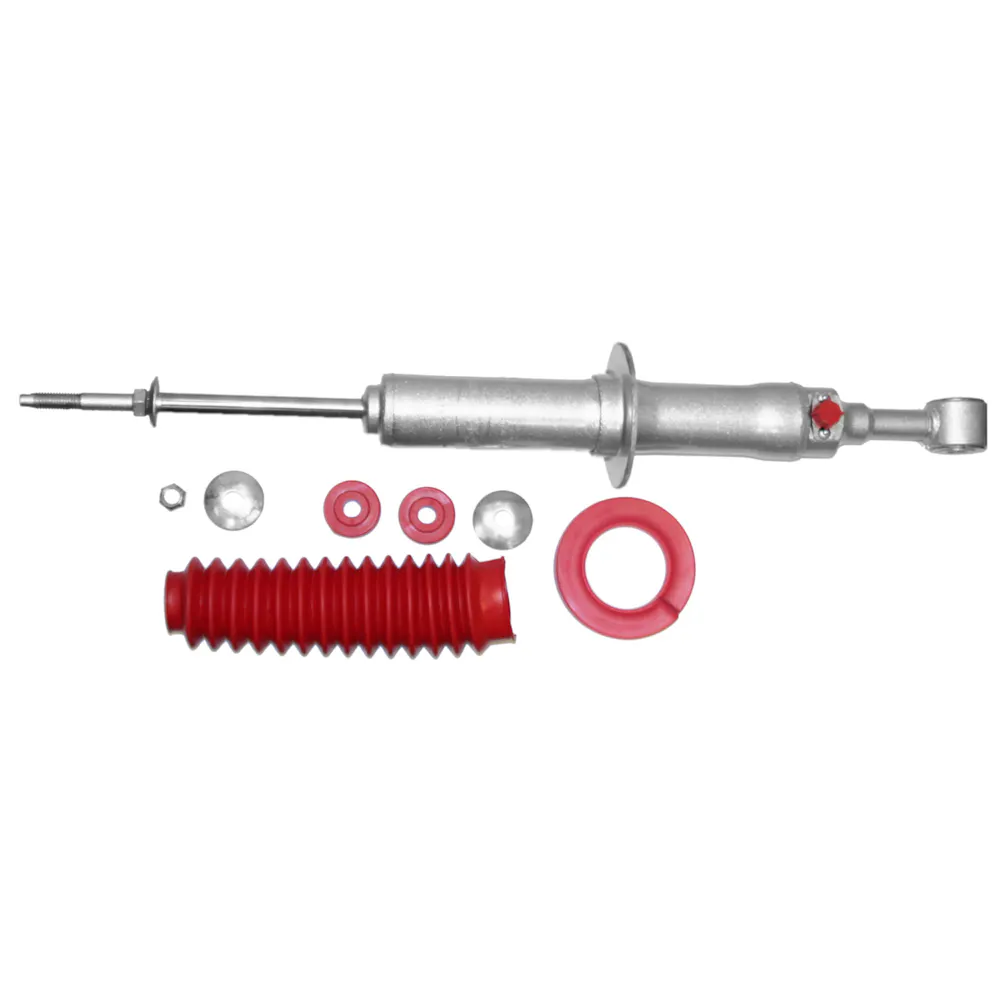

Description: RS9000XL Suspension Strut; Rancho RS9000XL RS999758 Suspension Strut for Toyota Tundra

This part number has been superseded by RS994758.

Description

Get premium control and performance with Rancho RS9000™XL struts. Recognized as the first nine-position manually adjustable ride control series in the off-road market, RS9000XL struts are ideal for on- and off-road use, towing and more.

Features & benefits

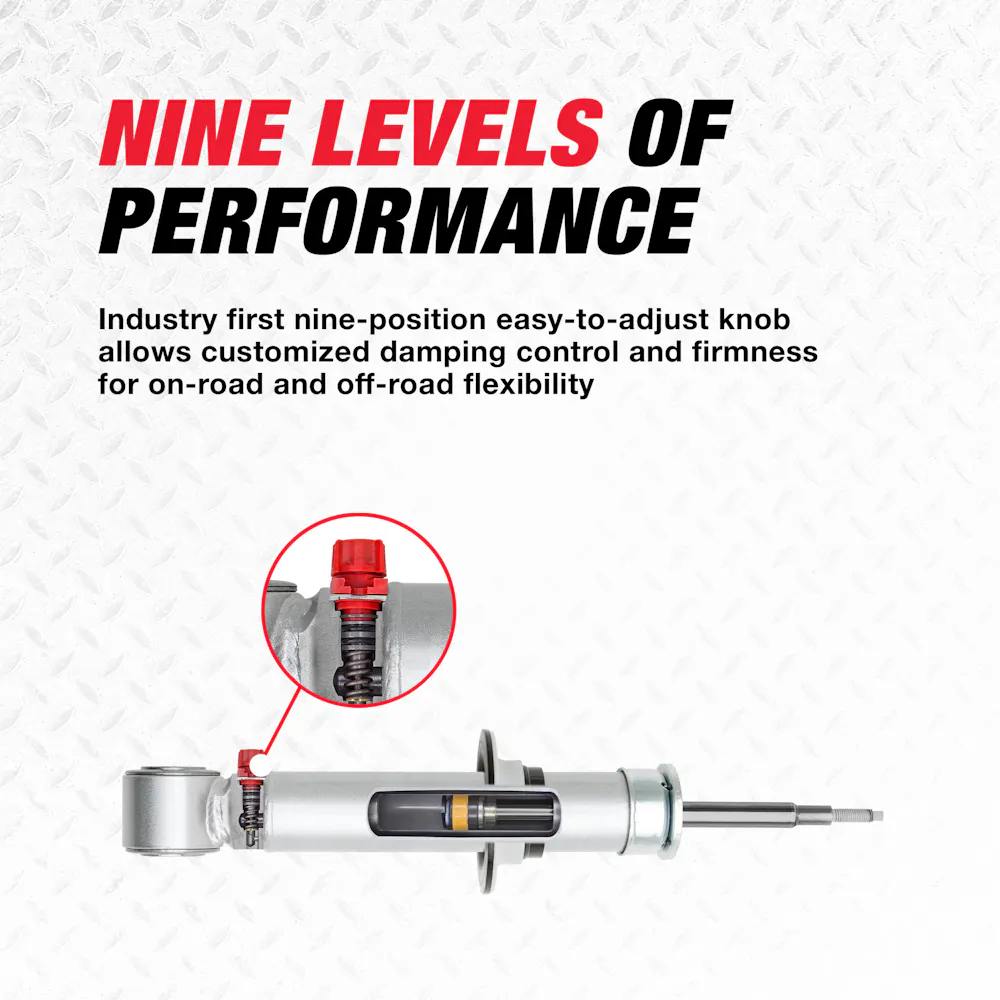

NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
INDUSTRY FIRST -- Recognized as the first nine-position manually adjustable shock series in the off-road market

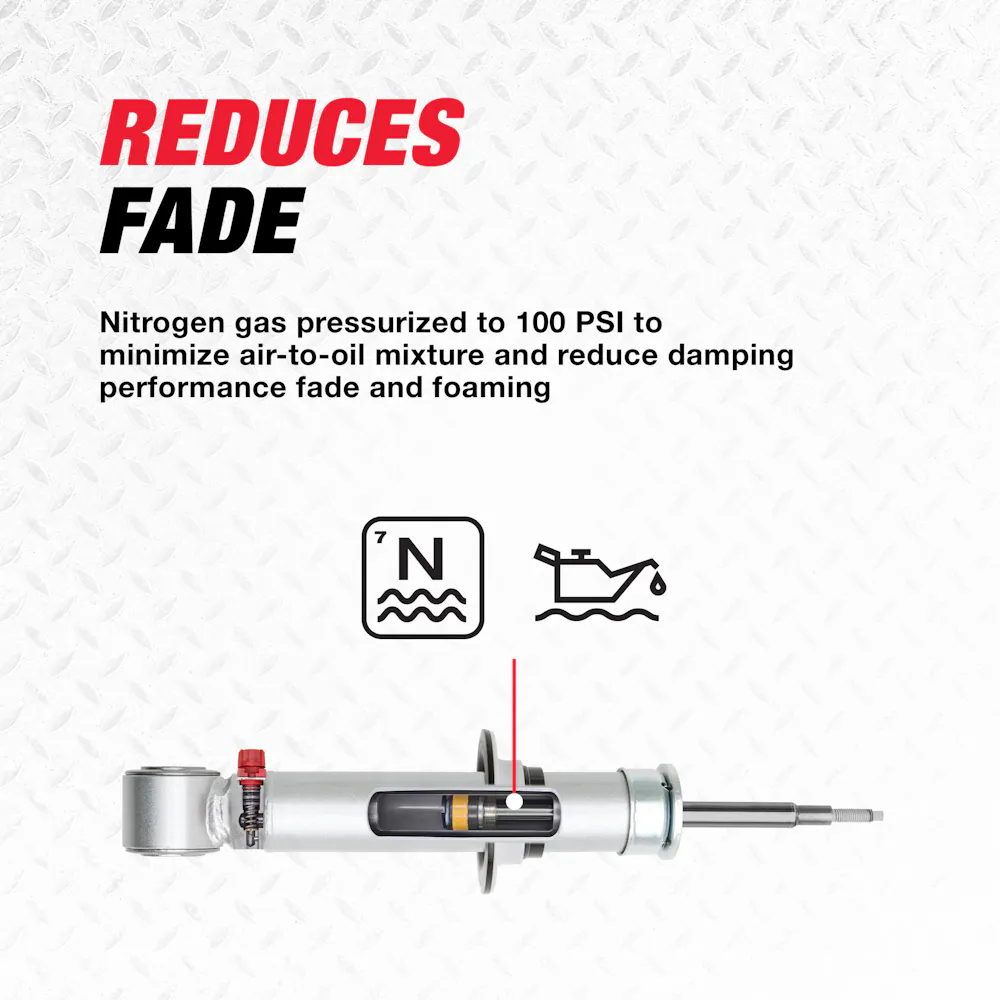

REDUCES FADE -- Nitrogen gas pressurized to 100 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming

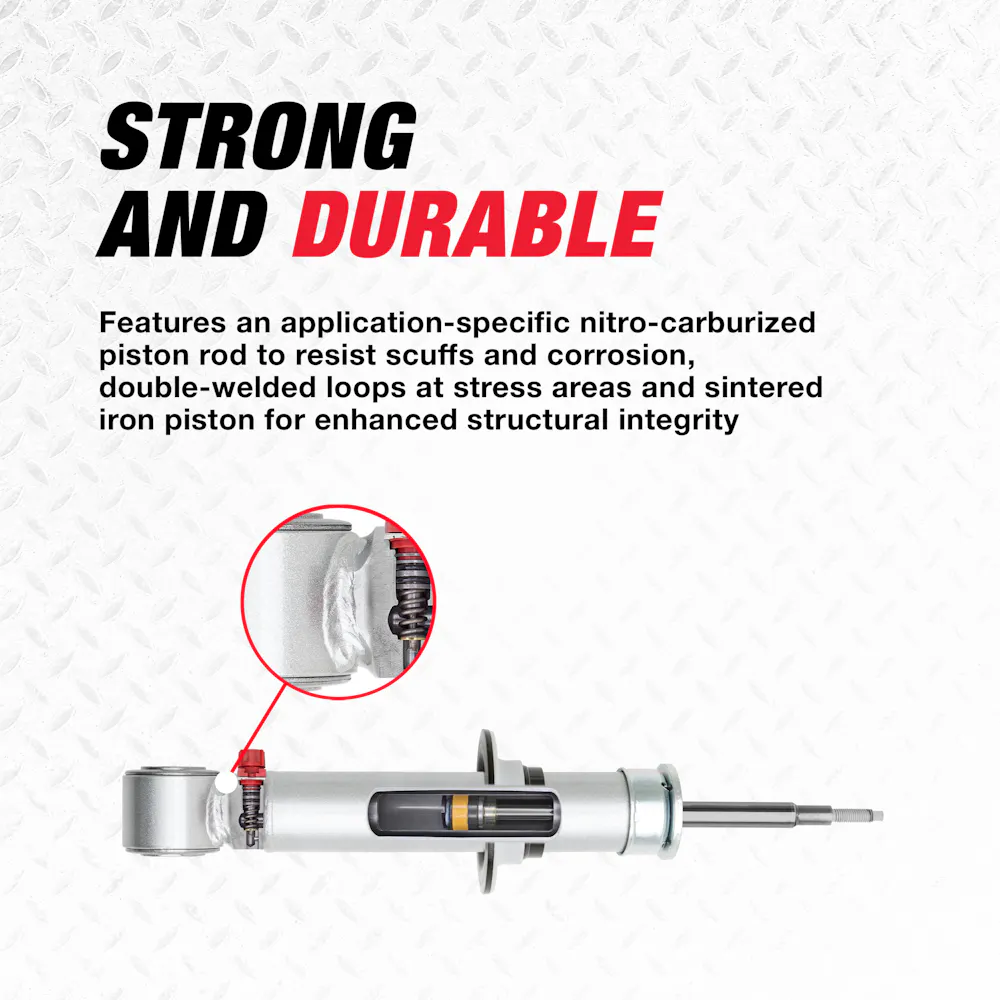

STRONG AND DURABLE -- Features an application-specific nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and sintered iron piston for enhanced structural integrity

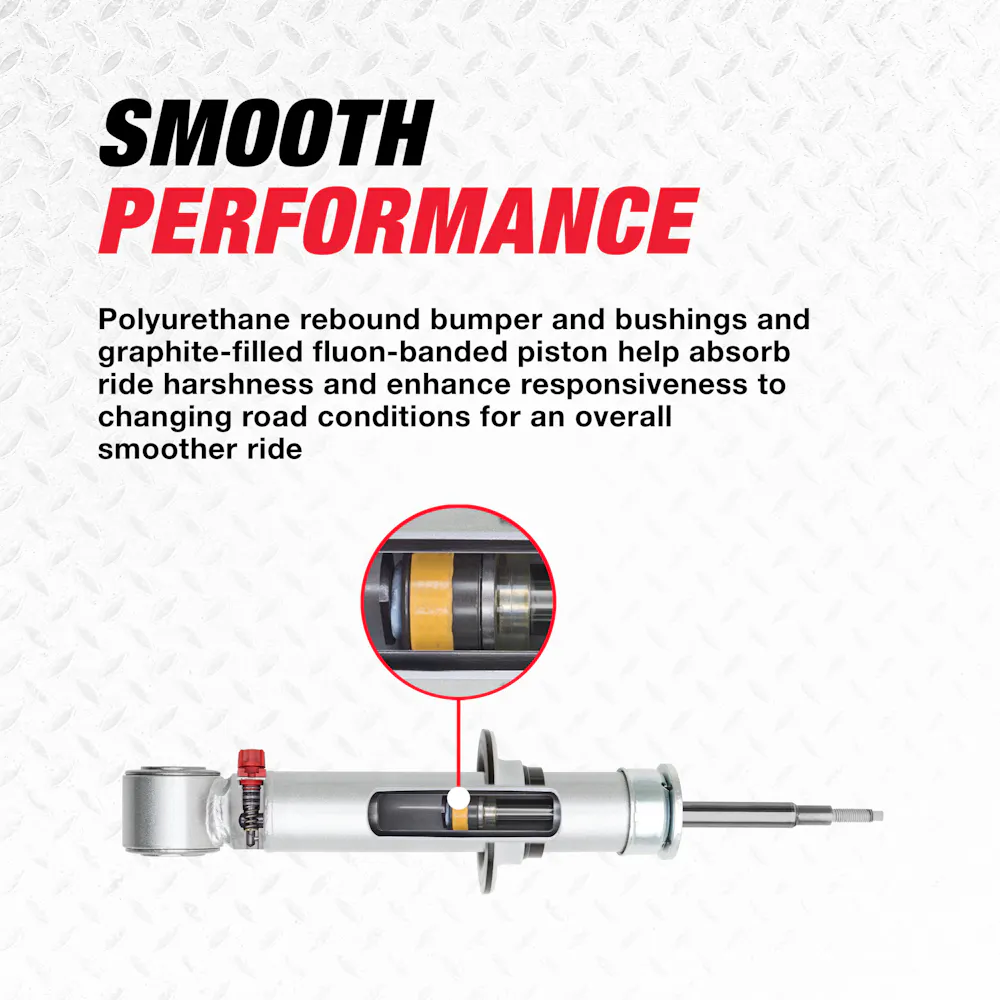

SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride

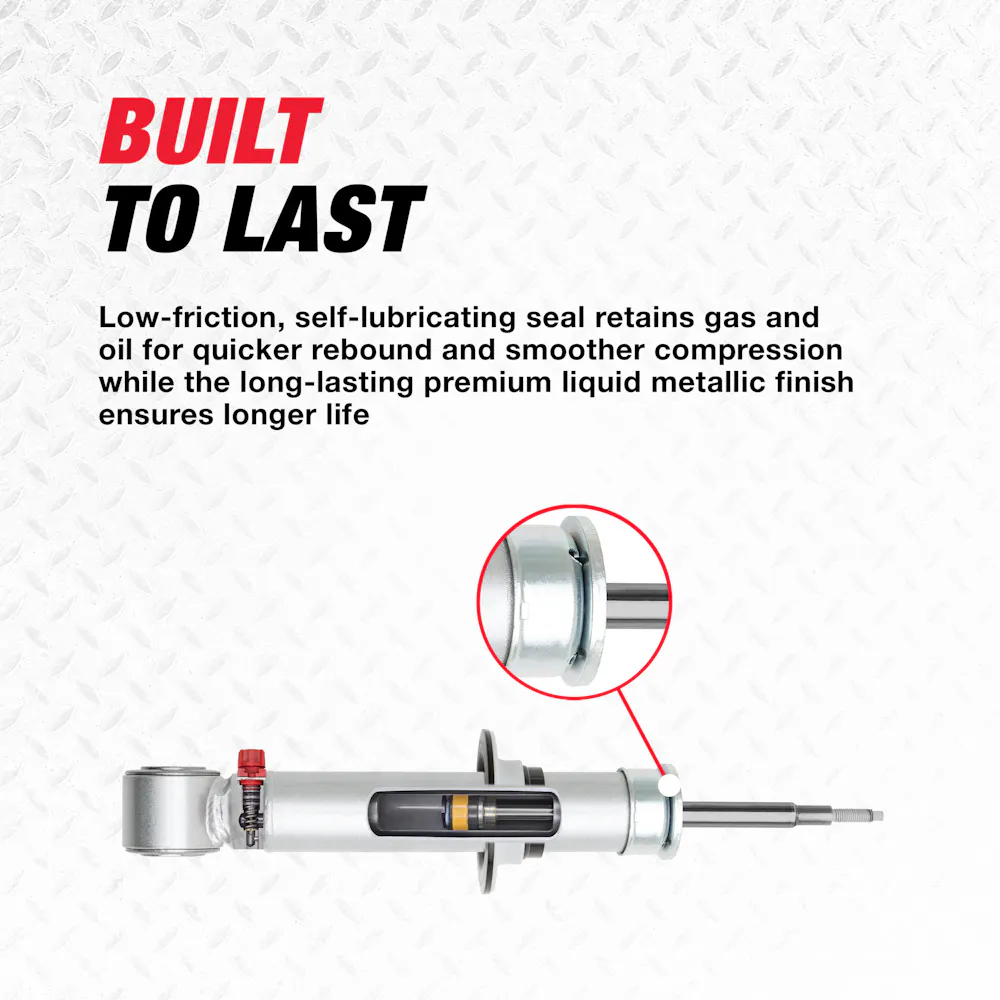

BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application summary

Year	Make / model
2007-2021	Toyota Tundra

Specifications

GTIN: 00039703097581
Weight: 9.3 lb
Height: 28 in
Length: 5.75 in
Width: 5.75 in
Life cycle: Available to Order
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Adjustable Dampening: Yes
Adjustable Damping: Yes
Body Diameter: 2
Body Length: 441.5
Body Length (in.): 17.380
Body Type: SS2
California Proposition 65: No
Collapsed Length: 17.880 in.
Collapsed Length (in.): 17.880
Compressed Bumper Stop: No
Compressed Length: 17.880
Cylinder Included: No
Dust Shield: Yes
Dust Shield Included: Yes
Extended Bumper Stop: Yes
Extended Hydraulic Lockout: No
Extended Length: 23.510 in.
Extended Length (in.): 23.510 in.
Finish: Painted
Fully Open Length: 23.510 in.
Grade Type: Performance
Hydraulic Lockout: No
Internal Construction Type: Tri Tube
Lower Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Description: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Max Year Covered: 2020
Min Year Covered: 2007
Most Popular Make / Model: Toyota Tundra
Most Popular Make/Model: Toyota Tundra
Most Popular Year: 2007
Parts Pack: P01613
Parts Pack(s): P01613
Product Grade: Premium
Reserve Tube Diameter: 2
Shock Stroke: 5.630 in.
Shock Stroke (in.): 5.630
Strut Charging Type: Gas Charged Unit - Strut Rod Will Extend Automatically
Total Part VIO: 1467766
Travel Length: 5.63
Upper Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Description: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
