Rancho · RS999327

Rancho RS999327

Part #: RS999327
UPC: 039703093279

Log in for inventory
Notify me when this item is in stock.

Brand: Rancho
Log in to order

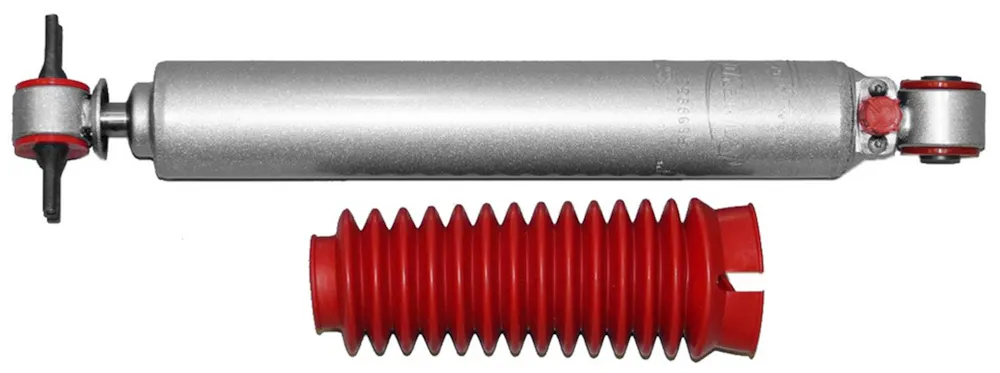

Description: RS9000XL Shock; Rancho RS999327 Shock Absorber

Description:

This part number has been superseded by RS999328.

Description

Rancho's new RS9000XL shock absorbers feature adjustable damping with either a 2.75- or 2.38-in. diameter reserve tube. This massive shock body allows the RS9000XL to run cooler and more consistent even under the most demanding towing conditions, enhancing performance and durability, and is constructed with a larger than typical 18-mm diameter chromed piston rod. Rancho RS9000XL shock series are engineered with nine position tuning technology that provides nine different levels of shock performance. These premium shocks also have polyurethane bushings that enhance shock performance and durability along with a boot that protects the shock rod and oil seal.

Features & benefits

  • 2.75-in. (70mm) body diameter (select applications) - Delivers both performance and appearance
  • Large 18mm Nitro Carb rod - strong and durable
  • 9-position tuning technology - Provides 9 different levels of shock performance
  • Nitrogen gas charged - Optimizes shock performance
  • Liquid metallic finish - Premium long lasting finish
  • Polyurethane bushings - Enhance shock performance and durability
  • Protective boot included - Added protection for the shock rod and oil seal
  • Limited Lifetime Warranty and 90-day free ride offer

Information

2.75in. Body Diameter (on select applications); 18mm Diameter Piston Rod (on select applications); Liquid Metallic Finish; Nitrogen Gas Charged; Limited Lifetime Warranty

Application summary

Year Make / model
2007-2010 Jeep Wrangler

Specifications

GTIN
00039703093279
Weight
6.1 lb
Height
3.31 in
Length
24.25 in
Width
4.31 in
EO
Legal US
Life cycle
Discontinued
AAM brand code
RAN
Warehouse brand code
RAN
AAIA brand code
BCKM

Attributes

Adjustable
No
Adjustable Damping
Yes
Adjustable Length
No
Body Diameter
2.188
California Proposition 65
No
Collapsed Length
13.960 in.
Collapsed Length (in.)
13.960
Compressed Bumper Stop
No
Compressed Length
13.96
Cylinder Included
No
Dust Shield
Yes
Dust Shield Included
Yes
Extended Bumper Stop
No
Extended Hydraulic Lockout
No
Extended Length
21.16
Extended Length (in.)
21.160 in.
Finish
Painted
Fully Open Length
21.160 in.
Lower Mount Code
LS39
Lower Mount Type
Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.5/8" Sleeve OAL
Lower Mounting Code
LS39
Lower Mounting Description
Loop Bushing & Sleeve Mount - 1/2" Sleeve ID X 1.5/8" Sleeve OAL
Max Year Covered
2010
Min Year Covered
2007
Most Popular Make / Model
Jeep Wrangler
Most Popular Make/Model
Jeep Wrangler
Most Popular Year
2008
Part Description
Shock Absorber
Parts Pack
None
Parts Pack(s)
None
Product Grade
Premium
Reserve Tube Diameter
2.188
Shock Stroke
7.200 in.
Shock Stroke (in.)
7.200
Total Part VIO
21253
Travel Length
7.2
Upper Mount Code
XP12
Upper Mount Type
Cross Pin Mount - Open Ended, 3/8" Hole ID (Both Ends) X 3.3/16" Pin Length (Hole Center to Center)
Upper Mounting Code
XP12
Upper Mounting Description
Cross Pin Mount - Open Ended, 3/8" Hole ID (Both Ends) X 3.3/16" Pin Length (Hole Center to Center)

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2007-2010 Jeep Wrangler
Retail View

Equivalent Parts

Rancho - RS999328
