Rancho · RS999317

Part #: RS999317
UPC: 039703093170

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Rancho Series: RS9000XL Shocks

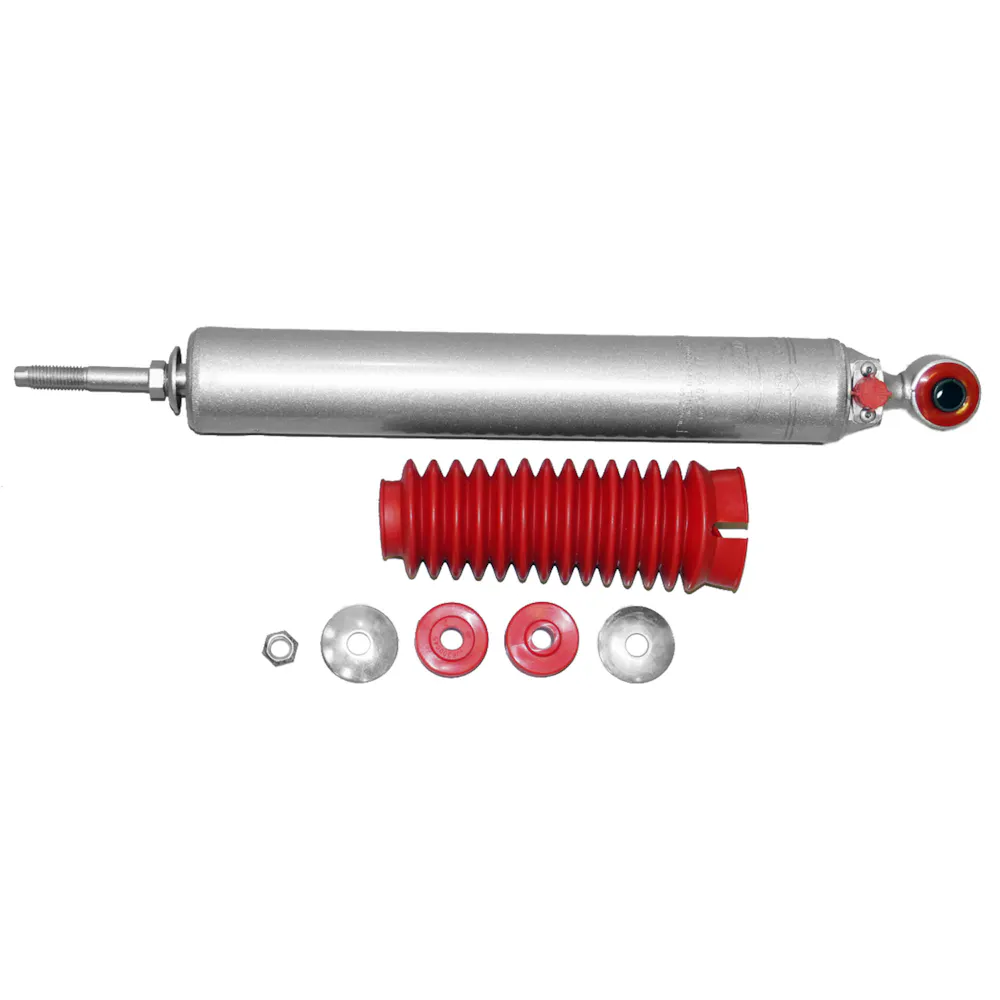

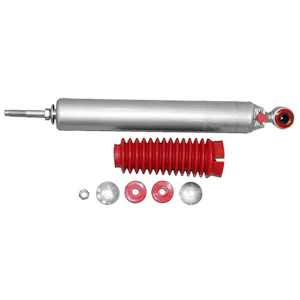

Description: RS9000XL Suspension Shock Absorber; Rancho RS9000XL RS999317 Suspension Shock Absorber for Dodge Ram 2500

This part number has been superseded by RS994317.

Description

Get premium control and performance with Rancho RS9000™XL shocks. Recognized as the first nine-position manually adjustable ride control series in the off-road market, RS9000XL shocks are ideal for on- and off-road use, towing and more.

Features & benefits

NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
INDUSTRY FIRST -- Recognized as the first nine-position manually adjustable shock series in the off-road market
REDUCES FADE -- Nitrogen gas pressurized to 120 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
STRONG AND DURABLE -- Features an application-specific 18mm nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and 1.25-in. sintered iron piston for enhanced structural integrity
HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application summary

Year	Make / model
2006-2008	Dodge Ram 1500
2003-2010	Dodge Ram 2500
2003-2010	Dodge Ram 3500
2011-2013	Ram 2500
2011-2013	Ram 3500

Specifications

GTIN: 00039703093170
Weight: 8.8 lb
Height: 24.25 in
Length: 3.31 in
Width: 3.31 in
Life cycle: Available to Order
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Adjustable: No
Adjustable Damping: Yes
Adjustable Length: No
Adjustable Rebound: Yes
Air Adjustable: No
Air Ride Suspension: No
Bearing Plate Included: No
Body Color: Silver
Body Diameter: 60.5
Body Material: Steel
Boot Included: Yes
California Proposition 65: No
Coil Over Springs Included: No
Collapsed Length: 18.040 in.
Collapsed Length (in.): 18.040
Color: Silver
Compressed Bumper Stop: No
Compressed Length: 458.2
Cylinder Color: Silver
Cylinder Included: No
Cylinder Material: Steel
Cylinder Outside Diameter: 60.5
Dust Shield: Yes
Dust Shield Color: Red
Dust Shield Included: Yes
Extended Bumper Stop: No
Extended Hydraulic Lockout: No
Extended Length: 730.8
Extended Length (in.): 28.770 in.
Finish: Painted
Fully Open Length: 28.770 in.
Gas Charged: Yes
Grade Type: Performance
Internal Construction Type: Tri Tube
Lower Mount Code: LS92
Lower Mount Type: Loop Bushing and Sleeve Mount - 14MM Sleeve ID X 1.11/16" Sleeve OAL
Lower Mounting Code: LS92
Lower Mounting Description: Loop Bushing & Sleeve Mount - 14MM Sleeve ID X 1.11/16" Sleeve OAL
Max Year Covered: 2013
Min Year Covered: 2003
Most Popular Make / Model: Dodge Ram 2500
Most Popular Make/Model: Dodge Ram 2500
Most Popular Year: 2006
Mounting Hardware Included: Yes
New Or Remanufactured: New
Part Description: Shock Absorber
Parts Pack: P01356
Parts Pack(s): P01356
Product Grade: Premium
Reserve Tube Diameter: 2.438
Rod Diameter: 18
Shaft Material: Nitrocarburized
Shock Absorber Body End Measuring Point: Base of Stem
Shock Absorber Rod End Measuring Point: Center of Loop
Shock Stroke: 272.5
Shock Stroke (in.): 10.730
Spring Included: No
Spring Isolators Included: No
Spring Seat Included: No
Total Part VIO: 937518
Travel Length: 272.5
Type: Telescopic
Upper Mount Code: S51
Upper Mount Type: Stem Mount - 2 5/8" Stem Length X 1/2"-13 Thread Pitch
Upper Mounting Code: S51
Upper Mounting Description: Stem Mount - 2.5/8 Stem Length x 1/2-13 Thread Pitch
