Rancho · RS999296

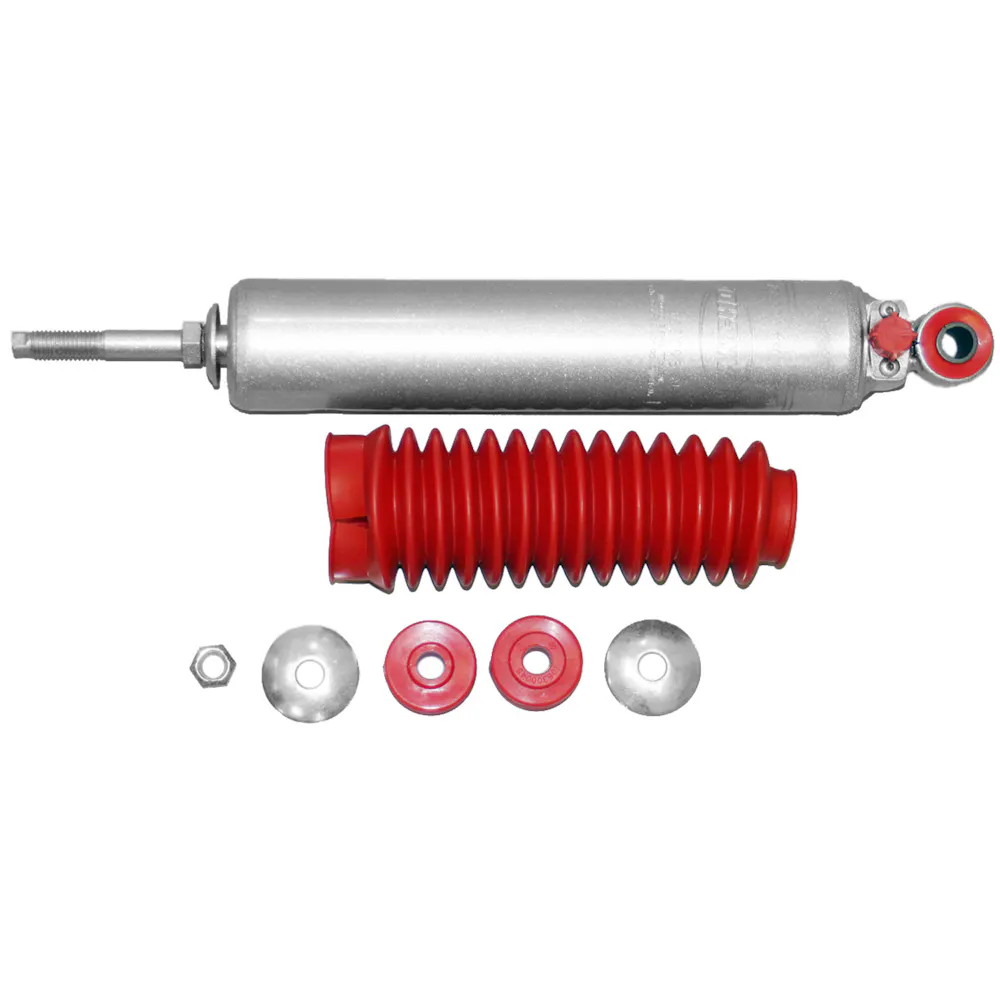

Rancho RS999296

Part #: RS999296
UPC: 039703092968

Log in for inventory
Notify me when this item is in stock.

Brand: Rancho Series: RS9000XL Shocks
Log in to order

Description: RS9000XL Suspension Shock Absorber; Rancho RS9000XL RS999296 Suspension Shock Absorber for Chevrolet Silverado 2500

Description:

This part number has been superseded by RS994296.

Description

Get premium control and performance with Rancho RS9000™XL shocks. Recognized as the first nine-position manually adjustable ride control series in the off-road market, RS9000XL shocks are ideal for on- and off-road use, towing and more.

Features & benefits

  • NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
  • DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
  • INDUSTRY FIRST -- Recognized as the first nine-position manually adjustable shock series in the off-road market
  • REDUCES FADE -- Nitrogen gas pressurized to 120 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
  • STRONG AND DURABLE -- Features an application-specific 18mm nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and 1.25-in. sintered iron piston for enhanced structural integrity
  • HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
  • SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
  • BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
  • BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application summary

Year Make / model
2002-2006 Chevrolet Avalanche 2500
2001-2003 Chevrolet Silverado 1500 HD
2005-2006 Chevrolet Silverado 1500 HD
2007 Chevrolet Silverado 1500 HD Classic
1999-2004 Chevrolet Silverado 2500
2000-2013 Chevrolet Suburban 2500
2001-2003 GMC Sierra 1500 HD
2005-2006 GMC Sierra 1500 HD
2007 GMC Sierra 1500 HD Classic
1999-2004 GMC Sierra 2500
2000-2013 GMC Yukon XL 2500

Specifications

GTIN
00039703092968
Weight
7.2 lb
Height
24.25 in
Length
3.31 in
Width
3.31 in
Life cycle
Available to Order
AAM brand code
RAN
Warehouse brand code
RAN
AAIA brand code
BCKM

Attributes

Adjustable
No
Adjustable Damping
Yes
Adjustable Length
No
Adjustable Rebound
Yes
Air Adjustable
No
Air Ride Suspension
No
Bearing Plate Included
No
Body Color
Silver
Body Diameter
60.5
Body Material
Steel
Boot Included
Yes
California Proposition 65
No
Coil Over Springs Included
No
Collapsed Length
13.920 in.
Collapsed Length (in.)
13.920
Color
Silver
Compressed Bumper Stop
No
Compressed Length
353.6
Cylinder Color
Silver
Cylinder Material
Steel
Cylinder Outside Diameter
60.5
Dust Shield
Yes
Dust Shield Color
Red
Dust Shield Included
Yes
Extended Bumper Stop
No
Extended Hydraulic Lockout
No
Extended Length
21.65
Extended Length (in.)
21.650 in.
Finish
Painted
Fully Open Length
21.650 in.
Gas Charged
Yes
Grade Type
Performance
Internal Construction Type
Tri Tube
Lower Mount Code
LS42
Lower Mount Type
Loop Bushing and Sleeve Mount - 14MM Sleeve ID X 1.5/16" Sleeve OAL
Lower Mounting Code
LS42
Lower Mounting Description
Loop Bushing & Sleeve Mount - 14MM Sleeve ID X 1.5/16" Sleeve OAL
Max Year Covered
2013
Min Year Covered
1999
Most Popular Make / Model
Chevrolet Silverado 2500
Most Popular Make/Model
Chevrolet Silverado 2500
Most Popular Year
2003
Mounting Hardware Included
Yes
New Or Remanufactured
New
Part Description
Shock Absorber
Parts Pack
P01356
Parts Pack(s)
P01356
Product Grade
Premium
Reserve Tube Diameter
2.38
Rod Diameter
18
Shaft Material
Nitrocarburized
Shock Absorber Body End Measuring Point
Base of Stem
Shock Absorber Rod End Measuring Point
Center of Loop
Shock Stroke
7.73
Shock Stroke (in.)
7.730
Spring Included
No
Spring Isolators Included
No
Spring Seat Included
No
Total Part VIO
373685
Travel Length
7.73
Type
Telescopic
Upper Mount Code
S51
Upper Mount Type
Stem Mount - 2 5/8" Stem Length X 1/2"-13 Thread Pitch
Upper Mounting Code
S51
Upper Mounting Description
Stem Mount - 2.5/8 Stem Length x 1/2-13 Thread Pitch

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2002-2006 Chevrolet Avalanche 2500; 2001-2003 Chevrolet Silverado 1500 HD; 2005-2006 Chevrolet Silverado 1500 HD; 2007 Chevrolet Silverado 1500 HD Classic; 1999-2004 Chevrolet Silverado 2500; 2000-2013 Chevrolet Suburban 2500; 2001-2003 GMC Sierra 1500 HD; 2005-2006 GMC Sierra 1500 HD; 2007 GMC Sierra 1500 HD Classic; 1999-2004 GMC Sierra 2500; 2000-2013 GMC Yukon XL 2500
