Rancho · RS999272
Part #: RS999272
UPC: 039703092722
Log in for inventory
Notify me when this item is in stock.
Description: RS9000XL Suspension Shock Absorber; Rancho RS9000XL RS999272 Suspension Shock Absorber for Ford F-250 Super Duty
Description:
This part number has been superseded by RS994272.
Description
Get premium control and performance with Rancho RS9000™XL shocks. Recognized as the first nine-position manually adjustable ride control series in the off-road market, RS9000XL shocks are ideal for on- and off-road use, towing and more.
Features & benefits
- NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
- DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
- INDUSTRY FIRST -- Recognized as the first nine-position manually adjustable shock series in the off-road market
- REDUCES FADE -- Nitrogen gas pressurized to 120 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
- STRONG AND DURABLE -- Features an application-specific 18mm nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and 1.25-in. sintered iron piston for enhanced structural integrity
- HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
Application summary
| Year | Make / model |
|---|---|
| 2008-2014 | Ford E-150 |
| 2008 | Ford E-150 Econoline |
| 2003-2006 | Ford E-250 |
| 1992-2002 | Ford E-250 Econoline |
| 2000-2005 | Ford Excursion |
| 1999-2026 | Ford F-250 Super Duty |
| 1999-2026 | Ford F-350 Super Duty |
Specifications
- GTIN
- 00039703092722
- Weight
- 5.2 lb
- Height
- 24.25 in
- Length
- 3.31 in
- Width
- 3.31 in
- Life cycle
- Available to Order
- AAM brand code
- RAN
- Warehouse brand code
- RAN
- AAIA brand code
- BCKM
Attributes
- Adjustable
- No
- Adjustable Damping
- Yes
- Adjustable Length
- No
- Adjustable Rebound
- Yes
- Air Adjustable
- No
- Air Ride Suspension
- No
- Bearing Plate Included
- No
- Body Color
- Silver
- Body Diameter
- 55.4
- Body Material
- Steel
- Boot Included
- Yes
- California Proposition 65
- No
- Coil Over Springs Included
- No
- Collapsed Length
- 10.640 in.
- Collapsed Length (in.)
- 10.640
- Color
- Silver
- Compressed Bumper Stop
- No
- Compressed Length
- 270.3
- Cylinder Color
- Silver
- Cylinder Included
- No
- Cylinder Material
- Steel
- Cylinder Outside Diameter
- 2.18
- Dust Shield
- Yes
- Dust Shield Color
- Red
- Dust Shield Included
- Yes
- Extended Bumper Stop
- No
- Extended Hydraulic Lockout
- No
- Extended Length
- 15.11
- Extended Length (in.)
- 15.110 in.
- Finish
- Painted
- Fully Open Length
- 15.110 in.
- Gas Charged
- Yes
- Grade Type
- Performance
- Internal Construction Type
- Tri Tube
- Lower Mount Code
- L1
- Lower Mount Type
- Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
- Lower Mounting Code
- L1
- Lower Mounting Description
- Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
- Max Year Covered
- 2020
- Min Year Covered
- 1999
- Most Popular Make / Model
- Ford F-250 Super Duty
- Most Popular Make/Model
- Ford F-250 Super Duty
- Most Popular Year
- 2017
- Mounting Hardware Included
- Yes
- New Or Remanufactured
- New
- Part Description
- Shock Absorber
- Parts Pack
- P01356
- Parts Pack(s)
- P01356
- Product Grade
- Premium
- Reserve Tube Diameter
- 2.18
- Rod Diameter
- 0.622
- Shaft Material
- Nitrocarburized
- Shock Absorber Body End Measuring Point
- Base of Stem
- Shock Absorber Rod End Measuring Point
- Center of Loop
- Shock Stroke
- 113.5
- Shock Stroke (in.)
- 4.470
- Spring Included
- No
- Spring Isolators Included
- No
- Spring Seat Included
- No
- Total Part VIO
- 912112
- Travel Length
- 4.47
- Type
- Telescopic
- Upper Mount Code
- S5
- Upper Mount Type
- Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch
- Upper Mounting Code
- S5
- Upper Mounting Description
- Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2008-2014 Ford E-150; 2008 Ford E-150 Econoline; 2003-2006 Ford E-250; 1992-2002 Ford E-250 Econoline; 2000-2005 Ford Excursion; 1999-2026 Ford F-250 Super Duty; 1999-2026 Ford F-350 Super Duty
Resources
- Brand logo
- Technical Drawing
- Installation Instructions
- Installation Instructions
- Logo Image
- Material Safety Data Sheet
- Material Safety Data Sheet
- Material Safety Data Sheet
- Material Safety Data Sheet
- Photo - Primary
- RS9000 XL Adjustable Shock Absorber | Rancho Suspension
- Rancho | How to Replace Knob on RS9000XL Adjustable Shock
- RS9000 XL Shock Settings Explained | Rancho Suspension
- Rancho® Performance Suspension & Shocks | RS9000®XL Shocks
- About Rancho®
- Your Adventure Starts with Off-Roading and Rancho
- Your Adventure Starts with Rancho
- Your Adventure Starts with Fishing and Rancho
- Your Adventure Starts with Paddleboarding and Rancho
- Your Adventure Starts with Mountain Biking and Rancho
- Your Adventure Starts with Hunting and Rancho
- Warranty

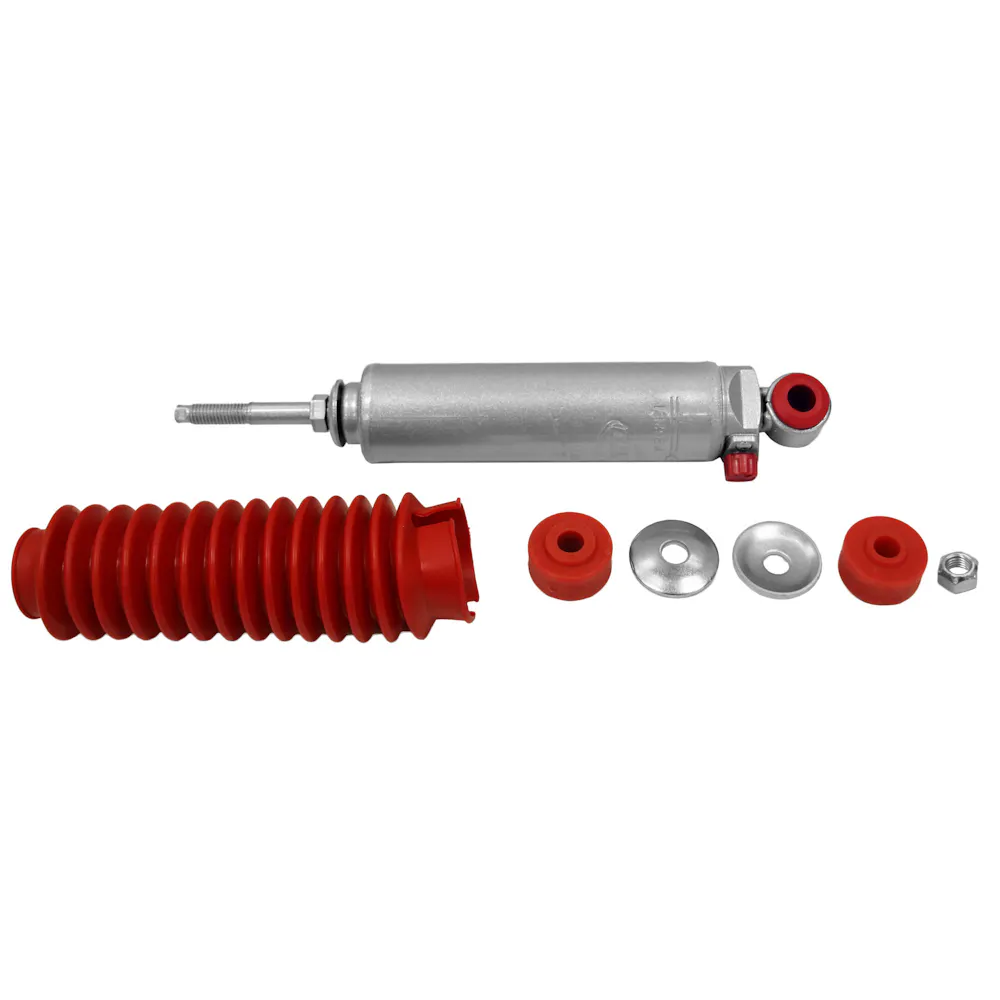

Rancho RS999272
