Rancho · RS999166

Rancho RS999166

Part #: RS999166
UPC: 039703091664

Log in for inventory
Notify me when this item is in stock.

Brand: Rancho Series: RS9000XL Shocks
Log in to order

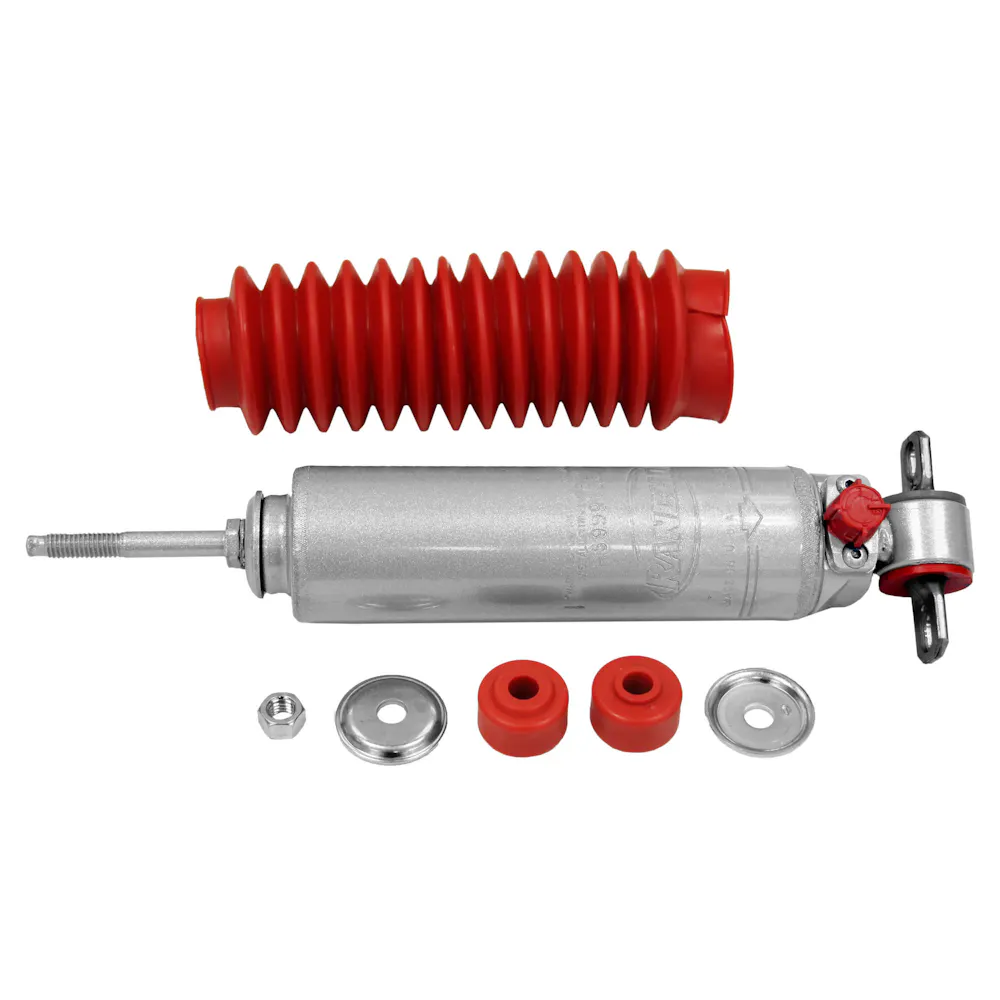

Description: RS9000XL Suspension Shock Absorber; Rancho RS9000XL RS999166 Suspension Shock Absorber for Chevrolet C1500

Description:

This part number has been superseded by RS994166.

Description

Get premium control and performance with Rancho RS9000™XL shocks. Recognized as the first nine-position manually adjustable ride control series in the off-road market, RS9000XL shocks are ideal for on- and off-road use, towing and more.

Features & benefits

  • NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
  • DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
  • INDUSTRY FIRST -- Recognized as the first nine-position manually adjustable shock series in the off-road market
  • REDUCES FADE -- Nitrogen gas pressurized to 120 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
  • STRONG AND DURABLE -- Features an application-specific 18mm nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and 1.25-in. sintered iron piston for enhanced structural integrity
  • HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
  • SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
  • BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
  • BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application summary

Year Make / model
1988-1999 Chevrolet C1500
1992-1999 Chevrolet C1500 Suburban
1988-2000 Chevrolet C2500
1992-1999 Chevrolet C2500 Suburban
1988-2000 Chevrolet C35
1988-2000 Chevrolet C3500
1995-2000 Chevrolet Tahoe
1988-1999 GMC C1500
1992-1999 GMC C1500 Suburban
1988-2000 GMC C2500
1992-1999 GMC C2500 Suburban
1988-2000 GMC C3500
1992-1999 GMC Yukon

Specifications

GTIN
00039703091664
Weight
4.85 lb
Height
24.25 in
Length
3.31 in
Width
4.31 in
Life cycle
Available to Order
AAM brand code
RAN
Warehouse brand code
RAN
AAIA brand code
BCKM

Attributes

Adjustable
No
Adjustable Damping
Yes
Adjustable Length
No
Adjustable Rebound
Yes
Air Adjustable
No
Air Ride Suspension
No
Bearing Plate Included
No
Body Color
Silver
Body Diameter
55.4
Body Material
Steel
Boot Included
Yes
California Proposition 65
No
Coil Over Springs Included
No
Collapsed Length
10.030 in.
Collapsed Length (in.)
10.030
Color
Silver
Compressed Bumper Stop
No
Compressed Length
10.03
Cylinder Color
Silver
Cylinder Included
No
Cylinder Material
Steel
Cylinder Outside Diameter
2.18
Dust Shield
Yes
Dust Shield Color
Red
Dust Shield Included
Yes
Extended Bumper Stop
No
Extended Hydraulic Lockout
No
Extended Length
350
Extended Length (in.)
13.780 in.
Finish
Painted
Fully Open Length
13.780 in.
Gas Charged
Yes
Grade Type
Performance
Internal Construction Type
Tri Tube
Lower Mount Code
XP5
Lower Mount Type
Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.1/2" Pin Length (Hole Center to Center)
Lower Mounting Code
XP5
Lower Mounting Description
Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.1/2" Pin Length (Hole Center to Center)
Max Year Covered
2000
Min Year Covered
1988
Most Popular Make / Model
Chevrolet C1500
Most Popular Make/Model
Chevrolet C1500
Most Popular Year
1997
Mounting Hardware Included
Yes
New Or Remanufactured
New
Part Description
Shock Absorber
Parts Pack
P01192
Parts Pack(s)
P01192
Product Grade
Premium
Reserve Tube Diameter
2.188
Rod Diameter
0.622
Shaft Material
Nitrocarburized
Shock Absorber Body End Measuring Point
Base of Stem
Shock Absorber Rod End Measuring Point
Center of Cross Pin
Shock Stroke
95.3
Shock Stroke (in.)
3.750
Spring Included
No
Spring Isolators Included
No
Spring Seat Included
No
Total Part VIO
2167557
Travel Length
3.750
Type
Telescopic
Upper Mount Code
S4
Upper Mount Type
Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Upper Mounting Code
S4
Upper Mounting Description
Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

1988-1999 Chevrolet C1500; 1992-1999 Chevrolet C1500 Suburban; 1988-2000 Chevrolet C2500; 1992-1999 Chevrolet C2500 Suburban; 1988-2000 Chevrolet C35; 1988-2000 Chevrolet C3500; 1995-2000 Chevrolet Tahoe; 1988-1999 GMC C1500; 1992-1999 GMC C1500 Suburban; 1988-2000 GMC C2500; 1992-1999 GMC C2500 Suburban; 1988-2000 GMC C3500; 1992-1999 GMC Yukon
