Rancho · RS999120

Part #: RS999120
UPC: 039703091206

Loading availability... Log in for inventory
Notify me when this item is in stock.

Brand: Rancho Series: RS9000XL Shocks

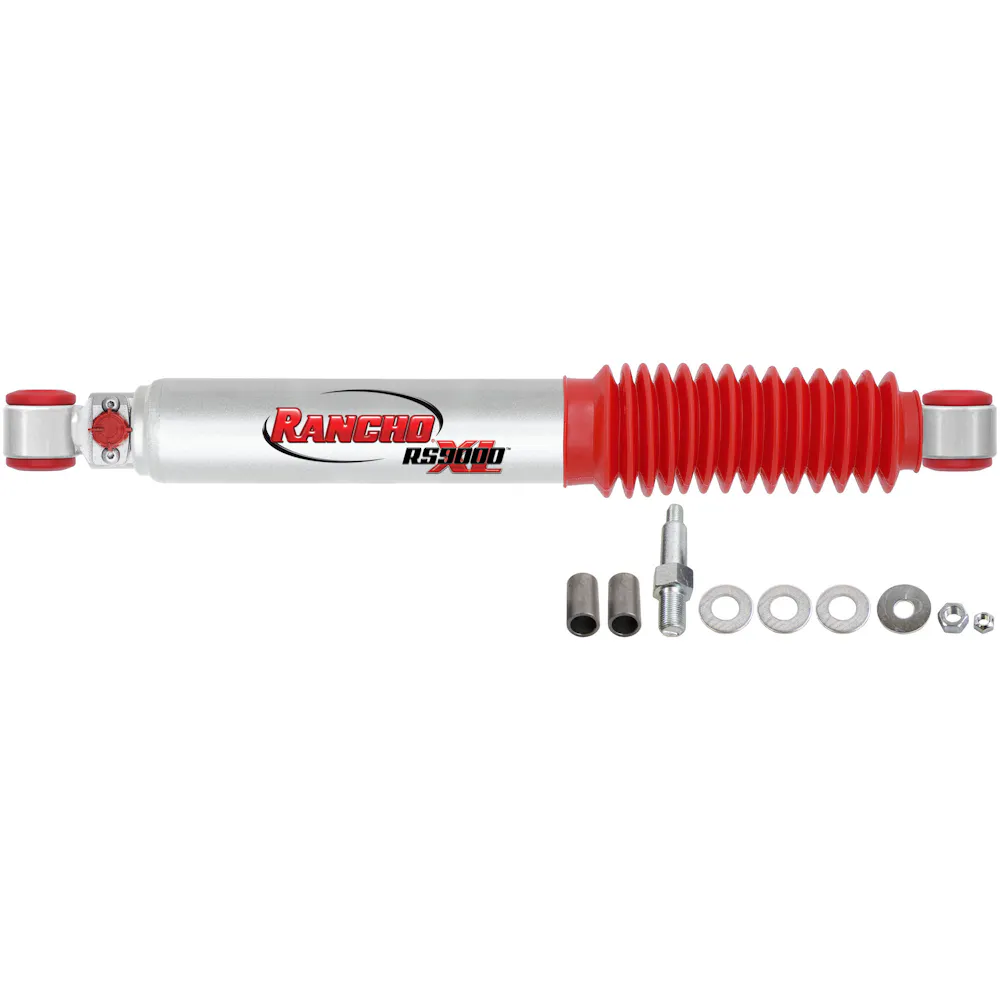

Description: RS9000XL Suspension Shock Absorber; Rancho RS9000XL RS999120 Suspension Shock Absorber for Chevrolet C10

Description:

This part number has been superseded by RS994120.

Description

Get premium control and performance with Rancho RS9000™XL shocks. Recognized as the first nine-position manually adjustable ride control series in the off-road market, RS9000XL shocks are ideal for on- and off-road use, towing and more.

Features & benefits

  • NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
  • DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
  • INDUSTRY FIRST -- Recognized as the first nine-position manually adjustable shock series in the off-road market
  • REDUCES FADE -- Nitrogen gas pressurized to 120 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
  • STRONG AND DURABLE -- Features an application-specific 18mm nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and 1.25-in. sintered iron piston for enhanced structural integrity
  • HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
  • SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
  • BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
  • BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Application summary

Year Make / model
1970-1974 Chevrolet Blazer
1975-1986 Chevrolet C10
1963-1974 Chevrolet C10 Pickup
1967-1986 Chevrolet C10 Suburban
1975-1986 Chevrolet C20
1963-1974 Chevrolet C20 Pickup
1967-1986 Chevrolet C20 Suburban
1975-1986 Chevrolet C30
1963-1974 Chevrolet C30 Pickup
1975-1995 Chevrolet G10
1970-1974 Chevrolet G10 Van
1975-1995 Chevrolet G20
1970-1974 Chevrolet G20 Van
1975-1995 Chevrolet G30
1970-1974 Chevrolet G30 Van
1975-1982 Chevrolet K5 Blazer
1987 Chevrolet R10
1987-1988 Chevrolet R10 Suburban
1989-1991 Chevrolet R1500 Suburban
1987-1988 Chevrolet R20
1987-1988 Chevrolet R20 Suburban
1989 Chevrolet R2500
1989-1991 Chevrolet R2500 Suburban
1987-1988 Chevrolet R30
1989-1991 Chevrolet R3500
1966 GMC 2500
1963-1965 GMC 2500 Series
1975-1978 GMC C15
1975-1978 GMC C15 Suburban
1967-1974 GMC C15/C1500 Pickup
1968-1974 GMC C15/C1500 Suburban
1979-1986 GMC C1500
1979-1986 GMC C1500 Suburban
1975-1978 GMC C25
1975-1978 GMC C25 Suburban
1967-1974 GMC C25/C2500 Pickup
1968-1974 GMC C25/C2500 Suburban
1979-1986 GMC C2500
1979-1986 GMC C2500 Suburban
1975-1978 GMC C35
1967-1974 GMC C35/C3500 Pickup
1979-1986 GMC C3500
1975-1978 GMC G15
1970-1974 GMC G15/G1500 Van
1979-1995 GMC G1500
1975-1978 GMC G25
1970-1974 GMC G25/G2500 Van
1979-1995 GMC G2500
1975-1978 GMC G35
1970-1974 GMC G35/G3500 Van
1979-1995 GMC G3500
1970-1982 GMC Jimmy
1987 GMC R1500
1987-1991 GMC R1500 Suburban
1987-1989 GMC R2500
1987-1991 GMC R2500 Suburban
1987-1991 GMC R3500
1963-1966 GMC Suburban
1975 Jeep Wagoneer

Specifications

GTIN
00039703091206
Weight
5.3 lb
Height
24.25 in
Length
3.31 in
Width
3.31 in
Life cycle
Available to Order
AAM brand code
RAN
Warehouse brand code
RAN
AAIA brand code
BCKM

Attributes

Adjustable
No
Adjustable Damping
Yes
Adjustable Length
No
Adjustable Rebound
Yes
Air Adjustable
No
Air Ride Suspension
No
Bearing Plate Included
No
Body Color
Silver
Body Diameter
55.4
Body Material
Steel
Boot Included
Yes
California Proposition 65
No
Coil Over Springs Included
No
Collapsed Length
9.980 in.
Collapsed Length (in.)
9.980
Color
Silver
Compressed Bumper Stop
No
Compressed Length
253.5
Cylinder Color
Silver
Cylinder Included
No
Cylinder Material
Steel
Cylinder Outside Diameter
2.18
Dust Shield
Yes
Dust Shield Color
Red
Dust Shield Included
Yes
Extended Bumper Stop
No
Extended Hydraulic Lockout
No
Extended Length
13.51
Extended Length (in.)
13.510 in.
Finish
Painted
Fully Open Length
13.510 in.
Gas Charged
Yes
Grade Type
Performance
Internal Construction Type
Tri Tube
Lower Mount Code
L1
Lower Mount Type
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Code
L1
Lower Mounting Description
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Max Year Covered
1995
Min Year Covered
1963
Most Popular Make / Model
Chevrolet C10
Most Popular Make/Model
Chevrolet C10
Most Popular Year
1986
Mounting Hardware Included
Yes
New Or Remanufactured
New
Part Description
Shock Absorber
Parts Pack
P00916,P00915
Parts Pack(s)
P00916,P00915
Product Grade
Premium
Reserve Tube Diameter
2.18
Rod Diameter
0.622
Shaft Material
Nitrocarburized
Shock Absorber Body End Measuring Point
Center of Loop
Shock Absorber Rod End Measuring Point
Center of Loop
Shock Stroke
3.53
Shock Stroke (in.)
3.530
Spring Included
No
Spring Isolators Included
No
Spring Seat Included
No
Total Part VIO
1229578
Travel Length
3.53
Type
Telescopic
Upper Mount Code
L1
Upper Mount Type
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Code
L1
Upper Mounting Description
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

1970-1974 Chevrolet Blazer; 1975-1986 Chevrolet C10; 1963-1974 Chevrolet C10 Pickup; 1967-1986 Chevrolet C10 Suburban; 1975-1986 Chevrolet C20; 1963-1974 Chevrolet C20 Pickup; 1967-1986 Chevrolet C20 Suburban; 1975-1986 Chevrolet C30; 1963-1974 Chevrolet C30 Pickup; 1975-1995 Chevrolet G10; 1970-1974 Chevrolet G10 Van; 1975-1995 Chevrolet G20; 1970-1974 Chevrolet G20 Van; 1975-1995 Chevrolet G30; 1970-1974 Chevrolet G30 Van; 1975-1982 Chevrolet K5 Blazer; 1987 Chevrolet R10; 1987-1988 Chevrolet R10 Suburban; 1989-1991 Chevrolet R1500 Suburban; 1987-1988 Chevrolet R20; 1987-1988 Chevrolet R20 Suburban; 1989 Chevrolet R2500; 1989-1991 Chevrolet R2500 Suburban; 1987-1988 Chevrolet R30; 1989-1991 Chevrolet R3500; 1966 GMC 2500; 1963-1965 GMC 2500 Series; 1975-1978 GMC C15; 1975-1978 GMC C15 Suburban; 1967-1974 GMC C15/C1500 Pickup; 1968-1974 GMC C15/C1500 Suburban; 1979-1986 GMC C1500; 1979-1986 GMC C1500 Suburban; 1975-1978 GMC C25; 1975-1978 GMC C25 Suburban; 1967-1974 GMC C25/C2500 Pickup; 1968-1974 GMC C25/C2500 Suburban; 1979-1986 GMC C2500; 1979-1986 GMC C2500 Suburban; 1975-1978 GMC C35; 1967-1974 GMC C35/C3500 Pickup; 1979-1986 GMC C3500; 1975-1978 GMC G15; 1970-1974 GMC G15/G1500 Van; 1979-1995 GMC G1500; 1975-1978 GMC G25; 1970-1974 GMC G25/G2500 Van; 1979-1995 GMC G2500; 1975-1978 GMC G35; 1970-1974 GMC G35/G3500 Van; 1979-1995 GMC G3500; 1970-1982 GMC Jimmy; 1987 GMC R1500; 1987-1991 GMC R1500 Suburban; 1987-1989 GMC R2500; 1987-1991 GMC R2500 Suburban; 1987-1991 GMC R3500; 1963-1966 GMC Suburban; 1975 Jeep Wagoneer
