Rancho · RS999039
Part #: RS999039
UPC: 039703090391
Log in for inventory
Notify me when this item is in stock.

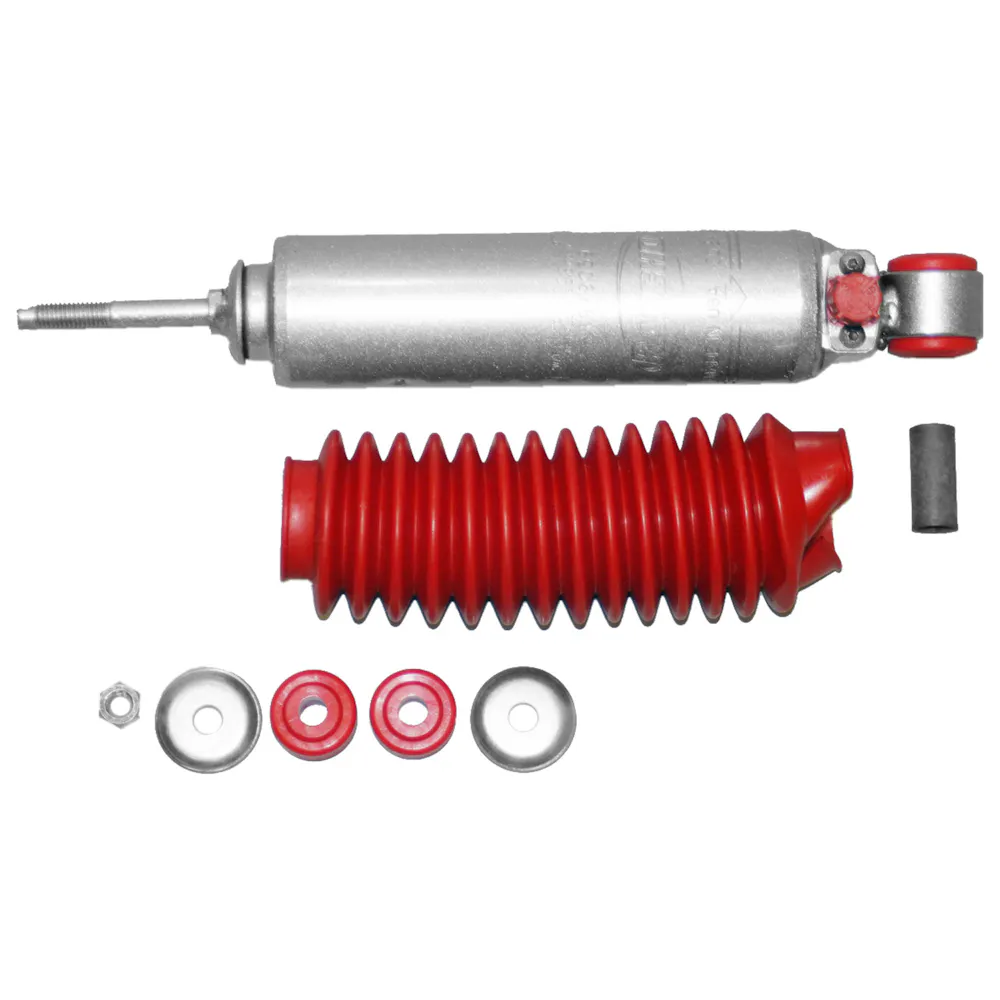

Description: RS9000XL Suspension Shock Absorber; Rancho RS9000XL RS999039 Suspension Shock Absorber for Ford Ranger
Description:
This part number has been superseded by RS994039.
Description
Get premium control and performance with Rancho RS9000™XL shocks. Recognized as the first nine-position manually adjustable ride control series in the off-road market, RS9000XL shocks are ideal for on- and off-road use, towing and more.
Features & benefits
- NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
- DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
- INDUSTRY FIRST -- Recognized as the first nine-position manually adjustable shock series in the off-road market
- REDUCES FADE -- Nitrogen gas pressurized to 120 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
- STRONG AND DURABLE -- Features an application-specific 18mm nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and 1.25-in. sintered iron piston for enhanced structural integrity
- HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
Application summary
| Year | Make / model |
|---|---|
| 1984-1990 | Ford Bronco II |
| 1975-1983 | Ford E-100 Econoline |
| 1975-1983 | Ford E-100 Econoline Club Wagon |
| 1975-1991 | Ford E-150 Econoline |
| 1975-1991 | Ford E-150 Econoline Club Wagon |
| 1991-1994 | Ford Explorer |
| 1983-1997 | Ford Ranger |
| 1986-1987 | Mazda B2000 |
| 1987-1993 | Mazda B2200 |
| 1994-1997 | Mazda B2300 |
| 1987-1993 | Mazda B2600 |
| 1994-1997 | Mazda B3000 |
| 1994-1997 | Mazda B4000 |
| 1991-1994 | Mazda Navajo |
Specifications
- GTIN
- 00039703090391
- Weight
- 4.9 lb
- Height
- 24.25 in
- Length
- 3.31 in
- Width
- 3.31 in
- Life cycle
- Available to Order
- AAM brand code
- RAN
- Warehouse brand code
- RAN
- AAIA brand code
- BCKM
Attributes
- Adjustable
- No
- Adjustable Damping
- Yes
- Adjustable Length
- No
- Adjustable Rebound
- Yes
- Air Adjustable
- No
- Air Ride Suspension
- No
- Bearing Plate Included
- No
- Body Color
- Silver
- Body Diameter
- 55.4
- Body Material
- Steel
- Boot Included
- Yes
- California Proposition 65
- No
- Coil Over Springs Included
- No
- Collapsed Length
- 10.390 in.
- Collapsed Length (in.)
- 10.390
- Color
- Silver
- Compressed Bumper Stop
- No
- Compressed Length
- 263.9
- Cylinder Color
- Silver
- Cylinder Included
- No
- Cylinder Material
- Steel
- Cylinder Outside Diameter
- 2.18
- Dust Shield
- Yes
- Dust Shield Color
- Red
- Dust Shield Included
- Yes
- Extended Bumper Stop
- No
- Extended Hydraulic Lockout
- No
- Extended Length
- 14.55
- Extended Length (in.)
- 14.550 in.
- Finish
- Painted
- Fully Open Length
- 14.550 in.
- Gas Charged
- Yes
- Grade Type
- Performance
- Internal Construction Type
- Tri Tube
- Lower Mount Code
- L1
- Lower Mount Type
- Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
- Lower Mounting Code
- L1
- Lower Mounting Description
- Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
- Max Year Covered
- 1997
- Min Year Covered
- 1975
- Most Popular Make / Model
- Ford Ranger
- Most Popular Make/Model
- Ford Ranger
- Most Popular Year
- 1994
- Mounting Hardware Included
- Yes
- New Or Remanufactured
- New
- Part Description
- Shock Absorber
- Parts Pack
- P01192,P01013
- Parts Pack(s)
- P01192,P01013
- Product Grade
- Premium
- Reserve Tube Diameter
- 2.18
- Rod Diameter
- 0.622
- Shaft Material
- Nitrocarburized
- Shock Absorber Body End Measuring Point
- Base of Stem
- Shock Absorber Rod End Measuring Point
- Center of Loop
- Shock Stroke
- 4.16
- Shock Stroke (in.)
- 4.160
- Spring Included
- No
- Spring Isolators Included
- No
- Spring Seat Included
- No
- Total Part VIO
- 1110242
- Travel Length
- 4.16
- Type
- Telescopic
- Upper Mount Code
- S4
- Upper Mount Type
- Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
- Upper Mounting Code
- S4
- Upper Mounting Description
- Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1984-1990 Ford Bronco II; 1975-1983 Ford E-100 Econoline; 1975-1983 Ford E-100 Econoline Club Wagon; 1975-1991 Ford E-150 Econoline; 1975-1991 Ford E-150 Econoline Club Wagon; 1991-1994 Ford Explorer; 1983-1997 Ford Ranger; 1986-1987 Mazda B2000; 1987-1993 Mazda B2200; 1994-1997 Mazda B2300; 1987-1993 Mazda B2600; 1994-1997 Mazda B3000; 1994-1997 Mazda B4000; 1991-1994 Mazda Navajo
