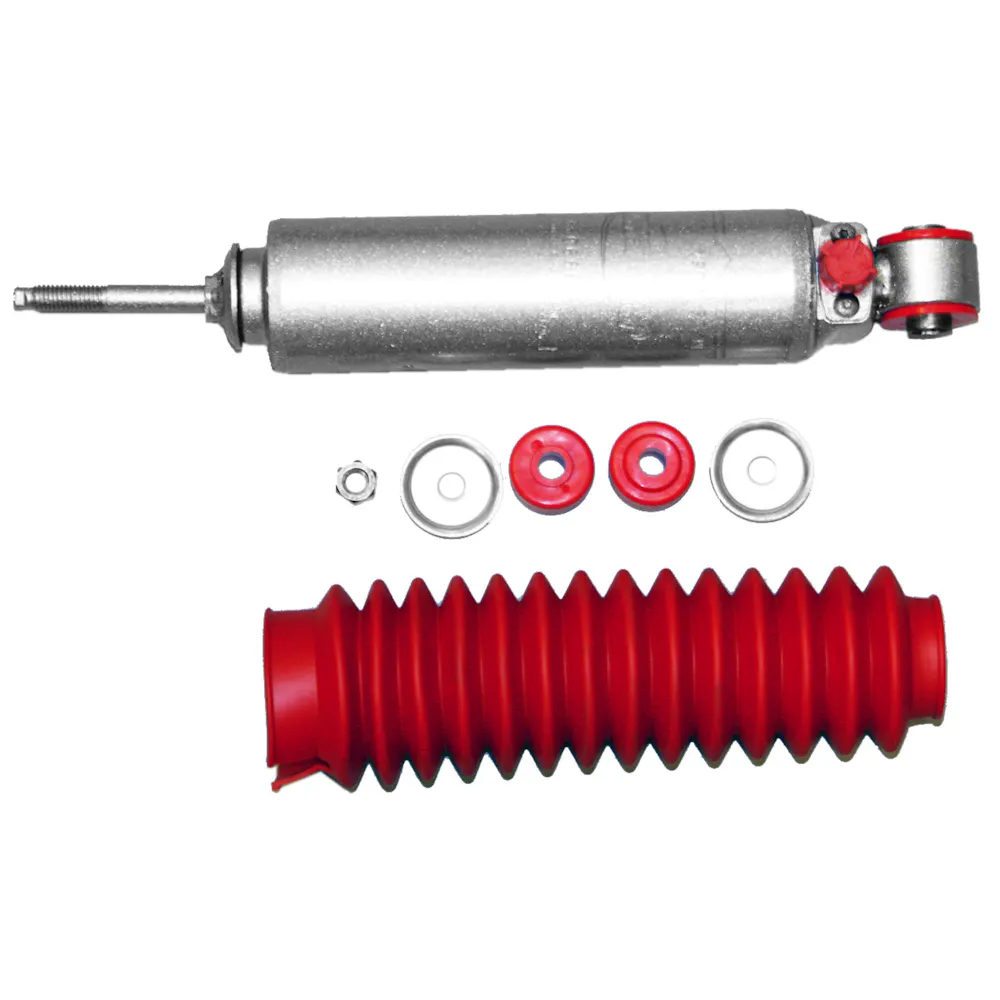

Rancho · RS999029
Part #: RS999029
UPC: 039703090292
Log in for inventory
Notify me when this item is in stock.
Description: RS9000XL Suspension Shock Absorber; Rancho RS9000XL RS999029 Suspension Shock Absorber for Ford F-150
Description:
This part number has been superseded by RS994029.
Description
Get premium control and performance with Rancho RS9000™XL shocks. Recognized as the first nine-position manually adjustable ride control series in the off-road market, RS9000XL shocks are ideal for on- and off-road use, towing and more.
Features & benefits
- NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
- DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
- INDUSTRY FIRST -- Recognized as the first nine-position manually adjustable shock series in the off-road market
- REDUCES FADE -- Nitrogen gas pressurized to 120 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
- STRONG AND DURABLE -- Features an application-specific 18mm nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and 1.25-in. sintered iron piston for enhanced structural integrity
- HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
Application summary
| Year | Make / model |
|---|---|
| 1997-2004 | Dodge Dakota |
| 1998-2003 | Dodge Durango |
| 1980-1996 | Ford Bronco |
| 1980-1983 | Ford F-100 |
| 1996 | Ford F-100 Ranger |
| 1980-1996 | Ford F-150 |
| 1980-1996 | Ford F-250 |
| 1997 | Ford F-250 HD |
| 1980-1997 | Ford F-350 |
Specifications
- GTIN
- 00039703090292
- Weight
- 4.95 lb
- Height
- 24.25 in
- Length
- 3.31 in
- Width
- 3.31 in
- Life cycle
- Available to Order
- AAM brand code
- RAN
- Warehouse brand code
- RAN
- AAIA brand code
- BCKM
Attributes
- Adjustable
- No
- Adjustable Damping
- Yes
- Adjustable Length
- No
- Adjustable Rebound
- Yes
- Air Adjustable
- No
- Air Ride Suspension
- No
- Bearing Plate Included
- No
- Body Color
- Silver
- Body Diameter
- 55.4
- Body Material
- Steel
- Boot Included
- Yes
- California Proposition 65
- No
- Coil Over Springs Included
- No
- Collapsed Length
- 10.390 in.
- Collapsed Length (in.)
- 10.390
- Color
- Silver
- Compressed Bumper Stop
- No
- Compressed Length
- 263.9
- Cylinder Color
- Silver
- Cylinder Included
- No
- Cylinder Material
- Steel
- Cylinder Outside Diameter
- 2.18
- Dust Shield
- Yes
- Dust Shield Color
- Red
- Dust Shield Included
- Yes
- Extended Bumper Stop
- No
- Extended Hydraulic Lockout
- No
- Extended Length
- 14.55
- Extended Length (in.)
- 14.550 in.
- Finish
- Painted
- Fully Open Length
- 14.550 in.
- Gas Charged
- Yes
- Grade Type
- Performance
- Internal Construction Type
- Tri Tube
- Lower Mount Code
- LS26
- Lower Mount Type
- Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL
- Lower Mounting Code
- LS26
- Lower Mounting Description
- Loop Bushing & Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL
- Max Year Covered
- 2004
- Min Year Covered
- 1980
- Most Popular Make / Model
- Ford F-150
- Most Popular Make/Model
- Ford F-150
- Most Popular Year
- 1995
- Mounting Hardware Included
- Yes
- New Or Remanufactured
- New
- Part Description
- Shock Absorber
- Parts Pack
- P01192
- Parts Pack(s)
- P01192
- Product Grade
- Premium
- Reserve Tube Diameter
- 2.188
- Rod Diameter
- 0.622
- Shaft Material
- Nitrocarburized
- Shock Absorber Body End Measuring Point
- Base of Stem
- Shock Absorber Rod End Measuring Point
- Center of Loop
- Shock Stroke
- 4.16
- Shock Stroke (in.)
- 4.160
- Spring Included
- No
- Spring Isolators Included
- No
- Spring Seat Included
- No
- Total Part VIO
- 2489080
- Travel Length
- 4.16
- Type
- Telescopic
- Upper Mount Code
- S42
- Upper Mount Type
- Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
- Upper Mounting Code
- S42
- Upper Mounting Description
- Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1997-2004 Dodge Dakota; 1998-2003 Dodge Durango; 1980-1996 Ford Bronco; 1980-1983 Ford F-100; 1996 Ford F-100 Ranger; 1980-1996 Ford F-150; 1980-1996 Ford F-250; 1997 Ford F-250 HD; 1980-1997 Ford F-350
