Rancho · RS999028

Part #: RS999028
UPC: 039703090285

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Rancho Series: RS9000XL Shocks

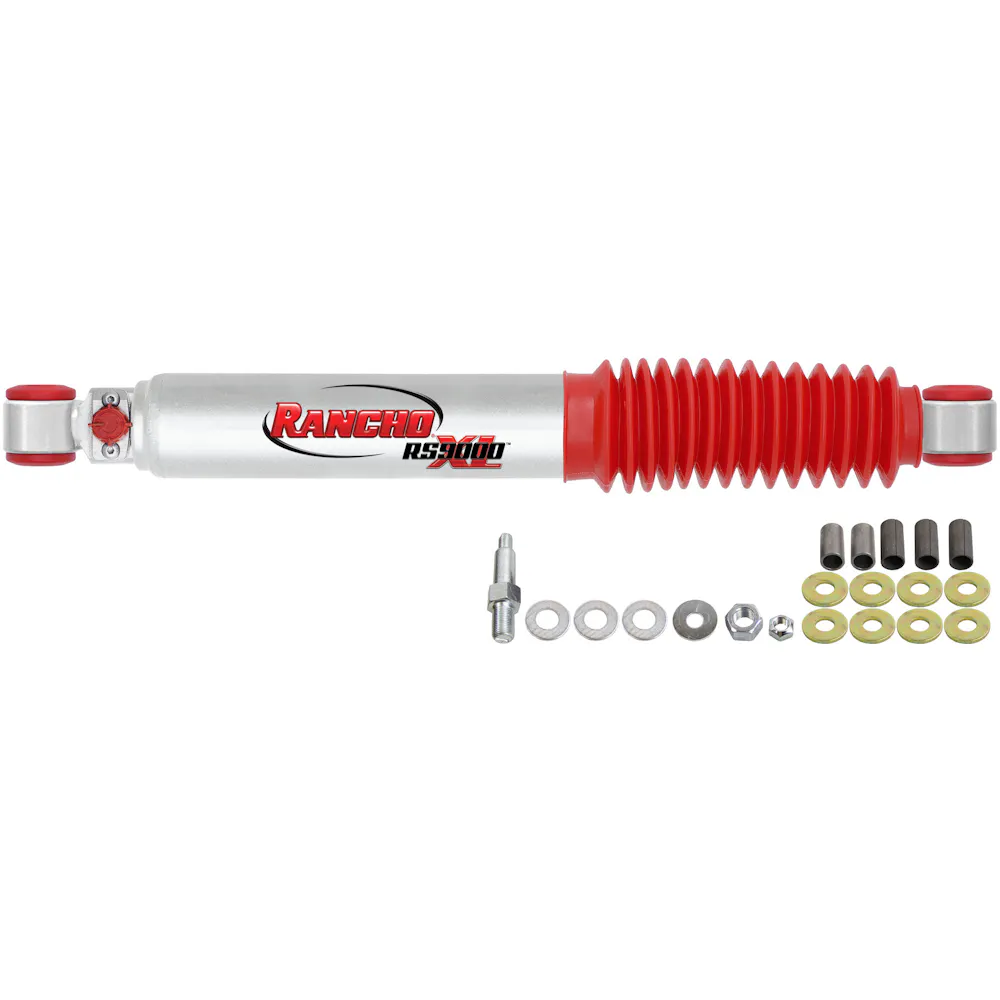

Description: RS9000XL Suspension Shock Absorber; Rancho RS9000XL RS999028 Suspension Shock Absorber

This part number has been superseded by RS994028.

Description

Get premium control and performance with Rancho RS9000™XL shocks. Recognized as the first nine-position manually adjustable ride control series in the off-road market, RS9000XL shocks are ideal for on- and off-road use, towing and more.

Features & benefits

NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
INDUSTRY FIRST -- Recognized as the first nine-position manually adjustable shock series in the off-road market
REDUCES FADE -- Nitrogen gas pressurized to 120 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
STRONG AND DURABLE -- Features an application-specific 18mm nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and 1.25-in. sintered iron piston for enhanced structural integrity
HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Specifications

GTIN: 00039703090285
Weight: 9.85 lb
Height: 24.25 in
Length: 3.31 in
Width: 3.31 in
Life cycle: Available to Order
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Adjustable: No
Adjustable Damping: Yes
Adjustable Length: No
Adjustable Rebound: Yes
Air Adjustable: No
Air Ride Suspension: No
Bearing Plate Included: No
Body Color: Silver
Body Diameter: 69.9
Body Material: Steel
Boot Included: Yes
California Proposition 65: No
Coil Over Springs Included: No
Collapsed Length: 17.250 in.
Collapsed Length (in.): 17.250
Color: Silver
Compressed Bumper Stop: No
Compressed Length: 17.250
Cylinder Color: Silver
Cylinder Material: Steel
Cylinder Outside Diameter: 69.9
Dust Shield: Yes
Dust Shield Color: Red
Dust Shield Included: Yes
Extended Bumper Stop: No
Extended Hydraulic Lockout: No
Extended Length: 710.2
Extended Length (in.): 27.960 in.
Finish: Painted
Fully Open Length: 27.960 in.
Gas Charged: Yes
Grade Type: Performance
Internal Construction Type: Tri Tube
Lower Mount Code: L1
Lower Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Code: L1
Lower Mounting Description: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Mounting Hardware Included: Yes
New Or Remanufactured: New
Part Description: Shock Absorber
Parts Pack: P00934,P00915
Parts Pack(s): P00934,P00915
Product Grade: Premium
Reserve Tube Diameter: 2.75
Rod Diameter: 0.7086614173228346
Shaft Material: Chromed
Shock Absorber Body End Measuring Point: Center of Loop
Shock Absorber Bore Size: 1.2598425196850394
Shock Absorber Rod End Measuring Point: Center of Loop
Shock Stroke: 10.71
Shock Stroke (in.): 10.710
Spring Included: No
Spring Isolators Included: No
Spring Seat Included: No
Total Part VIO: 0
Travel Length: 10.71
Type: Telescopic
Upper Mount Code: L1
Upper Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Code: L1
Upper Mounting Description: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
