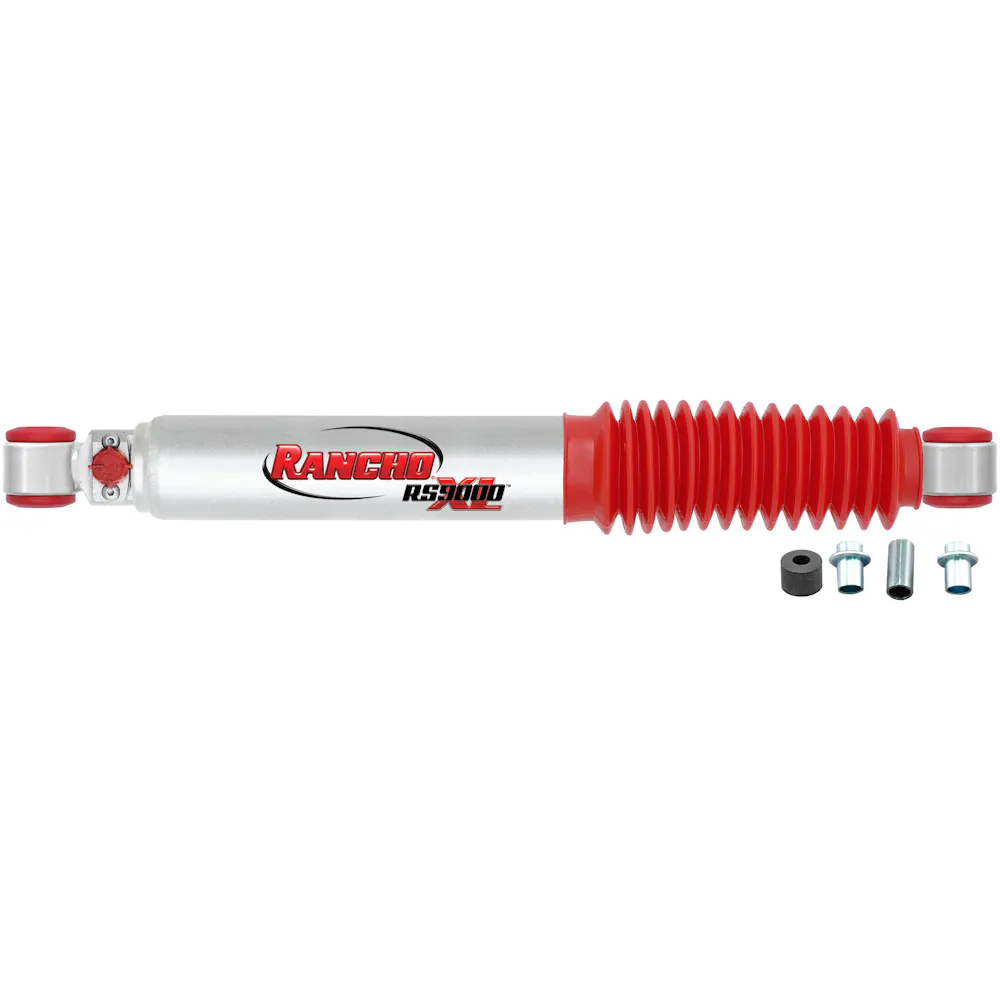

Rancho · RS999001
Part #: RS999001
UPC: 039703090018
Loading...
Notify me when this item is in stock.
Description: RS9000XL Suspension Shock Absorber; Rancho RS9000XL RS999001 Suspension Shock Absorber for Chevrolet K1500
Description:
This part number has been superseded by RS994001.
Description
Get premium control and performance with Rancho RS9000™XL shocks. Recognized as the first nine-position manually adjustable ride control series in the off-road market, RS9000XL shocks are ideal for on- and off-road use, towing and more.
Features & benefits

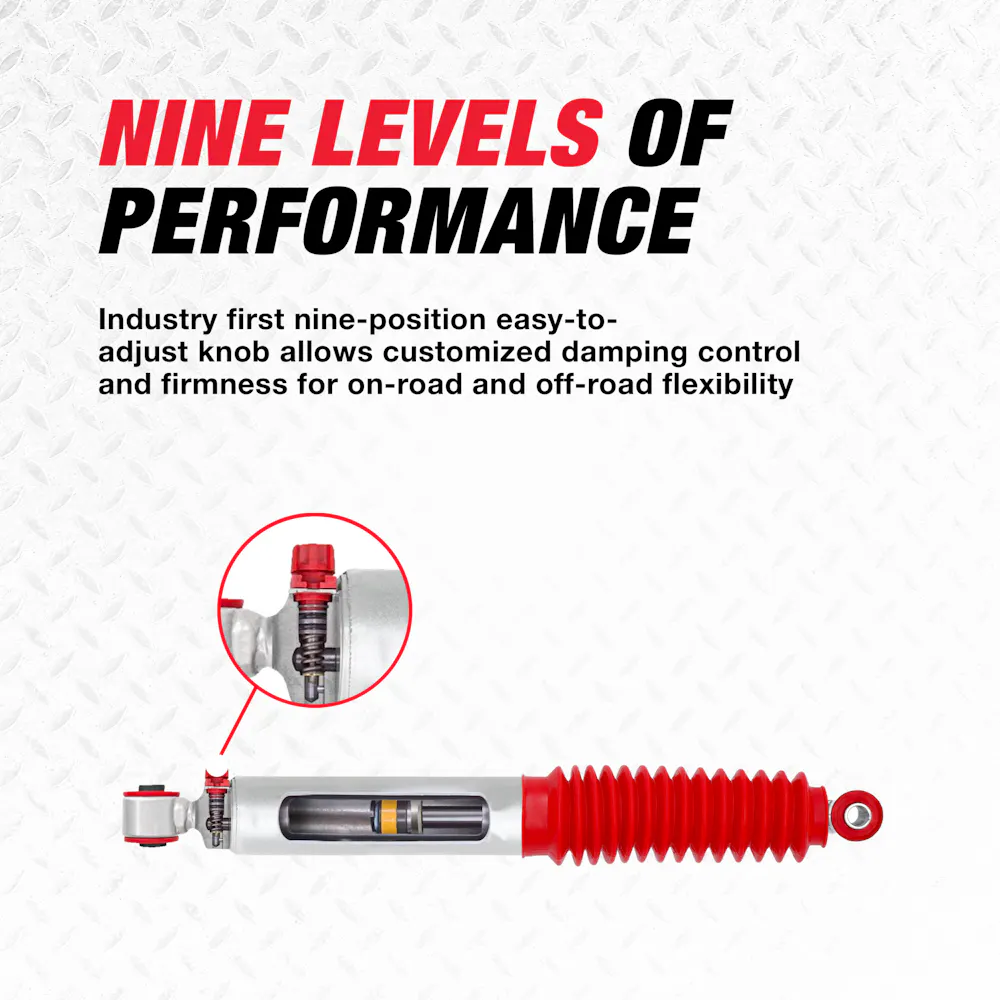

- NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
- DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
- INDUSTRY FIRST -- Recognized as the first nine-position manually adjustable shock series in the off-road market

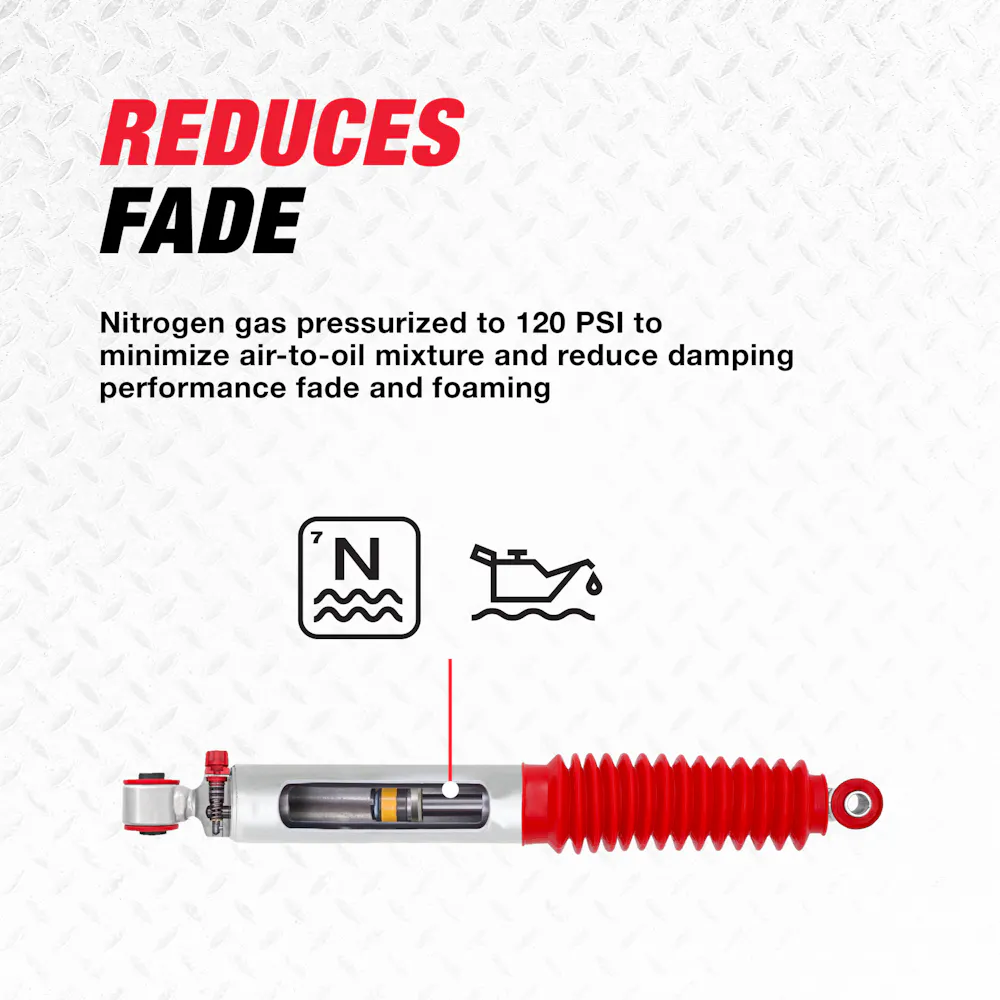

- REDUCES FADE -- Nitrogen gas pressurized to 120 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming

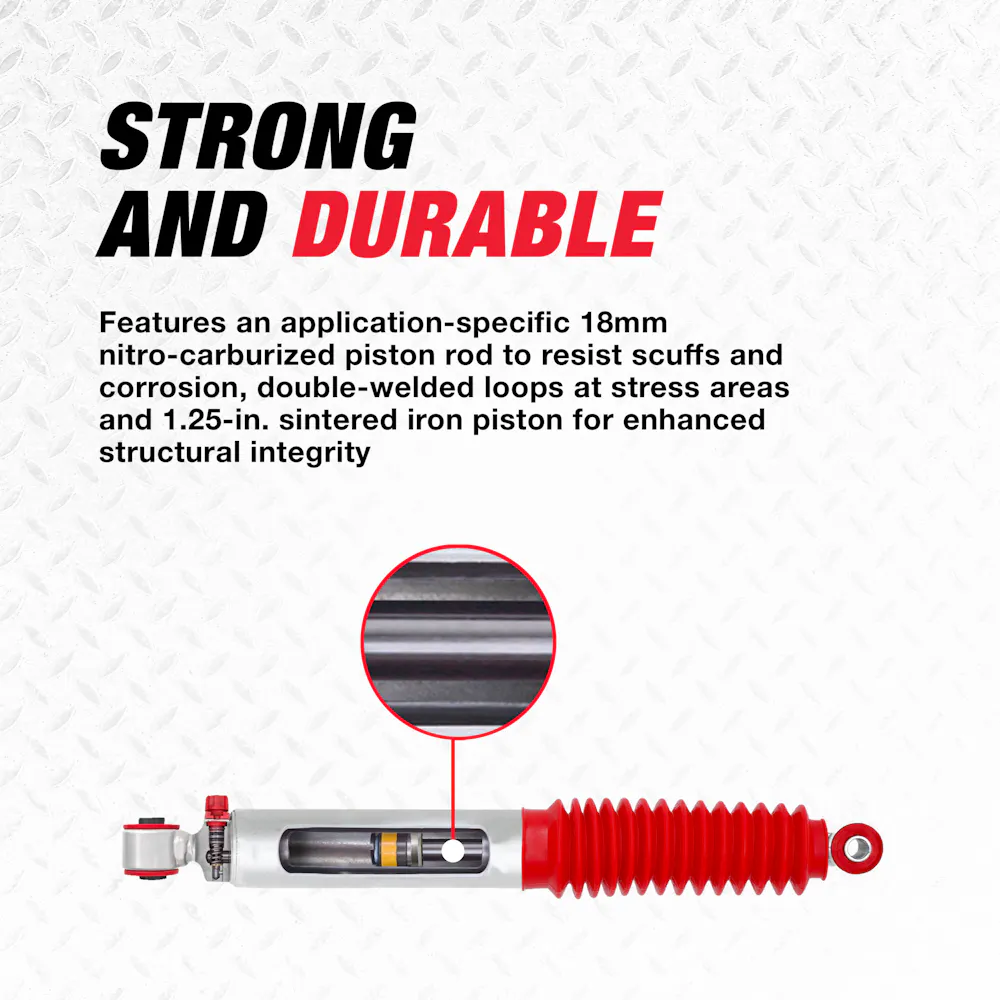

- STRONG AND DURABLE -- Features an application-specific 18mm nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and 1.25-in. sintered iron piston for enhanced structural integrity
- HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F

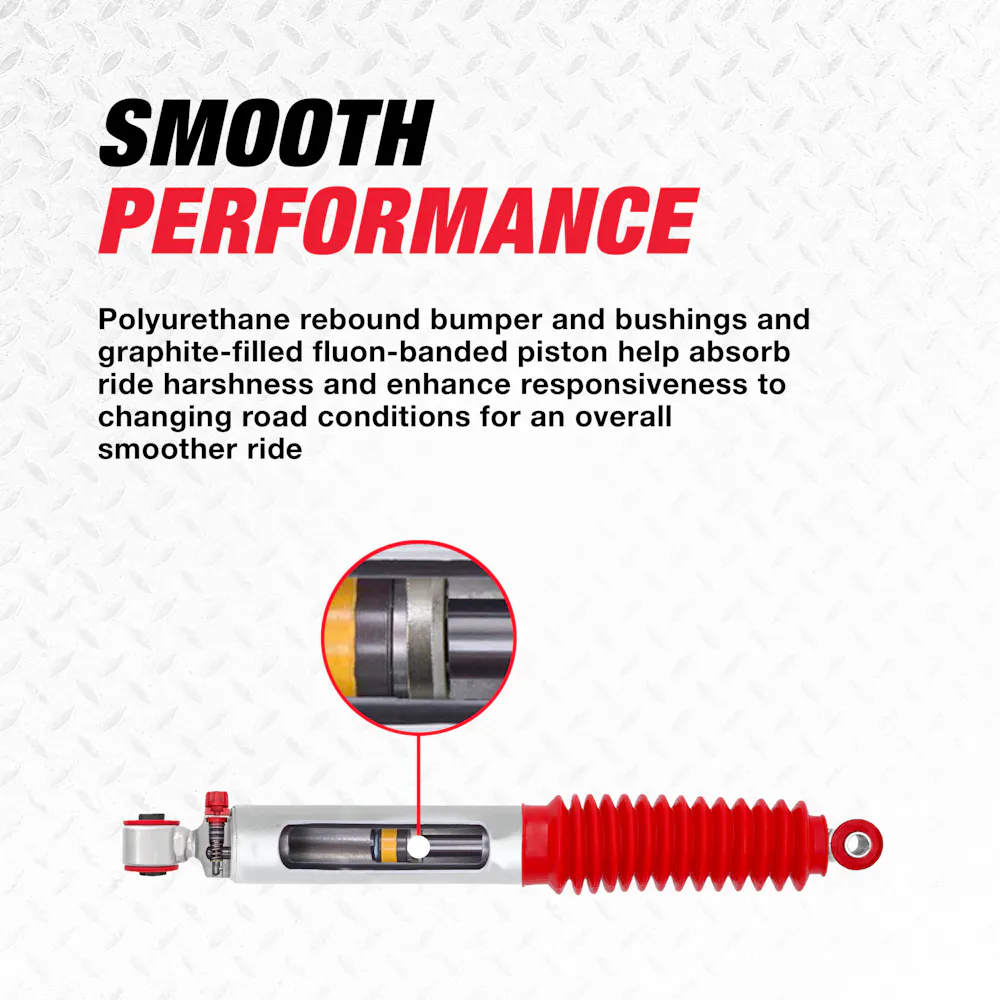

- SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride

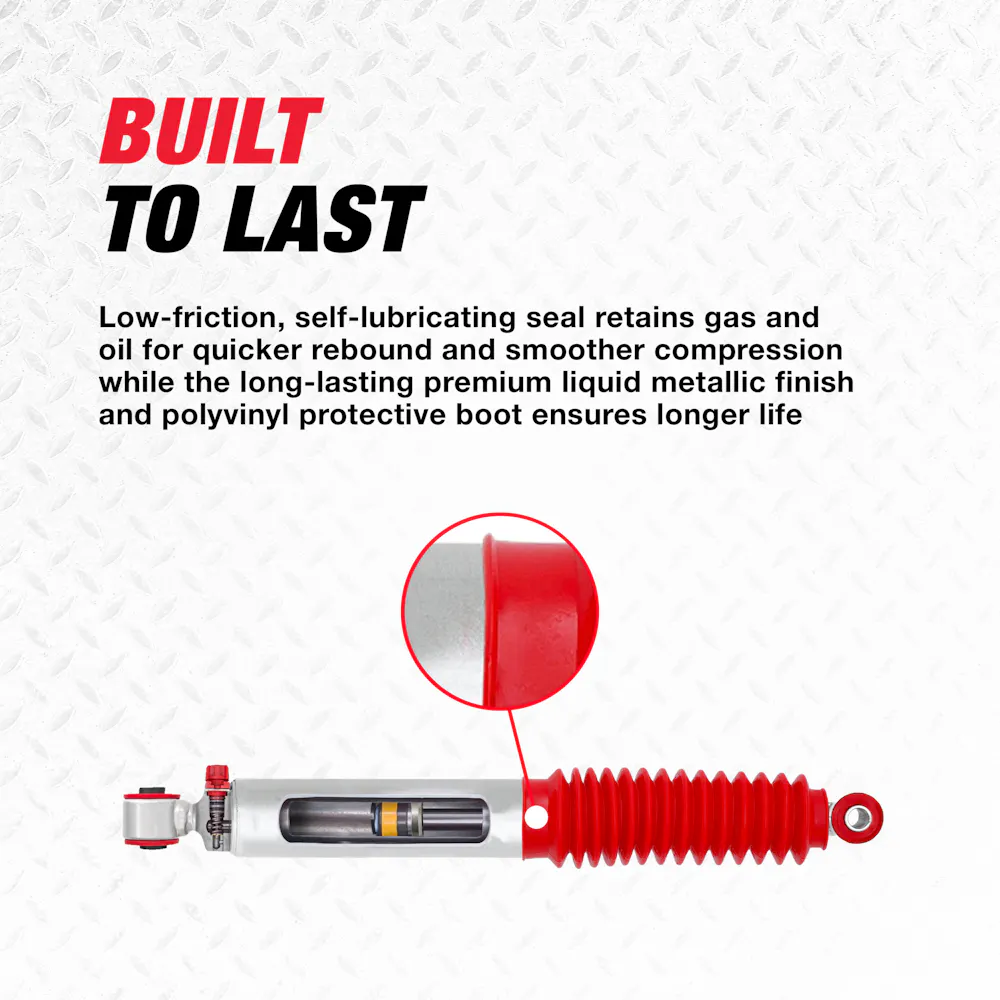

- BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
- BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
Application summary
| Year | Make / model |
|---|---|
| 1969-1974 | Chevrolet Blazer |
| 1987-1994 | Chevrolet Blazer |
| 1975-1986 | Chevrolet K10 |
| 1969-1974 | Chevrolet K10 Pickup |
| 1969-1986 | Chevrolet K10 Suburban |
| 1988-1999 | Chevrolet K1500 |
| 1975-1986 | Chevrolet K20 |
| 1969-1974 | Chevrolet K20 Pickup |
| 1969-1986 | Chevrolet K20 Suburban |
| 1988-2000 | Chevrolet K2500 |
| 1992-1999 | Chevrolet K2500 Suburban |
| 1977-1986 | Chevrolet K30 |
| 1988-2000 | Chevrolet K3500 |
| 1975-1986 | Chevrolet K5 Blazer |
| 1995-2000 | Chevrolet Tahoe |
| 1987 | Chevrolet V10 |
| 1987-1988 | Chevrolet V10 Suburban |
| 1989-1991 | Chevrolet V1500 Suburban |
| 1987 | Chevrolet V20 |
| 1987-1988 | Chevrolet V20 Suburban |
| 1989-1991 | Chevrolet V2500 Suburban |
| 1987-1988 | Chevrolet V30 |
| 1989-1991 | Chevrolet V3500 |
| 1970-1991 | GMC Jimmy |
| 1975-1978 | GMC K15 |
| 1975-1978 | GMC K15 Suburban |
| 1969-1974 | GMC K15/K1500 Pickup |
| 1968-1974 | GMC K15/K1500 Suburban |
| 1979-1986 | GMC K1500 |
| 1988-1999 | GMC K1500 |
| 1979-1986 | GMC K1500 Suburban |
| 1975-1978 | GMC K25 |
| 1975-1978 | GMC K25 Suburban |
| 1969-1974 | GMC K25/K2500 Pickup |
| 1968-1974 | GMC K25/K2500 Suburban |
| 1979-1986 | GMC K2500 |
| 1988-2000 | GMC K2500 |
| 1979-1986 | GMC K2500 Suburban |
| 1992-1998 | GMC K2500 Suburban |
| 1977-1978 | GMC K35 |
| 1979-1986 | GMC K3500 |
| 1988-2000 | GMC K3500 |
| 1987 | GMC V1500 |
| 1987-1991 | GMC V1500 Suburban |
| 1987 | GMC V2500 |
| 1987-1991 | GMC V2500 Suburban |
| 1987-1991 | GMC V3500 |
| 1992-2000 | GMC Yukon |
Specifications
- GTIN
- 00039703090018
- Weight
- 6.9 lb
- Height
- 24.25 in
- Length
- 3.31 in
- Width
- 3.31 in
- Life cycle
- Available to Order
- AAM brand code
- RAN
- Warehouse brand code
- RAN
- AAIA brand code
- BCKM
Attributes
- Adjustable
- No
- Adjustable Damping
- Yes
- Adjustable Length
- No
- Adjustable Rebound
- Yes
- Air Adjustable
- No
- Air Ride Suspension
- No
- Bearing Plate Included
- No
- Body Color
- Silver
- Body Diameter
- 60.5
- Body Material
- Steel
- Boot Included
- Yes
- California Proposition 65
- No
- Coil Over Springs Included
- No
- Collapsed Length
- 13.680 in.
- Collapsed Length (in.)
- 13.680
- Color
- Silver
- Compressed Bumper Stop
- No
- Compressed Length
- 13.68
- Cylinder Color
- Silver
- Cylinder Material
- Steel
- Cylinder Outside Diameter
- 60.5
- Dust Shield
- Yes
- Dust Shield Color
- Red
- Dust Shield Included
- Yes
- Extended Bumper Stop
- No
- Extended Hydraulic Lockout
- No
- Extended Length
- 529.1
- Extended Length (in.)
- 20.830 in.
- Finish
- Painted
- Fully Open Length
- 20.830 in.
- Gas Charged
- Yes
- Grade Type
- Performance
- Internal Construction Type
- Tri Tube
- Lower Mount Code
- L1
- Lower Mount Type
- Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
- Lower Mounting Code
- L1
- Lower Mounting Description
- Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
- Max Year Covered
- 2000
- Min Year Covered
- 1968
- Most Popular Make / Model
- Chevrolet K1500
- Most Popular Make/Model
- Chevrolet K1500
- Most Popular Year
- 1998
- Mounting Hardware Included
- Yes
- New Or Remanufactured
- New
- Part Description
- Shock Absorber
- Parts Pack
- P00976,P00816
- Parts Pack(s)
- P00976,P00816
- Product Grade
- Premium
- Reserve Tube Diameter
- 2.38
- Rod Diameter
- 18
- Shaft Material
- Nitrocarburized
- Shock Absorber Body End Measuring Point
- Center of Loop
- Shock Absorber Rod End Measuring Point
- Center of Loop
- Shock Stroke
- 7.15
- Shock Stroke (in.)
- 7.150
- Spring Included
- No
- Spring Isolators Included
- No
- Spring Seat Included
- No
- Total Part VIO
- 2359379
- Travel Length
- 7.15
- Type
- Telescopic
- Upper Mount Code
- L1
- Upper Mount Type
- Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
- Upper Mounting Code
- L1
- Upper Mounting Description
- Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1969-1974 Chevrolet Blazer; 1987-1994 Chevrolet Blazer; 1975-1986 Chevrolet K10; 1969-1974 Chevrolet K10 Pickup; 1969-1986 Chevrolet K10 Suburban; 1988-1999 Chevrolet K1500; 1975-1986 Chevrolet K20; 1969-1974 Chevrolet K20 Pickup; 1969-1986 Chevrolet K20 Suburban; 1988-2000 Chevrolet K2500; 1992-1999 Chevrolet K2500 Suburban; 1977-1986 Chevrolet K30; 1988-2000 Chevrolet K3500; 1975-1986 Chevrolet K5 Blazer; 1995-2000 Chevrolet Tahoe; 1987 Chevrolet V10; 1987-1988 Chevrolet V10 Suburban; 1989-1991 Chevrolet V1500 Suburban; 1987 Chevrolet V20; 1987-1988 Chevrolet V20 Suburban; 1989-1991 Chevrolet V2500 Suburban; 1987-1988 Chevrolet V30; 1989-1991 Chevrolet V3500; 1970-1991 GMC Jimmy; 1975-1978 GMC K15; 1975-1978 GMC K15 Suburban; 1969-1974 GMC K15/K1500 Pickup; 1968-1974 GMC K15/K1500 Suburban; 1979-1986 GMC K1500; 1988-1999 GMC K1500; 1979-1986 GMC K1500 Suburban; 1975-1978 GMC K25; 1975-1978 GMC K25 Suburban; 1969-1974 GMC K25/K2500 Pickup; 1968-1974 GMC K25/K2500 Suburban; 1979-1986 GMC K2500; 1988-2000 GMC K2500; 1979-1986 GMC K2500 Suburban; 1992-1998 GMC K2500 Suburban; 1977-1978 GMC K35; 1979-1986 GMC K3500; 1988-2000 GMC K3500; 1987 GMC V1500; 1987-1991 GMC V1500 Suburban; 1987 GMC V2500; 1987-1991 GMC V2500 Suburban; 1987-1991 GMC V3500; 1992-2000 GMC Yukon
