Rancho · RS5601
Part #: RS5601
UPC: 039703560108
Log in for inventory
Notify me when this item is in stock.

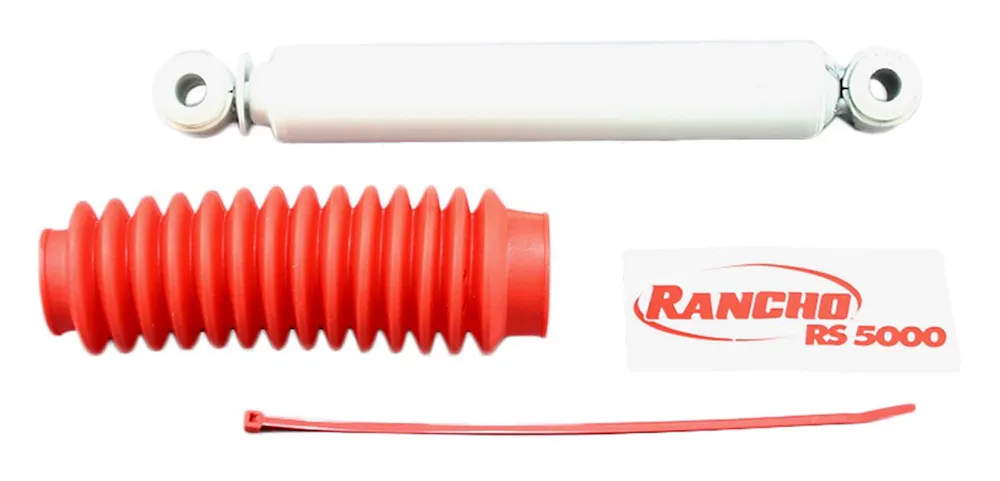

Description: RS5000 Shock; Rancho RS5000 RS5601 Shock Absorber
Description:
This part number has been superseded by RS55601.
Description
The shock that started it all! Rancho RS5000 series has been the shock of choice for light trucks and sport utility vehicles since 1985. Available for stock and lifted applications, RS5000 is ideal for on and off-road use, at an affordable price. Covered by Rancho's limited lifetime warranty.
Features & benefits
- Ten-stage velocity sensitive valving - Provides tuning specific for each vehicle
- 5/8-in. (16mm) diameter piston rod (select applications) - Adds strength and durability. Size varies by application.
- 1 3/8-in. (35mm) diameter piston (select applications) - Ensures performance in any environment
- Protective boot included - Protects the shock rod and oil seal
- Limited Lifetime Warranty - Guarantees your investment
- Limited Lifetime Warranty
Information
Twin-Tube Construction; 10-Stage Velocity Sensitive Valving; 5/8in. Diameter Chrome Piston Rod; 1-3/8in. Diameter Piston; Protective Boot Included; Limited Lifetime Warranty
Application summary
| Year | Make / model |
|---|---|
| 1979-1982 | Dodge D50 |
| 1983-1993 | Dodge Ram 50 |
| 1981-1988 | Isuzu Pickup |
| 1986-1987 | Mazda B2000 |
| 1987-1993 | Mazda B2200 |
| 1982 | Nissan 720 |
| 1979-1982 | Plymouth Arrow Pickup |
| 1975-1995 | Toyota Pickup |
| 1993-1998 | Toyota T100 |
Specifications
- GTIN
- 00039703560108
- Weight
- 3.6 lb
- Height
- 24.25 in
- Length
- 3.31 in
- Width
- 3.31 in
- EO
- Legal US
- Life cycle
- Obsolete
- AAM brand code
- RAN
- Warehouse brand code
- RAN
- AAIA brand code
- BCKM
Attributes
- Adjustable
- No
- Adjustable Length
- No
- Body Diameter
- 1.75
- California Proposition 65
- No
- Collapsed Length
- 12.390 in.
- Collapsed Length (in.)
- 12.390
- Compressed Bumper Stop
- No
- Compressed Length
- 12.39
- Cylinder Included
- No
- Dust Shield
- Yes
- Dust Shield Included
- Yes
- Extended Bumper Stop
- No
- Extended Hydraulic Lockout
- No
- Extended Length
- 19.83
- Extended Length (in.)
- 19.830 in.
- Finish
- Painted
- Fully Open Length
- 19.830 in.
- Lower Mount Type
- Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
- Lower Mounting Code
- Loop Bushing Mount - 0.625 in. Bushing ID x 1.3125
- Lower Mounting Description
- Loop Bushing Mount - 5/8 Bushing ID x 1.5/16 Bushing OAL
- Max Year Covered
- 1998
- Min Year Covered
- 1975
- Most Popular Make / Model
- Toyota Pickup
- Most Popular Make/Model
- Toyota Pickup
- Most Popular Year
- 1994
- Parts Pack(s)
- None
- Product Grade
- Premium
- Reserve Tube Diameter
- 1.750 in.
- Shock Stroke
- 7.440 in.
- Shock Stroke (in.)
- 7.440
- Total Part VIO
- 413554
- Travel Length
- 7.44
- Upper Mount Type
- Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
- Upper Mounting Code
- Loop Bushing Mount - 0.625 in. Bushing ID x 1.3125
- Upper Mounting Description
- Loop Bushing Mount - 5/8 Bushing ID x 1.5/16 Bushing OAL
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1979-1982 Dodge D50; 1983-1993 Dodge Ram 50; 1981-1988 Isuzu Pickup; 1986-1987 Mazda B2000; 1987-1993 Mazda B2200; 1982 Nissan 720; 1979-1982 Plymouth Arrow Pickup; 1975-1995 Toyota Pickup; 1993-1998 Toyota T100
