Rancho · RS5286
Part #: RS5286
UPC: 039703528603
Loading...
Notify me when this item is in stock.

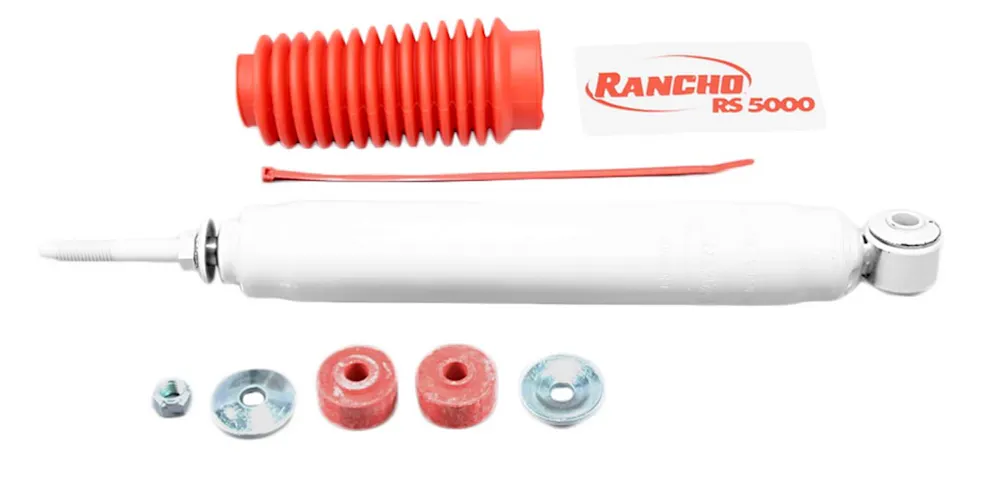

Description: RS5000 Shock Absorber; Rancho RS5286 Shock Absorber
Description:
This part number has been superseded by RS55286.
Description
The shock that started it all! Rancho RS5000 series has been the shock of choice for light trucks and sport utility vehicles since 1985. Available for stock and lifted applications, RS5000 is ideal for on and off-road use, at an affordable price. Covered by Rancho's limited lifetime warranty.
Features & benefits
- Ten-stage velocity sensitive valving - Provides tuning specific for each vehicle
- 5/8-in. (16mm) diameter piston rod (select applications) - Adds strength and durability. Size varies by application.
- 1 3/8-in. (35mm) diameter piston (select applications) - Ensures performance in any environment
- Protective boot included - Protects the shock rod and oil seal
- Limited Lifetime Warranty - Guarantees your investment
- Limited Lifetime Warranty
Information
Twin-Tube Construction; 10-Stage Velocity Sensitive Valving; 5/8in. Diameter Chrome Piston Rod; 1-3/8in. Diameter Piston; Protective Boot Included; Limited Lifetime Warranty
Application summary
| Year | Make / model |
|---|---|
| 2004-2013 | Ford F-150 |
| 2004 | Ford F-150 Heritage |
| 2006-2008 | Lincoln Mark LT |
Specifications
- GTIN
- 00039703528603
- Weight
- 6.38 lb
- Height
- 3.31 in
- Length
- 24.25 in
- Width
- 3.31 in
- EO
- Legal US
- Life cycle
- Obsolete
- AAM brand code
- RAN
- Warehouse brand code
- RAN
- AAIA brand code
- BCKM
Attributes
- Adjustable
- No
- Adjustable Length
- No
- Body Diameter
- 2.18
- California Proposition 65
- No
- Collapsed Length
- 16.540 in.
- Collapsed Length (in.)
- 16.540
- Compressed Bumper Stop
- No
- Compressed Length
- 16.54
- Cylinder Included
- No
- Dust Shield
- Yes
- Dust Shield Included
- Yes
- Extended Bumper Stop
- No
- Extended Hydraulic Lockout
- No
- Extended Length
- 27.29
- Extended Length (in.)
- 27.290 in.
- Finish
- Painted
- Fully Open Length
- 27.290 in.
- Lower Mount Type
- Loop Bushing & Sleeve Mount - 1/2" Sleeve ID X 1.5/8" Sleeve OAL
- Lower Mounting Code
- Loop Bushing & Sleeve Mount - 0.500 in. Sleeve ID x 1.625 in. Sleeve OAL
- Lower Mounting Description
- Loop Bushing Sleeve Mount - 1/2 Sleeve ID x 1.5/8 Sleeve OAL
- Max Year Covered
- 2013
- Min Year Covered
- 2004
- Most Popular Make / Model
- Ford F-150
- Most Popular Make/Model
- Ford F-150
- Most Popular Year
- 2013
- Parts Pack(s)
- None
- Product Grade
- Premium
- Reserve Tube Diameter
- 2.180 in.
- Shock Stroke
- 10.750 in.
- Shock Stroke (in.)
- 10.750
- Total Part VIO
- 1910644
- Travel Length
- 10.750
- Upper Mount Type
- Loop Bushing & Sleeve Mount - 1/2" Sleeve ID X 1.5/8" Sleeve OAL
- Upper Mounting Code
- Loop Bushing & Sleeve Mount - 0.500 in. Sleeve ID x 41.28mm Sleeve OAL
- Upper Mounting Description
- Loop Bushing Sleeve Mount - 1/2 Sleeve ID x 1.5/8 Sleeve OAL
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2004-2013 Ford F-150; 2004 Ford F-150 Heritage; 2006-2008 Lincoln Mark LT
