Rancho · RS5281
Part #: RS5281
UPC: 039703528108
Log in for inventory
Notify me when this item is in stock.
Description: RS5000 Shock Absorber; Rancho RS5281 Shock Absorber
Description:
This part number has been superseded by RS55281.
Description
The shock that started it all! Rancho RS5000 series has been the shock of choice for light trucks and sport utility vehicles since 1985. Available for stock and lifted applications, RS5000 is ideal for on and off-road use, at an affordable price. Covered by Rancho's limited lifetime warranty.
Features & benefits
- Ten-stage velocity sensitive valving - Provides tuning specific for each vehicle
- 5/8-in. (16mm) diameter piston rod (select applications) - Adds strength and durability. Size varies by application.
- 1 3/8-in. (35mm) diameter piston (select applications) - Ensures performance in any environment
- Protective boot included - Protects the shock rod and oil seal
- Limited Lifetime Warranty - Guarantees your investment
- Limited Lifetime Warranty
Information
Twin-Tube Construction; 10-Stage Velocity Sensitive Valving; 5/8in. Diameter Chrome Piston Rod; 1-3/8in. Diameter Piston; Protective Boot Included; Limited Lifetime Warranty
Application summary
| Year | Make / model |
|---|---|
| 2002-2008 | Dodge Ram 1500 |
Specifications
- GTIN
- 00039703528108
- Weight
- 4.65 lb
- Height
- 3.31 in
- Length
- 24.25 in
- Width
- 4.31 in
- EO
- Legal US
- Life cycle
- Obsolete
- AAM brand code
- RAN
- Warehouse brand code
- RAN
- AAIA brand code
- BCKM
Attributes
- Adjustable
- No
- Adjustable Length
- No
- Body Diameter
- 2.188
- California Proposition 65
- No
- Collapsed Length
- 9.620 in.
- Collapsed Length (in.)
- 9.620
- Compressed Bumper Stop
- No
- Compressed Length
- 9.62
- Cylinder Included
- No
- Dust Shield
- Yes
- Dust Shield Included
- Yes
- Extended Bumper Stop
- No
- Extended Hydraulic Lockout
- No
- Extended Length
- 14.24
- Extended Length (in.)
- 14.240 in.
- Finish
- Painted
- Fully Open Length
- 14.240 in.
- Lower Mount Type
- Cross Pin Mount - Open Ended, 3/8" Hole ID (Both Ends) X 2.5/8" Pin Length (Hole Center to Center)
- Lower Mounting Code
- Cross Pin Mount - Open Ended 0.375 in. Hole ID (Bo
- Lower Mounting Description
- Cross Pin Mount - Open Ended; 3/8 Hole ID (Both Ends) x 2.5/8 Pin Length (Hole Center to Center)
- Max Year Covered
- 2008
- Min Year Covered
- 2002
- Most Popular Make / Model
- Dodge Ram 1500
- Most Popular Make/Model
- Dodge Ram 1500
- Most Popular Year
- 2004
- Parts Pack(s)
- P01167
- Product Grade
- Premium
- Reserve Tube Diameter
- 2.188 in.
- Shock Stroke
- 4.620 in.
- Shock Stroke (in.)
- 4.620
- Total Part VIO
- 812611
- Travel Length
- 4.62
- Upper Mount Type
- Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch
- Upper Mounting Code
- Stem Mount - 2.625 in. Stem Length x 0.500 in. -13
- Upper Mounting Description
- Stem Mount - 2.5/8 Stem Length x 1/2-13 Thread Pitch
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2002-2008 Dodge Ram 1500
Resources
- Brand logo
- Logo Image
- Material Safety Data Sheet
- Material Safety Data Sheet
- Material Safety Data Sheet
- Material Safety Data Sheet
- Photo - Primary
- Your Adventure Starts with Hunting and Rancho
- Your Adventure Starts with Paddleboarding and Rancho
- Your Adventure Starts with Mountain Biking and Rancho
- About Rancho®
- Your Adventure Starts with Fishing and Rancho
- Your Adventure Starts with Off-Roading and Rancho
- Your Adventure Starts with Rancho
- Warranty
Equivalent Parts

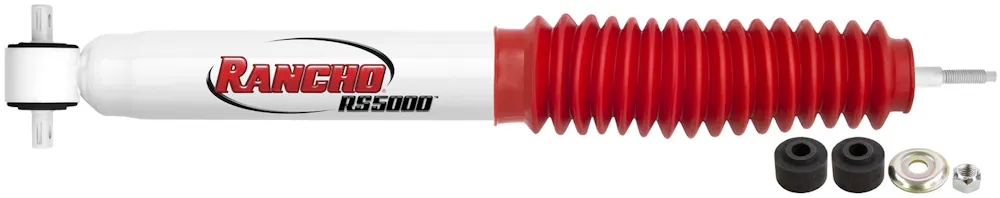

Rancho RS5281
