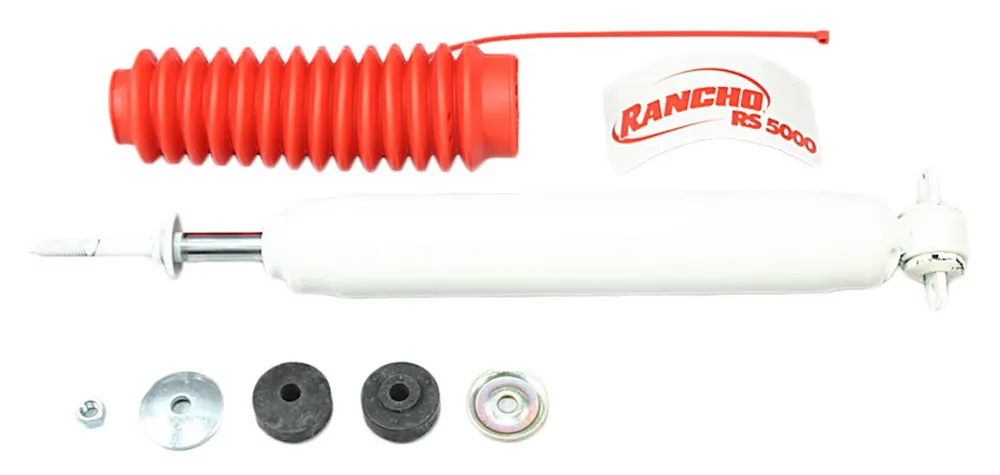

Rancho · RS5255
Part #: RS5255
UPC: 039703525503
Loading...
Notify me when this item is in stock.
Description: RS5000 Shock Absorber; Rancho RS5255 Shock Absorber
Description:
This part number has been superseded by RS55255.
Description
The shock that started it all! Rancho RS5000 series has been the shock of choice for light trucks and sport utility vehicles since 1985. Available for stock and lifted applications, RS5000 is ideal for on and off-road use, at an affordable price. Covered by Rancho's limited lifetime warranty.
Features & benefits
- Ten-stage velocity sensitive valving - Provides tuning specific for each vehicle
- 5/8-in. (16mm) diameter piston rod (select applications) - Adds strength and durability. Size varies by application.
- 1 3/8-in. (35mm) diameter piston (select applications) - Ensures performance in any environment
- Protective boot included - Protects the shock rod and oil seal
- Limited Lifetime Warranty - Guarantees your investment
- Limited Lifetime Warranty
Information
Twin-Tube Construction; 10-Stage Velocity Sensitive Valving; 5/8in. Diameter Chrome Piston Rod; 1-3/8in. Diameter Piston; Protective Boot Included; Limited Lifetime Warranty
Application summary
| Year | Make / model |
|---|---|
| 1997-2006 | Jeep TJ |
| 1997-2006 | Jeep Wrangler |
Specifications
- GTIN
- 00039703525503
- Weight
- 6.13 lb
- Height
- 3.31 in
- Length
- 24.25 in
- Width
- 4.31 in
- EO
- Legal US
- Life cycle
- Obsolete
- AAM brand code
- RAN
- Warehouse brand code
- RAN
- AAIA brand code
- BCKM
Attributes
- Adjustable
- No
- Adjustable Length
- No
- Body Diameter
- 2.18
- California Proposition 65
- No
- Collapsed Length
- 15.800 in.
- Collapsed Length (in.)
- 15.800
- Compressed Bumper Stop
- No
- Compressed Length
- 15.8
- Cylinder Included
- No
- Dust Shield
- Yes
- Dust Shield Included
- Yes
- Extended Bumper Stop
- No
- Extended Hydraulic Lockout
- No
- Extended Length
- 26.53
- Extended Length (in.)
- 26.530 in.
- Finish
- Painted
- Fully Open Length
- 26.530 in.
- Lower Mount Type
- Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/16" Pin Length (Hole Center to Center)
- Lower Mounting Code
- Cross Pin Mount - Closed Ended 0.3125 in. Hole ID (Both Ends) x 2.4375 in. Pin Length (Hole Center to Center)
- Lower Mounting Description
- Cross Pin Mount - Closed Ended; 5/16 Hole ID (Both Ends) x 2.7/16 Pin Length (Hole Center to Center)
- Max Year Covered
- 2006
- Min Year Covered
- 1997
- Most Popular Make / Model
- Jeep Wrangler
- Most Popular Make/Model
- Jeep Wrangler
- Most Popular Year
- 1997
- Parts Pack(s)
- P01136
- Product Grade
- Premium
- Reserve Tube Diameter
- 2.180 in.
- Shock Stroke
- 10.730 in.
- Shock Stroke (in.)
- 10.730
- Total Part VIO
- 717645
- Travel Length
- 10.73
- Upper Mount Type
- Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
- Upper Mounting Code
- Stem Mount - 2.375 in. Stem Length x 0.375 in. -16
- Upper Mounting Description
- Stem Mount - 2.3/8 Stem Length x 3/8-16 Thread Pitch
Fitment status
It is unknown whether this product will fit your application.
Application summary
1997-2006 Jeep TJ; 1997-2006 Jeep Wrangler
