Rancho · RS5239

Part #: RS5239
UPC: 039703523905

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Rancho

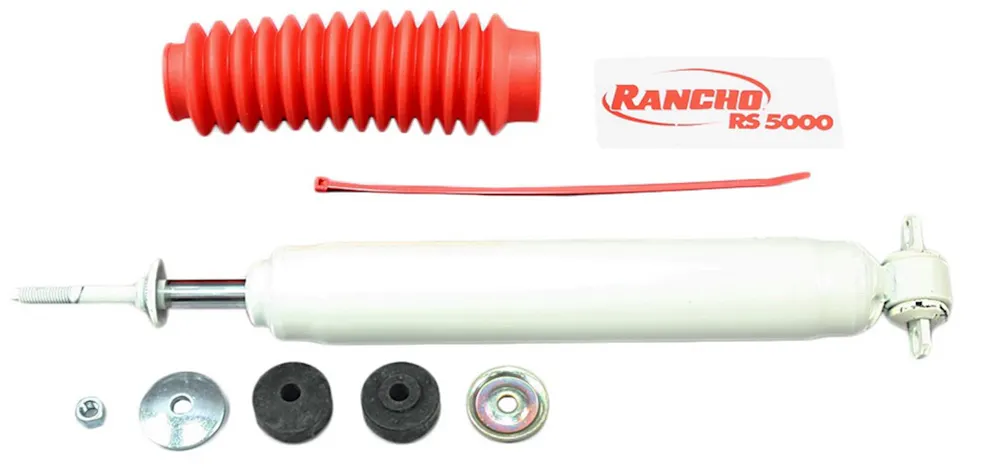

Description: RS5000 Shock Absorber; Rancho RS5239 Shock Absorber

This part number has been superseded by RS55239.

Description

The shock that started it all! Rancho RS5000 series has been the shock of choice for light trucks and sport utility vehicles since 1985. Available for stock and lifted applications, RS5000 is ideal for on and off-road use, at an affordable price. Covered by Rancho's limited lifetime warranty.

Features & benefits

Ten-stage velocity sensitive valving - Provides tuning specific for each vehicle
5/8-in. (16mm) diameter piston rod (select applications) - Adds strength and durability. Size varies by application.
1 3/8-in. (35mm) diameter piston (select applications) - Ensures performance in any environment
Protective boot included - Protects the shock rod and oil seal
Limited Lifetime Warranty - Guarantees your investment
Limited Lifetime Warranty

Information

Twin-Tube Construction; 10-Stage Velocity Sensitive Valving; 5/8in. Diameter Chrome Piston Rod; 1-3/8in. Diameter Piston; Protective Boot Included; Limited Lifetime Warranty

Application summary

Year	Make / model
1984-2001	Jeep Cherokee
1986-1992	Jeep Comanche
1993-2001	Jeep Grand Cherokee
1997-2006	Jeep TJ
1997-2006	Jeep Wrangler

Specifications

GTIN: 00039703523905
Weight: 5.26 lb
Height: 3.31 in
Length: 24.25 in
Width: 4.31 in
EO: Legal US
Life cycle: Obsolete
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Adjustable: No
Adjustable Length: No
Body Diameter: 2.18
California Proposition 65: No
Collapsed Length: 14.430 in.
Collapsed Length (in.): 14.430
Compressed Bumper Stop: No
Compressed Length: 14.43
Cylinder Included: No
Dust Shield: Yes
Dust Shield Included: Yes
Extended Bumper Stop: No
Extended Hydraulic Lockout: No
Extended Length: 23.84
Extended Length (in.): 23.840 in.
Finish: Painted
Fully Open Length: 23.840 in.
Lower Mount Type: Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/16" Pin Length (Hole Center to Center)
Lower Mounting Code: Cross Pin Mount - Closed Ended 0.3125 in. Hole ID (Both Ends) x 2.4375 in. Pin Length (Hole Center to Center)
Lower Mounting Description: Cross Pin Mount - Closed Ended; 5/16 Hole ID (Both Ends) x 2.7/16 Pin Length (Hole Center to Center)
Max Year Covered: 2006
Min Year Covered: 1984
Most Popular Make / Model: Jeep Grand Cherokee
Most Popular Make/Model: Jeep Grand Cherokee
Most Popular Year: 2000
Parts Pack(s): P01136
Product Grade: Premium
Reserve Tube Diameter: 2.180 in.
Shock Stroke: 9.410 in.
Shock Stroke (in.): 9.410
Total Part VIO: 2051521
Travel Length: 9.41
Upper Mount Type: Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Upper Mounting Code: Stem Mount - 2.375 in. Stem Length x 0.375 in. -16
Upper Mounting Description: Stem Mount - 2.3/8 Stem Length x 3/8-16 Thread Pitch
