Rancho · RS5221

Part #: RS5221
UPC: 039703522106

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Rancho

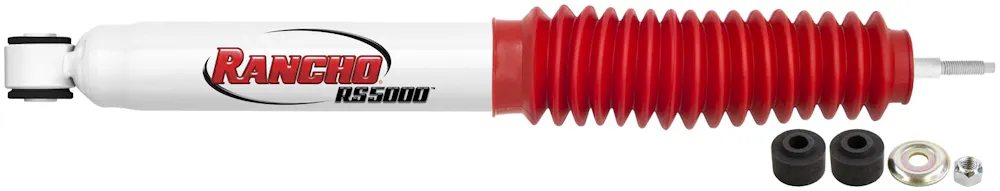

Description: RS5000 Shock Absorber; Rancho RS5221 Shock Absorber

This part number has been superseded by RS55221.

Description

The shock that started it all! Rancho RS5000 series has been the shock of choice for light trucks and sport utility vehicles since 1985. Available for stock and lifted applications, RS5000 is ideal for on and off-road use, at an affordable price. Covered by Rancho's limited lifetime warranty.

Features & benefits

Ten-stage velocity sensitive valving - Provides tuning specific for each vehicle
5/8-in. (16mm) diameter piston rod (select applications) - Adds strength and durability. Size varies by application.
1 3/8-in. (35mm) diameter piston (select applications) - Ensures performance in any environment
Protective boot included - Protects the shock rod and oil seal
Limited Lifetime Warranty - Guarantees your investment
Limited Lifetime Warranty

Information

Twin-Tube Construction; 10-Stage Velocity Sensitive Valving; 5/8in. Diameter Chrome Piston Rod; 1-3/8in. Diameter Piston; Protective Boot Included; Limited Lifetime Warranty

Application summary

Year	Make / model
1994-2010	Dodge Ram 1500
1994-2010	Dodge Ram 2500
1994-2010	Dodge Ram 3500
2011-2013	Ram 2500
2011-2012	Ram 3500

Specifications

GTIN: 00039703522106
Weight: 6.5 lb
Height: 3.31 in
Length: 24.25 in
Width: 3.31 in
EO: Legal US
Life cycle: Obsolete
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Adjustable: No
Adjustable Length: No
Body Diameter: 2.188
California Proposition 65: No
Collapsed Length: 14.530 in.
Collapsed Length (in.): 14.530
Compressed Bumper Stop: No
Compressed Length: 14.53
Cylinder Included: No
Dust Shield: Yes
Dust Shield Included: Yes
Extended Bumper Stop: No
Extended Hydraulic Lockout: No
Extended Length: 23.66
Extended Length (in.): 23.660 in.
Finish: Painted
Fully Open Length: 23.660 in.
Lower Mount Type: Loop Bushing & Sleeve Mount - 14MM Sleeve ID X 1.11/16" Sleeve OAL
Lower Mounting Code: Loop Bushing & Sleeve Mount - 14mm Sleeve ID x 1.6
Lower Mounting Description: Loop Bushing Sleeve Mount - 14MM Sleeve ID x 1.11/16 Sleeve OAL
Max Year Covered: 2013
Min Year Covered: 1994
Most Popular Make / Model: Dodge Ram 1500
Most Popular Make/Model: Dodge Ram 1500
Most Popular Year: 2001
Parts Pack(s): P01167
Product Grade: Premium
Reserve Tube Diameter: 2.188 in.
Shock Stroke: 9.130 in.
Shock Stroke (in.): 9.130
Total Part VIO: 2067562
Travel Length: 9.13
Upper Mount Type: Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch
Upper Mounting Code: Stem Mount - 2.625 in. Stem Length x 0.500 in. -13
Upper Mounting Description: Stem Mount - 2.5/8 Stem Length x 1/2-13 Thread Pitch
