Rancho · RS5215

Part #: RS5215
UPC: 039703521505

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Rancho

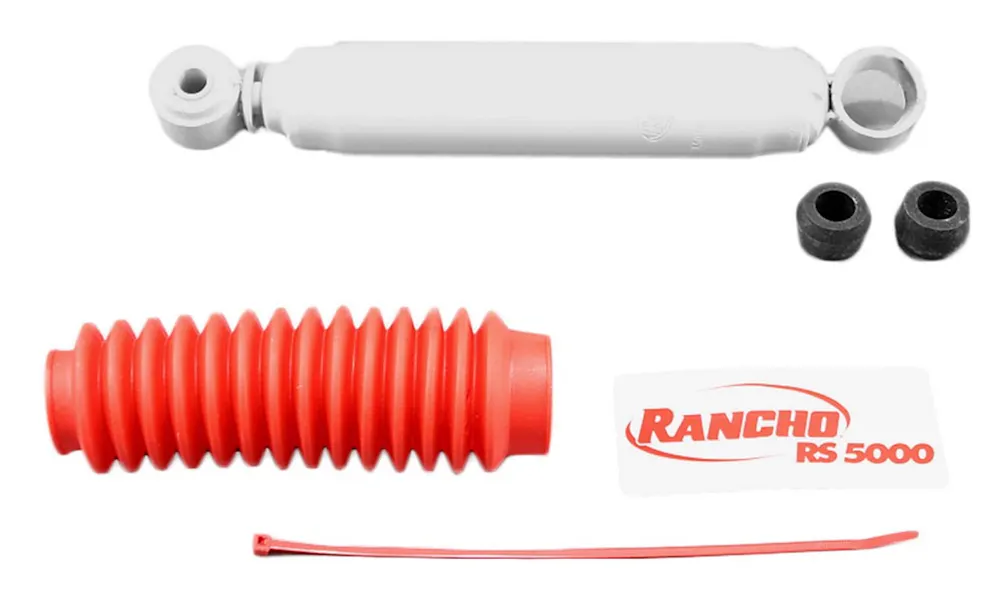

Description: RS5000 Shock; Rancho RS5000 RS5215 Shock Absorber

This part number has been superseded by RS55215.

Description

The shock that started it all! Rancho RS5000 series has been the shock of choice for light trucks and sport utility vehicles since 1985. Available for stock and lifted applications, RS5000 is ideal for on and off-road use, at an affordable price. Covered by Rancho's limited lifetime warranty.

Features & benefits

Ten-stage velocity sensitive valving - Provides tuning specific for each vehicle
5/8-in. (16mm) diameter piston rod (select applications) - Adds strength and durability. Size varies by application.
1 3/8-in. (35mm) diameter piston (select applications) - Ensures performance in any environment
Protective boot included - Protects the shock rod and oil seal
Limited Lifetime Warranty - Guarantees your investment
Limited Lifetime Warranty

Information

Twin-Tube Construction; 10-Stage Velocity Sensitive Valving; 5/8in. Diameter Chrome Piston Rod; 1-3/8in. Diameter Piston; Protective Boot Included; Limited Lifetime Warranty

Application summary

Year	Make / model
1996-1999	Acura SLX
1992-2002	Isuzu Trooper
1999-2001	Isuzu VehiCROSS

Specifications

GTIN: 00039703521505
Weight: 5.3 lb
Height: 24.25 in
Length: 3.31 in
Width: 3.31 in
EO: Legal US
Life cycle: Discontinued
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Adjustable: No
Adjustable Length: No
Body Diameter: 2.18
California Proposition 65: No
Collapsed Length: 12.830 in.
Collapsed Length (in.): 12.830
Compressed Bumper Stop: No
Compressed Length: 12.83
Cylinder Included: No
Dust Shield: Yes
Dust Shield Included: Yes
Extended Bumper Stop: Yes
Extended Hydraulic Lockout: No
Extended Length: 19.77
Extended Length (in.): 19.770 in.
Finish: Painted
Fully Open Length: 19.770 in.
Lower Mount Type: Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL
Lower Mounting Code: L3
Lower Mounting Description: Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL
Max Year Covered: 2002
Min Year Covered: 1992
Most Popular Make / Model: Isuzu Trooper
Most Popular Make/Model: Isuzu Trooper
Most Popular Year: 1999
Parts Pack: None
Parts Pack(s): None
Product Grade: Premium
Reserve Tube Diameter: 2.18
Shock Stroke: 6.940 in.
Shock Stroke (in.): 6.940
Total Part VIO: 45142
Travel Length: 6.94
Upper Mount Type: Loop Bushing & Sleeve Mount - 9/16" Sleeve ID X 1.1/2" Sleeve OAL
Upper Mounting Code: LS78
Upper Mounting Description: Loop Bushing & Sleeve Mount - 9/16" Sleeve ID X 1.1/2" Sleeve OAL
