Rancho · RS5207

Part #: RS5207
UPC: 039703520706

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Rancho

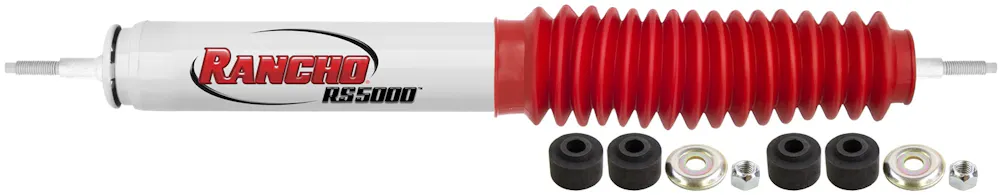

Description: RS5000 Shock; Rancho RS5000 RS5207 Shock Absorber

This part number has been superseded by RS55207.

Description

The shock that started it all! Rancho RS5000 series has been the shock of choice for light trucks and sport utility vehicles since 1985. Available for stock and lifted applications, RS5000 is ideal for on and off-road use, at an affordable price. Covered by Rancho's limited lifetime warranty.

Features & benefits

Ten-stage velocity sensitive valving - Provides tuning specific for each vehicle
5/8-in. (16mm) diameter piston rod (select applications) - Adds strength and durability. Size varies by application.
1 3/8-in. (35mm) diameter piston (select applications) - Ensures performance in any environment
Protective boot included - Protects the shock rod and oil seal
Limited Lifetime Warranty - Guarantees your investment
Limited Lifetime Warranty

Information

Twin-Tube Construction; 10-Stage Velocity Sensitive Valving; 5/8in. Diameter Chrome Piston Rod; 1-3/8in. Diameter Piston; Protective Boot Included; Limited Lifetime Warranty

Application summary

Year	Make / model
1996-1997	Lexus LX450
1990-1997	Toyota Land Cruiser

Specifications

GTIN: 00039703520706
Weight: 6.3 lb
Height: 24.25 in
Length: 3.31 in
Width: 3.31 in
EO: Legal US
Life cycle: Discontinued
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Adjustable: No
Adjustable Length: No
Body Diameter: 2.18
California Proposition 65: No
Collapsed Length: 14.350 in.
Collapsed Length (in.): 14.350
Compressed Bumper Stop: No
Compressed Length: 14.35
Cylinder Included: No
Dust Shield: Yes
Dust Shield Included: Yes
Extended Bumper Stop: No
Extended Hydraulic Lockout: No
Extended Length: 23.36
Extended Length (in.): 23.360 in.
Finish: Painted
Fully Open Length: 23.360 in.
Lower Mount Type: Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch
Lower Mounting Code: S5
Lower Mounting Description: Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch
Max Year Covered: 1997
Min Year Covered: 1990
Most Popular Make / Model: Toyota Land Cruiser
Most Popular Make/Model: Toyota Land Cruiser
Most Popular Year: 1997
Parts Pack: P01167
Parts Pack(s): P01167
Product Grade: Premium
Reserve Tube Diameter: 2.18
Shock Stroke: 9.010 in.
Shock Stroke (in.): 9.010
Total Part VIO: 42520
Travel Length: 9.01
Upper Mount Type: Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch
Upper Mounting Code: S5
Upper Mounting Description: Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch
