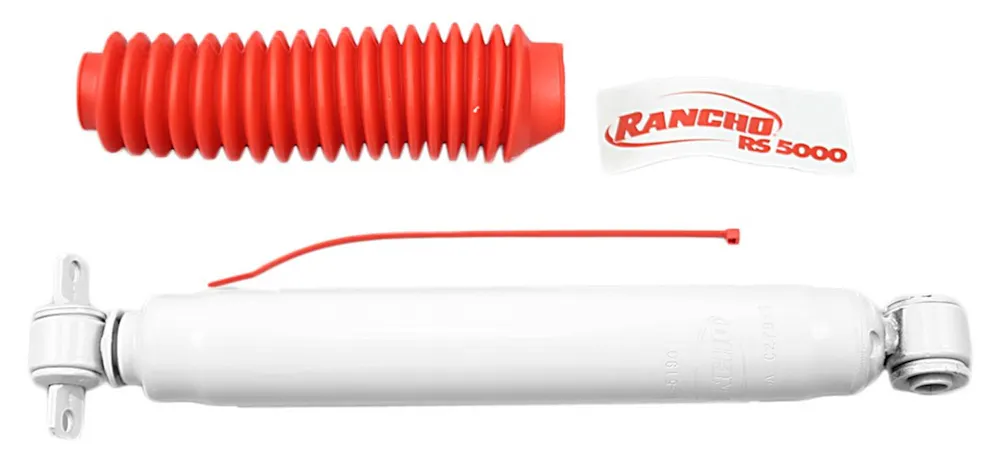

Rancho · RS5190
Part #: RS5190
UPC: 039703519007
Log in for inventory
Notify me when this item is in stock.
Description: RS5000 Shock Absorber; Rancho RS5190 Shock Absorber
Description:
This part number has been superseded by RS55190.
Description
The shock that started it all! Rancho RS5000 series has been the shock of choice for light trucks and sport utility vehicles since 1985. Available for stock and lifted applications, RS5000 is ideal for on and off-road use, at an affordable price. Covered by Rancho's limited lifetime warranty.
Features & benefits
- Ten-stage velocity sensitive valving - Provides tuning specific for each vehicle
- 5/8-in. (16mm) diameter piston rod (select applications) - Adds strength and durability. Size varies by application.
- 1 3/8-in. (35mm) diameter piston (select applications) - Ensures performance in any environment
- Protective boot included - Protects the shock rod and oil seal
- Limited Lifetime Warranty - Guarantees your investment
- Limited Lifetime Warranty
Information
Twin-Tube Construction; 10-Stage Velocity Sensitive Valving; 5/8in. Diameter Chrome Piston Rod; 1-3/8in. Diameter Piston; Protective Boot Included; Limited Lifetime Warranty
Application summary
| Year | Make / model |
|---|---|
| 1992-1997 | Chevrolet Blazer |
| 1999-2001 | Chevrolet Blazer |
| 2003-2005 | Chevrolet Blazer |
| 1988-1999 | Chevrolet C1500 |
| 1992-1999 | Chevrolet C1500 Suburban |
| 1988-2000 | Chevrolet C2500 |
| 1992-1999 | Chevrolet C2500 Suburban |
| 1988-2000 | Chevrolet C3500 |
| 1988-1999 | Chevrolet K1500 |
| 1992-1999 | Chevrolet K1500 Suburban |
| 1988-2000 | Chevrolet K2500 |
| 1988-2000 | Chevrolet K3500 |
| 1988 | Chevrolet R20 |
| 1989 | Chevrolet R2500 |
| 1988 | Chevrolet R30 |
| 1989-1991 | Chevrolet R3500 |
| 1994-2003 | Chevrolet S10 |
| 1995-2000 | Chevrolet Tahoe |
| 1988 | Chevrolet V10 Suburban |
| 1989-1991 | Chevrolet V1500 Suburban |
| 1988 | Chevrolet V30 |
| 1989-1991 | Chevrolet V3500 |
| 1988-1999 | GMC C1500 |
| 1992-1999 | GMC C1500 Suburban |
| 1988-2000 | GMC C2500 |
| 1992-1999 | GMC C2500 Suburban |
| 1988-2000 | GMC C3500 |
| 1995-1997 | GMC Jimmy |
| 1999-2005 | GMC Jimmy |
| 1988-1999 | GMC K1500 |
| 1992-1999 | GMC K1500 Suburban |
| 1988-2000 | GMC K2500 |
| 1988-2000 | GMC K3500 |
| 1988-1989 | GMC R2500 |
| 1988-1991 | GMC R3500 |
| 1994-2004 | GMC Sonoma |
| 1988-1991 | GMC V3500 |
| 1992-2000 | GMC Yukon |
Specifications
- GTIN
- 00039703519007
- Weight
- 6.15 lb
- Height
- 3.31 in
- Length
- 24.25 in
- Width
- 4.31 in
- EO
- Legal US
- Life cycle
- Obsolete
- AAM brand code
- RAN
- Warehouse brand code
- RAN
- AAIA brand code
- BCKM
Attributes
- Adjustable
- No
- Adjustable Length
- No
- Body Diameter
- 2.188
- California Proposition 65
- No
- Collapsed Length
- 15.980 in.
- Collapsed Length (in.)
- 15.980
- Compressed Bumper Stop
- No
- Compressed Length
- 15.98
- Cylinder Included
- No
- Dust Shield
- Yes
- Dust Shield Included
- Yes
- Extended Bumper Stop
- No
- Extended Hydraulic Lockout
- No
- Extended Length
- 26.36
- Extended Length (in.)
- 26.360 in.
- Finish
- Painted
- Fully Open Length
- 26.360 in.
- Lower Mount Type
- Loop Bushing & Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
- Lower Mounting Code
- Loop Bushing & Sleeve Mount - 0.5625 in. Sleeve ID
- Lower Mounting Description
- Loop Bushing Sleeve Mount - 9/16 Sleeve ID x 1.5/8 Sleeve OAL
- Max Year Covered
- 2005
- Min Year Covered
- 1988
- Most Popular Make / Model
- Chevrolet S10
- Most Popular Make/Model
- Chevrolet C1500
- Most Popular Year
- 1998
- Parts Pack(s)
- None
- Product Grade
- Premium
- Reserve Tube Diameter
- 2.188 in.
- Shock Stroke
- 10.380 in.
- Shock Stroke (in.)
- 10.380
- Total Part VIO
- 4858924
- Travel Length
- 10.38
- Upper Mount Type
- Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)
- Upper Mounting Code
- Cross Pin Mount - Closed Ended 0.3125 in. Hole ID
- Upper Mounting Description
- Cross Pin Mount - Closed Ended; 5/16 Hole ID (Both Ends) x 2.7/8 Pin Length (Hole Center to Center)
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1992-1997 Chevrolet Blazer; 1999-2001 Chevrolet Blazer; 2003-2005 Chevrolet Blazer; 1988-1999 Chevrolet C1500; 1992-1999 Chevrolet C1500 Suburban; 1988-2000 Chevrolet C2500; 1992-1999 Chevrolet C2500 Suburban; 1988-2000 Chevrolet C3500; 1988-1999 Chevrolet K1500; 1992-1999 Chevrolet K1500 Suburban; 1988-2000 Chevrolet K2500; 1988-2000 Chevrolet K3500; 1988 Chevrolet R20; 1989 Chevrolet R2500; 1988 Chevrolet R30; 1989-1991 Chevrolet R3500; 1994-2003 Chevrolet S10; 1995-2000 Chevrolet Tahoe; 1988 Chevrolet V10 Suburban; 1989-1991 Chevrolet V1500 Suburban; 1988 Chevrolet V30; 1989-1991 Chevrolet V3500; 1988-1999 GMC C1500; 1992-1999 GMC C1500 Suburban; 1988-2000 GMC C2500; 1992-1999 GMC C2500 Suburban; 1988-2000 GMC C3500; 1995-1997 GMC Jimmy; 1999-2005 GMC Jimmy; 1988-1999 GMC K1500; 1992-1999 GMC K1500 Suburban; 1988-2000 GMC K2500; 1988-2000 GMC K3500; 1988-1989 GMC R2500; 1988-1991 GMC R3500; 1994-2004 GMC Sonoma; 1988-1991 GMC V3500; 1992-2000 GMC Yukon
