Rancho · RS5185

Part #: RS5185
UPC: 039703518505

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Rancho

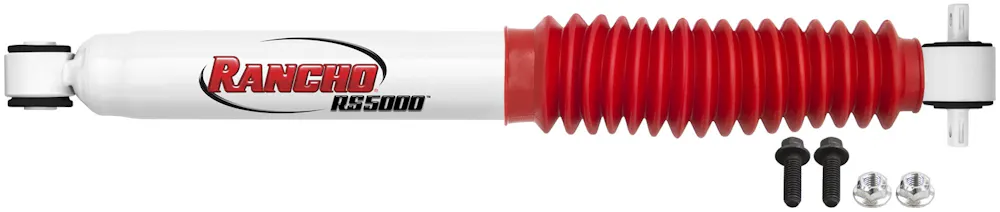

Description: RS5000 Shock Absorber; Rancho RS5185 Shock Absorber

This part number has been superseded by RS55185.

Description

The shock that started it all! Rancho RS5000 series has been the shock of choice for light trucks and sport utility vehicles since 1985. Available for stock and lifted applications, RS5000 is ideal for on and off-road use, at an affordable price. Covered by Rancho's limited lifetime warranty.

Features & benefits

Ten-stage velocity sensitive valving - Provides tuning specific for each vehicle
5/8-in. (16mm) diameter piston rod (select applications) - Adds strength and durability. Size varies by application.
1 3/8-in. (35mm) diameter piston (select applications) - Ensures performance in any environment
Protective boot included - Protects the shock rod and oil seal
Limited Lifetime Warranty - Guarantees your investment
Limited Lifetime Warranty

Information

Twin-Tube Construction; 10-Stage Velocity Sensitive Valving; 5/8in. Diameter Chrome Piston Rod; 1-3/8in. Diameter Piston; Protective Boot Included; Limited Lifetime Warranty

Application summary

Year	Make / model
1991-2001	Ford Explorer
2001-2005	Ford Explorer Sport Trac
1991-1994	Mazda Navajo
1997-2001	Mercury Mountaineer

Specifications

GTIN: 00039703518505
Weight: 6.26 lb
Height: 3.31 in
Length: 24.25 in
Width: 4.31 in
EO: Legal US
Life cycle: Obsolete
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Adjustable: No
Adjustable Length: No
Body Diameter: 2.18
California Proposition 65: No
Collapsed Length: 15.280 in.
Collapsed Length (in.): 15.280
Compressed Bumper Stop: No
Compressed Length: 15.28
Cylinder Included: No
Dust Shield: Yes
Dust Shield Included: Yes
Extended Bumper Stop: No
Extended Hydraulic Lockout: No
Extended Length: 25.35
Extended Length (in.): 25.350 in.
Finish: Painted
Fully Open Length: 25.350 in.
Lower Mount Type: Loop Bushing & Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL
Lower Mounting Code: Loop Bushing & Sleeve Mount - 0.500 in. Sleeve ID
Lower Mounting Description: Loop Bushing & Sleeve Mount - 1/2 Sleeve ID X 1.1/2 Sleeve OAL
Max Year Covered: 2005
Min Year Covered: 1991
Most Popular Make / Model: Ford Explorer
Most Popular Make/Model: Ford Explorer
Most Popular Year: 2002
Parts Pack(s): P00941
Product Grade: Premium
Reserve Tube Diameter: 2.180 in.
Shock Stroke: 10.070 in.
Shock Stroke (in.): 10.070
Total Part VIO: 1122617
Travel Length: 10.070
Upper Mount Type: Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)
Upper Mounting Code: Cross Pin Mount - Closed Ended 0.3125 in. Hole ID
Upper Mounting Description: Cross Pin Mount - Closed Ended; 5/16 Hole ID (Both Ends) x 2.7/8 Pin Length (Hole Center to Center)
