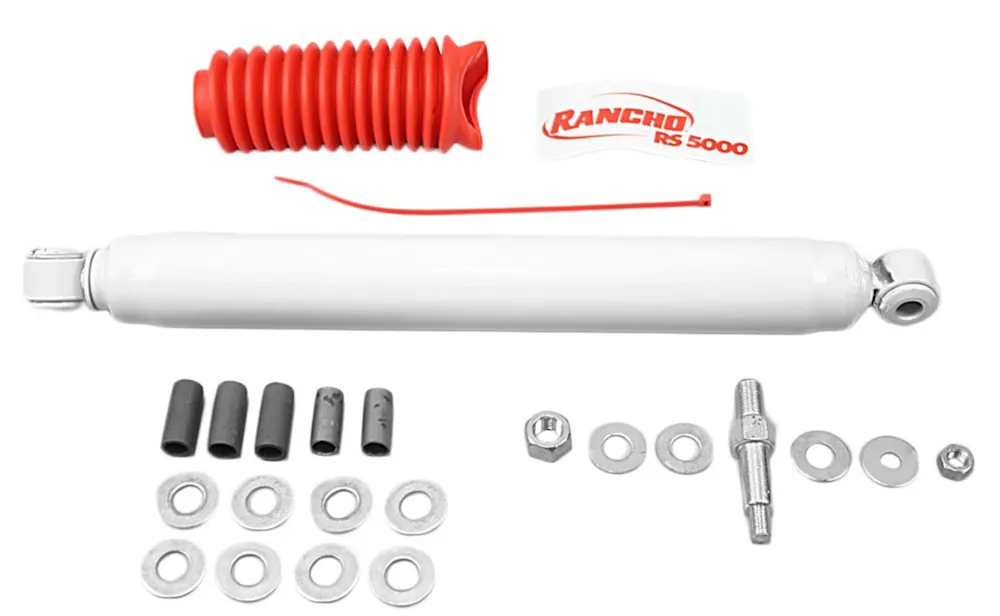

Rancho · RS5134
Part #: RS5134
UPC: 039703513401
Log in for inventory
Notify me when this item is in stock.
Description: RS5000 Shock; Rancho RS5000 RS5134 Shock Absorber
Description:
This part number has been superseded by RS55134.
Description
The shock that started it all! Rancho RS5000 series has been the shock of choice for light trucks and sport utility vehicles since 1985. Available for stock and lifted applications, RS5000 is ideal for on and off-road use, at an affordable price. Covered by Rancho's limited lifetime warranty.
Features & benefits
- Ten-stage velocity sensitive valving - Provides tuning specific for each vehicle
- 5/8-in. (16mm) diameter piston rod (select applications) - Adds strength and durability. Size varies by application.
- 1 3/8-in. (35mm) diameter piston (select applications) - Ensures performance in any environment
- Protective boot included - Protects the shock rod and oil seal
- Limited Lifetime Warranty - Guarantees your investment
- Limited Lifetime Warranty
Information
Twin-Tube Construction; 10-Stage Velocity Sensitive Valving; 5/8in. Diameter Chrome Piston Rod; 1-3/8in. Diameter Piston; Protective Boot Included; Limited Lifetime Warranty
Application summary
| Year | Make / model |
|---|---|
| 1977-1986 | Chevrolet K30 |
| 1988-1991 | Chevrolet K3500 |
| 1987-1988 | Chevrolet V30 |
| 1989-1991 | Chevrolet V3500 |
| 1977-1978 | GMC K35 |
| 1979-1986 | GMC K3500 |
| 1988-1991 | GMC K3500 |
| 1987-1991 | GMC V3500 |
Specifications
- GTIN
- 00039703513401
- Weight
- 7.8 lb
- Height
- 24.25 in
- Length
- 3.31 in
- Width
- 3.31 in
- EO
- Legal US
- Life cycle
- Discontinued
- AAM brand code
- RAN
- Warehouse brand code
- RAN
- AAIA brand code
- BCKM
Attributes
- Adjustable
- No
- Adjustable Length
- No
- Body Diameter
- 2.18
- California Proposition 65
- No
- Collapsed Length
- 19.150 in.
- Collapsed Length (in.)
- 19.150
- Compressed Bumper Stop
- No
- Compressed Length
- 19.15
- Dust Shield
- Yes
- Dust Shield Included
- Yes
- Extended Bumper Stop
- No
- Extended Hydraulic Lockout
- No
- Extended Length
- 32.7
- Extended Length (in.)
- 32.700 in.
- Finish
- Painted
- Fully Open Length
- 32.700 in.
- Lower Mount Type
- Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
- Lower Mounting Code
- L1
- Lower Mounting Description
- Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
- Max Year Covered
- 1991
- Min Year Covered
- 1977
- Most Popular Make / Model
- Chevrolet K30
- Most Popular Make/Model
- Chevrolet K30
- Most Popular Year
- 1986
- Parts Pack
- P00915,P00934
- Parts Pack(s)
- P00915,P00934
- Product Grade
- Premium
- Reserve Tube Diameter
- 2.18
- Shock Stroke
- 13.550 in.
- Shock Stroke (in.)
- 13.550
- Total Part VIO
- 46650
- Travel Length
- 13.55
- Upper Mount Type
- Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
- Upper Mounting Code
- L1
- Upper Mounting Description
- Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1977-1986 Chevrolet K30; 1988-1991 Chevrolet K3500; 1987-1988 Chevrolet V30; 1989-1991 Chevrolet V3500; 1977-1978 GMC K35; 1979-1986 GMC K3500; 1988-1991 GMC K3500; 1987-1991 GMC V3500
Resources
- Brand logo
- Installation Instructions
- Logo Image
- Material Safety Data Sheet
- Photo - Primary
- Your Adventure Starts with Hunting and Rancho
- Your Adventure Starts with Paddleboarding and Rancho
- Your Adventure Starts with Mountain Biking and Rancho
- About Rancho®
- Your Adventure Starts with Fishing and Rancho
- Your Adventure Starts with Off-Roading and Rancho
- Your Adventure Starts with Rancho
- Warranty
