Rancho · RS5124

Rancho RS5124

Part #: RS5124
UPC: 039703512404

Log in for inventory
Notify me when this item is in stock.

Brand: Rancho
Log in to order

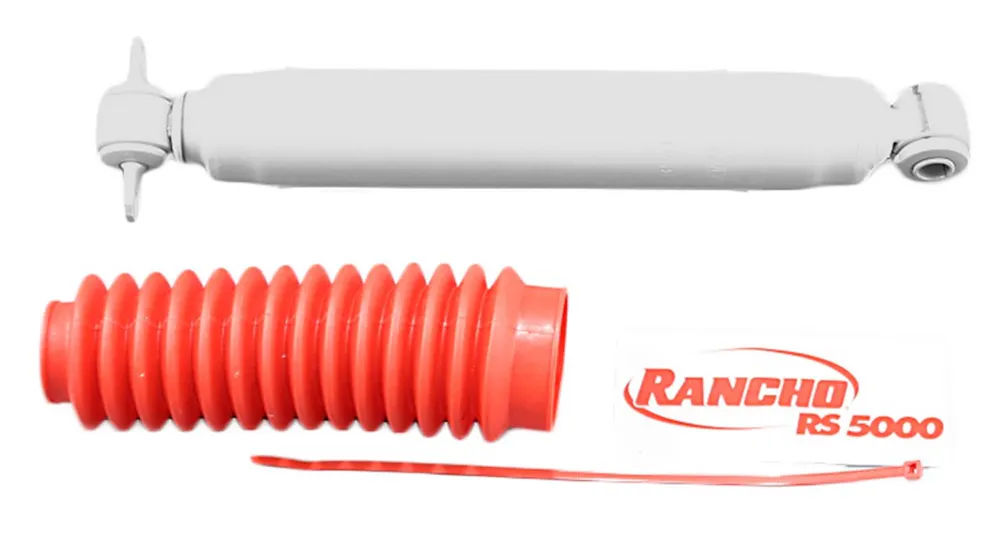

Description: RS5000 Shock Absorber; Rancho RS5124 Shock Absorber

Description:

This part number has been superseded by RS55124.

Description

The shock that started it all! Rancho RS5000 series has been the shock of choice for light trucks and sport utility vehicles since 1985. Available for stock and lifted applications, RS5000 is ideal for on and off-road use, at an affordable price. Covered by Rancho's limited lifetime warranty.

Features & benefits

  • Ten-stage velocity sensitive valving - Provides tuning specific for each vehicle
  • 5/8-in. (16mm) diameter piston rod (select applications) - Adds strength and durability. Size varies by application.
  • 1 3/8-in. (35mm) diameter piston (select applications) - Ensures performance in any environment
  • Protective boot included - Protects the shock rod and oil seal
  • Limited Lifetime Warranty - Guarantees your investment
  • Limited Lifetime Warranty

Information

Twin-Tube Construction; 10-Stage Velocity Sensitive Valving; 5/8in. Diameter Chrome Piston Rod; 1-3/8in. Diameter Piston; Protective Boot Included; Limited Lifetime Warranty

Application summary

Year Make / model
1999-2000 Cadillac Escalade
1992-2005 Chevrolet Blazer
1992-1999 Chevrolet K1500 Suburban
1992-1999 Chevrolet K2500 Suburban
1982-2004 Chevrolet S10
1983-1994 Chevrolet S10 Blazer
1995-2000 Chevrolet Tahoe
1987-1996 Dodge Dakota
1992 GMC Jimmy
1995-2005 GMC Jimmy
1992-1999 GMC K1500 Suburban
1992-1999 GMC K2500 Suburban
1983-1990 GMC S15
1983-1991 GMC S15 Jimmy
1991-2004 GMC Sonoma
1992-2000 GMC Yukon
1998-2000 Isuzu Hombre
1991-1994 Oldsmobile Bravada
1996-2001 Oldsmobile Bravada

Specifications

GTIN
00039703512404
Weight
5.85 lb
Height
3.31 in
Length
24.25 in
Width
4.31 in
EO
Legal US
Life cycle
Obsolete
AAM brand code
RAN
Warehouse brand code
RAN
AAIA brand code
BCKM

Attributes

Adjustable
No
Adjustable Length
No
Body Diameter
2.188
California Proposition 65
No
Collapsed Length
14.860 in.
Collapsed Length (in.)
14.860
Compressed Bumper Stop
No
Compressed Length
14.86
Cylinder Included
No
Dust Shield
Yes
Dust Shield Included
Yes
Extended Bumper Stop
No
Extended Hydraulic Lockout
No
Extended Length
23.67
Extended Length (in.)
23.670 in.
Finish
Painted
Fully Open Length
23.670 in.
Lower Mount Type
Loop Bushing & Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Lower Mounting Code
Loop Bushing & Sleeve Mount - 0.5625 in. Sleeve ID
Lower Mounting Description
Loop Bushing Sleeve Mount - 9/16 Sleeve ID x 1.5/8 Sleeve OAL
Max Year Covered
2005
Min Year Covered
1982
Most Popular Make / Model
Chevrolet S10
Most Popular Make/Model
Chevrolet S10
Most Popular Year
1999
Parts Pack(s)
None
Product Grade
Premium
Reserve Tube Diameter
2.188 in.
Shock Stroke
8.810 in.
Shock Stroke (in.)
8.810
Total Part VIO
3004269
Travel Length
8.81
Upper Mount Type
Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)
Upper Mounting Code
Cross Pin Mount - Closed Ended 0.3125 in. Hole ID
Upper Mounting Description
Cross Pin Mount - Closed Ended; 5/16 Hole ID (Both Ends) x 2.7/8 Pin Length (Hole Center to Center)

Fitment status

It is unknown whether this product will fit your application.

Application summary

1999-2000 Cadillac Escalade; 1992-2005 Chevrolet Blazer; 1992-1999 Chevrolet K1500 Suburban; 1992-1999 Chevrolet K2500 Suburban; 1982-2004 Chevrolet S10; 1983-1994 Chevrolet S10 Blazer; 1995-2000 Chevrolet Tahoe; 1987-1996 Dodge Dakota; 1992 GMC Jimmy; 1995-2005 GMC Jimmy; 1992-1999 GMC K1500 Suburban; 1992-1999 GMC K2500 Suburban; 1983-1990 GMC S15; 1983-1991 GMC S15 Jimmy; 1991-2004 GMC Sonoma; 1992-2000 GMC Yukon; 1998-2000 Isuzu Hombre; 1991-1994 Oldsmobile Bravada; 1996-2001 Oldsmobile Bravada
