Rancho · RS5046

Rancho RS5046

Part #: RS5046
UPC: 039703504607

Log in for inventory
Notify me when this item is in stock.

Brand: Rancho
Log in to order

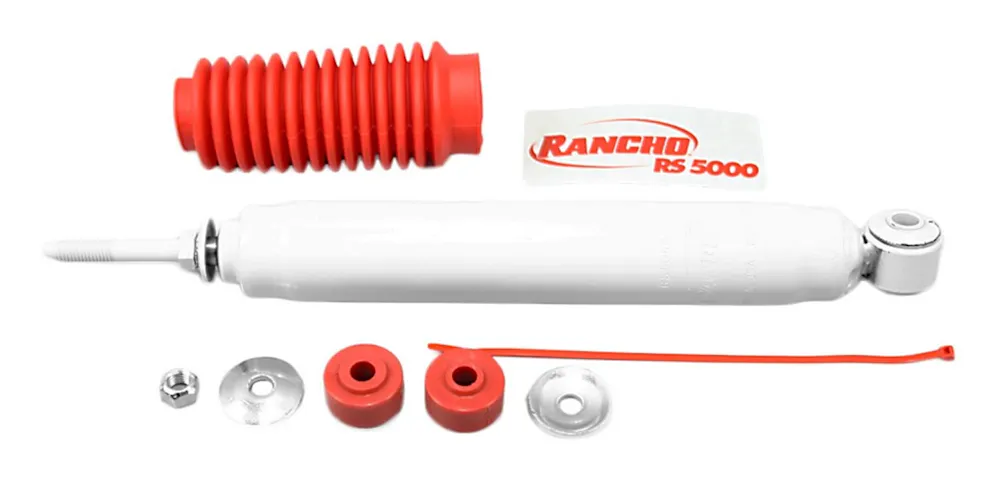

Description: RS5000 Shock Absorber; Rancho RS5046 Shock Absorber

Description:

This part number has been superseded by RS55046.

Description

The shock that started it all! Rancho RS5000 series has been the shock of choice for light trucks and sport utility vehicles since 1985. Available for stock and lifted applications, RS5000 is ideal for on and off-road use, at an affordable price. Covered by Rancho's limited lifetime warranty.

Features & benefits

  • Ten-stage velocity sensitive valving - Provides tuning specific for each vehicle
  • 5/8-in. (16mm) diameter piston rod (select applications) - Adds strength and durability. Size varies by application.
  • 1 3/8-in. (35mm) diameter piston (select applications) - Ensures performance in any environment
  • Protective boot included - Protects the shock rod and oil seal
  • Limited Lifetime Warranty - Guarantees your investment
  • Limited Lifetime Warranty

Information

Twin-Tube Construction; 10-Stage Velocity Sensitive Valving; 5/8in. Diameter Chrome Piston Rod; 1-3/8in. Diameter Piston; Protective Boot Included; Limited Lifetime Warranty

Application summary

Year Make / model
2005-2016 Ford F-250 Super Duty
2005-2016 Ford F-350 Super Duty

Specifications

GTIN
00039703504607
Weight
6 lb
Height
3.31 in
Length
24.25 in
Width
3.31 in
EO
Legal US
Life cycle
Obsolete
AAM brand code
RAN
Warehouse brand code
RAN
AAIA brand code
BCKM

Attributes

Adjustable
No
Adjustable Length
No
Body Diameter
2.18
California Proposition 65
No
Collapsed Length
16.480 in.
Collapsed Length (in.)
16.480
Compressed Bumper Stop
No
Compressed Length
16.48
Cylinder Included
No
Dust Shield
Yes
Dust Shield Included
Yes
Extended Bumper Stop
No
Extended Hydraulic Lockout
No
Extended Length
27.12
Extended Length (in.)
27.120 in.
Finish
Painted
Fully Open Length
27.120 in.
Lower Mount Type
Loop Bushing & Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL
Lower Mounting Code
Loop Bushing & Sleeve Mount - 12mm Sleeve ID x 1.5
Lower Mounting Description
Loop Bushing Sleeve Mount - 12MM Sleeve ID x 1.1/2 Sleeve OAL
Max Year Covered
2016
Min Year Covered
2005
Most Popular Make / Model
Ford F-250 Super Duty
Most Popular Make/Model
Ford F-250 Super Duty
Most Popular Year
2008
Parts Pack(s)
None
Product Grade
Premium
Reserve Tube Diameter
2.180 in.
Shock Stroke
10.640 in.
Shock Stroke (in.)
10.640
Total Part VIO
449822
Travel Length
10.64
Upper Mount Type
Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Code
Loop Bushing Mount - 0.625 in. Bushing ID x 1.3125
Upper Mounting Description
Loop Bushing Mount - 5/8 Bushing ID x 1.5/16 Bushing OAL

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2005-2016 Ford F-250 Super Duty; 2005-2016 Ford F-350 Super Duty
