Rancho · RS5010

Part #: RS5010
UPC: 039703501002

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Rancho

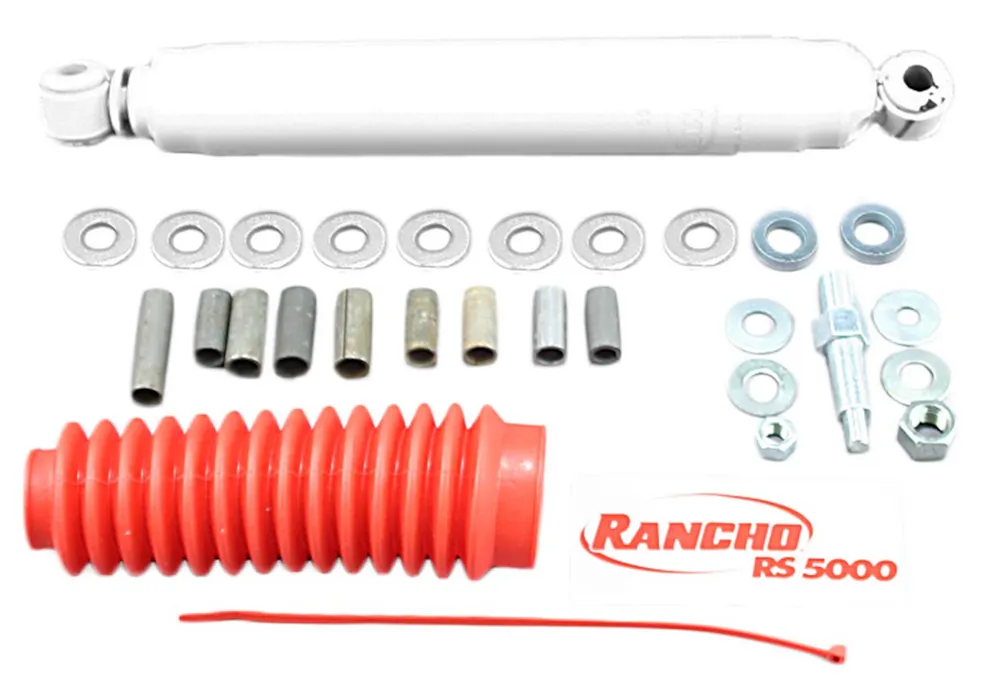

Description: RS5000 Shock Absorber; Rancho RS5000 RS5010 Shock Absorber

This part number has been superseded by RS55010.

Description

The shock that started it all! Rancho RS5000 series has been the shock of choice for light trucks and sport utility vehicles since 1985. Available for stock and lifted applications, RS5000 is ideal for on and off-road use, at an affordable price. Covered by Rancho's limited lifetime warranty.

Features & benefits

Ten-stage velocity sensitive valving - Provides tuning specific for each vehicle
5/8-in. (16mm) diameter piston rod (select applications) - Adds strength and durability. Size varies by application.
1 3/8-in. (35mm) diameter piston (select applications) - Ensures performance in any environment
Protective boot included - Protects the shock rod and oil seal
Limited Lifetime Warranty - Guarantees your investment
Limited Lifetime Warranty

Information

Twin-Tube Construction; 10-Stage Velocity Sensitive Valving; 5/8in. Diameter Chrome Piston Rod; 1-3/8in. Diameter Piston; Protective Boot Included; Limited Lifetime Warranty

Application summary

Year	Make / model
1997-2004	Dodge Dakota
1998-2003	Dodge Durango
1983-1992	Ford Ranger
1994-1997	Mazda B3000
1994-1997	Mazda B4000

Specifications

GTIN: 00039703501002
Weight: 7.15 lb
Height: 24.25 in
Length: 3.31 in
Width: 3.31 in
EO: Legal US
Life cycle: Obsolete
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Adjustable: No
Adjustable Length: No
Body Diameter: 2.18
California Proposition 65: No
Collapsed Length: 15.900 in.
Collapsed Length (in.): 15.900
Compressed Bumper Stop: No
Compressed Length: 15.9
Cylinder Included: No
Dust Shield: Yes
Dust Shield Included: Yes
Extended Bumper Stop: No
Extended Hydraulic Lockout: No
Extended Length: 26.27
Extended Length (in.): 26.270 in.
Finish: Painted
Fully Open Length: 26.270 in.
Lower Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Code: Loop Bushing Mount - 0.625 in. Bushing ID x 1.3125
Lower Mounting Description: Loop Bushing Mount - 5/8 Bushing ID x 1.5/16 Bushing OAL
Max Year Covered: 2004
Min Year Covered: 1983
Most Popular Make / Model: Dodge Dakota
Most Popular Make/Model: Dodge Dakota
Most Popular Year: 2000
Parts Pack(s): P00915,P01057,P00920
Product Grade: Premium
Reserve Tube Diameter: 2.180 in.
Shock Stroke: 10.370 in.
Shock Stroke (in.): 10.370
Total Part VIO: 838051
Travel Length: 10.37
Upper Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Upper Mounting Code: Loop Bushing Mount - 0.625 in. Bushing ID x 1.3125
Upper Mounting Description: Loop Bushing Mount - 5/8 Bushing ID x 1.5/16 Bushing OAL
