Rancho · RS5009

Part #: RS5009
UPC: 039703500906

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Rancho

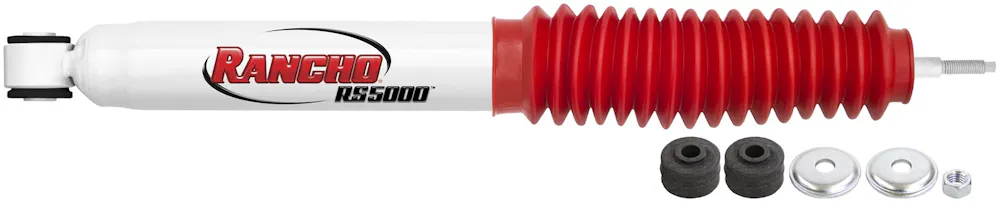

Description: RS5000 Shock Absorber; Rancho RS5009 Shock Absorber

This part number has been superseded by RS55009.

Description

The shock that started it all! Rancho RS5000 series has been the shock of choice for light trucks and sport utility vehicles since 1985. Available for stock and lifted applications, RS5000 is ideal for on and off-road use, at an affordable price. Covered by Rancho's limited lifetime warranty.

Features & benefits

Ten-stage velocity sensitive valving - Provides tuning specific for each vehicle
5/8-in. (16mm) diameter piston rod (select applications) - Adds strength and durability. Size varies by application.
1 3/8-in. (35mm) diameter piston (select applications) - Ensures performance in any environment
Protective boot included - Protects the shock rod and oil seal
Limited Lifetime Warranty - Guarantees your investment
Limited Lifetime Warranty

Information

Twin-Tube Construction; 10-Stage Velocity Sensitive Valving; 5/8in. Diameter Chrome Piston Rod; 1-3/8in. Diameter Piston; Protective Boot Included; Limited Lifetime Warranty

Application summary

Year	Make / model
1970-1974	Ford F-100
1975-1979	Ford F-150
1970-1979	Ford F-250

Specifications

GTIN: 00039703500906
Weight: 6.5 lb
Height: 3.31 in
Length: 24.25 in
Width: 3.31 in
EO: Legal US
Life cycle: Obsolete
AAM brand code: RAN
Warehouse brand code: RAN
AAIA brand code: BCKM

Attributes

Adjustable: No
Adjustable Length: No
Body Diameter: 2.188
California Proposition 65: No
Collapsed Length: 15.680 in.
Collapsed Length (in.): 15.680
Compressed Bumper Stop: No
Compressed Length: 15.68
Cylinder Included: No
Dust Shield: Yes
Dust Shield Included: Yes
Extended Bumper Stop: No
Extended Hydraulic Lockout: No
Extended Length: 26.31
Extended Length (in.): 26.310 in.
Finish: Painted
Fully Open Length: 26.310 in.
Lower Mount Type: Loop Bushing & Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL
Lower Mounting Code: Loop Bushing & Sleeve Mount - 0.500 in. Sleeve ID
Lower Mounting Description: Loop Bushing & Sleeve Mount - 1/2 Sleeve ID X 1.1/2 Sleeve OAL
Max Year Covered: 1979
Min Year Covered: 1970
Most Popular Make / Model: Ford F-100
Most Popular Make/Model: Ford F-100
Most Popular Year: 1979
Parts Pack(s): P01134
Product Grade: Premium
Reserve Tube Diameter: 2.188 in.
Shock Stroke: 10.630 in.
Shock Stroke (in.): 10.630
Total Part VIO: 325554
Travel Length: 10.63
Upper Mount Type: Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Upper Mounting Code: Stem Mount - 2.375 in. Stem Length x 0.375 in. -16
Upper Mounting Description: Stem Mount - 2.3/8 Stem Length x 3/8-16 Thread Pitch
