Motive Gear / KIT 513067
Part #: KIT 513067
UPC: 698231563755
Loading...
Notify me when this item is in stock.
Description: Complete Axle Differential Bearing and Seal Kit includes all components for prof; This Axle Differential Bearing and Seal Kit contains all OEM-spec components needed for a complete, professional repair in a single part number. Reduces comebacks and saves time versus sourcing individual parts.
Description:
Description
Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner's circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.
Features & benefits
- Components are matched and tested to work together as a system, providing consistent performance and reliability.
- Contains all OEM-spec components required for a complete, professional repair in a single part number, reducing ordering complexity for shops and fleets.
- Eliminates the risk of missing components during repair, reducing the chance of comebacks and ensuring complete system restoration.
- Manufactured to OEM specifications, ensuring correct fit and function for a reliable, long-lasting repair on commercial vehicles.
- Saves time compared to sourcing individual parts, improving bay efficiency and reducing vehicle downtime for fleet operators.
Information
AXLE BRG & SEAL OD2.79-ID1.61
Application summary
| Year | Make / model |
|---|---|
| 2004-2007 | Buick Rainier |
| 1999-2000 | Cadillac Escalade |
| 2002-2013 | Cadillac Escalade |
| 2003-2013 | Cadillac Escalade ESV |
| 2002-2013 | Cadillac Escalade EXT |
| 2003-2005 | Chevrolet Astro |
| 2007-2013 | Chevrolet Avalanche |
| 2002-2006 | Chevrolet Avalanche 1500 |
| 1992-1994 | Chevrolet Blazer |
| 1988-1999 | Chevrolet C1500 |
| 1992-1999 | Chevrolet C1500 Suburban |
| 2004-2013 | Chevrolet Colorado |
| 2015-2020 | Chevrolet Colorado |
| 1996-2013 | Chevrolet Express 1500 |
| 1988-1999 | Chevrolet K1500 |
| 1992-1999 | Chevrolet K1500 Suburban |
| 1995-2003 | Chevrolet S10 |
| 1992-1994 | Chevrolet S10 Blazer |
| 1999-2024 | Chevrolet Silverado 1500 |
| 2007 | Chevrolet Silverado 1500 Classic |
| 2019 | Chevrolet Silverado 1500 LD |
| 2022 | Chevrolet Silverado 1500 LTD |
| 2022 | Chevrolet Silverado 1500 Nueva |
| 2003-2006 | Chevrolet SSR |
| 2000-2013 | Chevrolet Suburban 1500 |
| 1995-2013 | Chevrolet Tahoe |
| 2002-2009 | Chevrolet Trailblazer |
| 2002-2006 | Chevrolet Trailblazer EXT |
| 1988-1999 | GMC C1500 |
| 1992-1999 | GMC C1500 Suburban |
| 2004-2012 | GMC Canyon |
| 2015-2020 | GMC Canyon |
| 2002-2009 | GMC Envoy |
| 2002-2006 | GMC Envoy XL |
| 2004-2005 | GMC Envoy XUV |
| 1988-1999 | GMC K1500 |
| 1992-1999 | GMC K1500 Suburban |
| 2003-2005 | GMC Safari |
| 1996-2013 | GMC Savana 1500 |
| 2014-2024 | GMC Sierra |
| 1999-2024 | GMC Sierra 1500 |
| 2007 | GMC Sierra 1500 Classic |
| 2019 | GMC Sierra 1500 Limited |
| 2022 | GMC Sierra 1500 Limited |
| 2022 | GMC Sierra Nueva |
| 1995-2003 | GMC Sonoma |
| 1992-2013 | GMC Yukon |
| 2000-2013 | GMC Yukon XL 1500 |
| 2006-2010 | Hummer H3 |
| 2009-2010 | Hummer H3T |
| 2003-2008 | Isuzu Ascender |
| 2006 | Isuzu i-280 |
| 2007-2008 | Isuzu i-290 |
| 2006 | Isuzu i-350 |
| 2007-2008 | Isuzu i-370 |
| 2002-2004 | Oldsmobile Bravada |
| 2005-2009 | Saab 9-7x |
Specifications
- GTIN
- 00698231563755
- Weight
- 7 lb
- Height
- 1.7 in
- Length
- 8.1 in
- Width
- 7.9 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MOT
- Warehouse brand code
- MOT
- AAIA brand code
- BHHD
Attributes
- App/Model
- GM 8.625"
- Bearing Inside Diameter
- 1.6178
- Bearing Maximum Inside Diameter
- 1.6178
- Bearing Maximum Outside Diameter
- 2.8012
- Bearing Maximum Width
- 1.03
- Bearing Outside Diameter
- 2.8012
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Differential Case Design Type
- GM 8.625
- Position
- Rear
- Seal Inside Diameter
- 1.6181
- Seal Maximum Inside Diameter
- 1.6181
- Seal Maximum Outside Diameter
- 2.8491
- Seal Outside Diameter
- 2.8491
- Seal Width
- 0.5
- Side
- Right (Passenger)
- Taxonomy A
- LD Differential
- Taxonomy B
- Axle Bearing & Seal Kit
- Taxonomy C
- Rear Axle
- Taxonomy D
- Right (Passenger)"
- Title
- Axle Bearing and Seal Kit
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2004-2007 Buick Rainier; 1999-2000 Cadillac Escalade; 2002-2013 Cadillac Escalade; 2003-2013 Cadillac Escalade ESV; 2002-2013 Cadillac Escalade EXT; 2003-2005 Chevrolet Astro; 2007-2013 Chevrolet Avalanche; 2002-2006 Chevrolet Avalanche 1500; 1992-1994 Chevrolet Blazer; 1988-1999 Chevrolet C1500; 1992-1999 Chevrolet C1500 Suburban; 2004-2013 Chevrolet Colorado; 2015-2020 Chevrolet Colorado; 1996-2013 Chevrolet Express 1500; 1988-1999 Chevrolet K1500; 1992-1999 Chevrolet K1500 Suburban; 1995-2003 Chevrolet S10; 1992-1994 Chevrolet S10 Blazer; 1999-2024 Chevrolet Silverado 1500; 2007 Chevrolet Silverado 1500 Classic; 2019 Chevrolet Silverado 1500 LD; 2022 Chevrolet Silverado 1500 LTD; 2022 Chevrolet Silverado 1500 Nueva; 2003-2006 Chevrolet SSR; 2000-2013 Chevrolet Suburban 1500; 1995-2013 Chevrolet Tahoe; 2002-2009 Chevrolet Trailblazer; 2002-2006 Chevrolet Trailblazer EXT; 1988-1999 GMC C1500; 1992-1999 GMC C1500 Suburban; 2004-2012 GMC Canyon; 2015-2020 GMC Canyon; 2002-2009 GMC Envoy; 2002-2006 GMC Envoy XL; 2004-2005 GMC Envoy XUV; 1988-1999 GMC K1500; 1992-1999 GMC K1500 Suburban; 2003-2005 GMC Safari; 1996-2013 GMC Savana 1500; 2014-2024 GMC Sierra; 1999-2024 GMC Sierra 1500; 2007 GMC Sierra 1500 Classic; 2019 GMC Sierra 1500 Limited; 2022 GMC Sierra 1500 Limited; 2022 GMC Sierra Nueva; 1995-2003 GMC Sonoma; 1992-2013 GMC Yukon; 2000-2013 GMC Yukon XL 1500; 2006-2010 Hummer H3; 2009-2010 Hummer H3T; 2003-2008 Isuzu Ascender; 2006 Isuzu i-280; 2007-2008 Isuzu i-290; 2006 Isuzu i-350; 2007-2008 Isuzu i-370; 2002-2004 Oldsmobile Bravada; 2005-2009 Saab 9-7x
Resources
- Brand logo
- Hazardous Materials Info Sheet
- Motive Gear Rear Ring & Pinion Install - Jeep TJ Sahara
- Motive Gear Front Ring & Pinion Install - Jeep JT Gladiator
- Motive Gear Rear Ring & Pinion Install - Jeep JT Gladiator
- Logo Image
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Primary
- Regulatory Content Label
- Differential Components #jeeps #offroad #offroading
- S and S Truck Parts Introduction Video

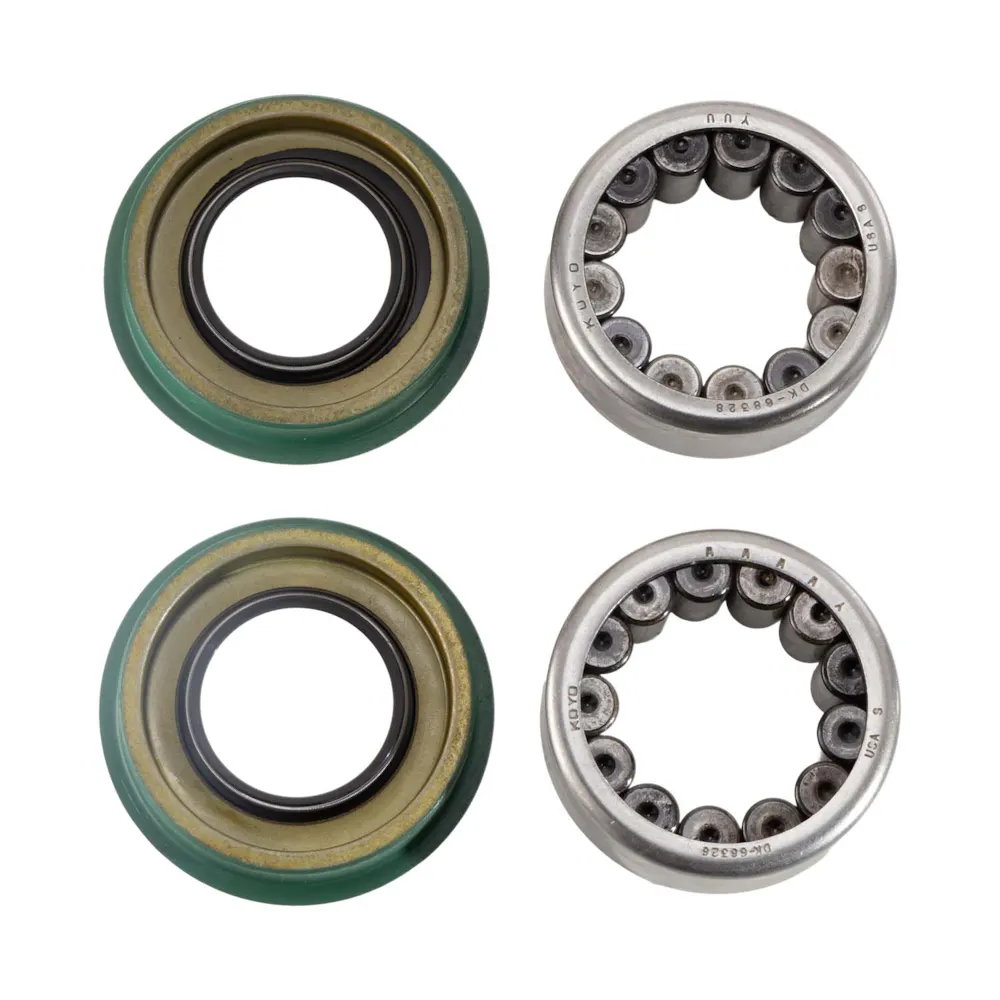

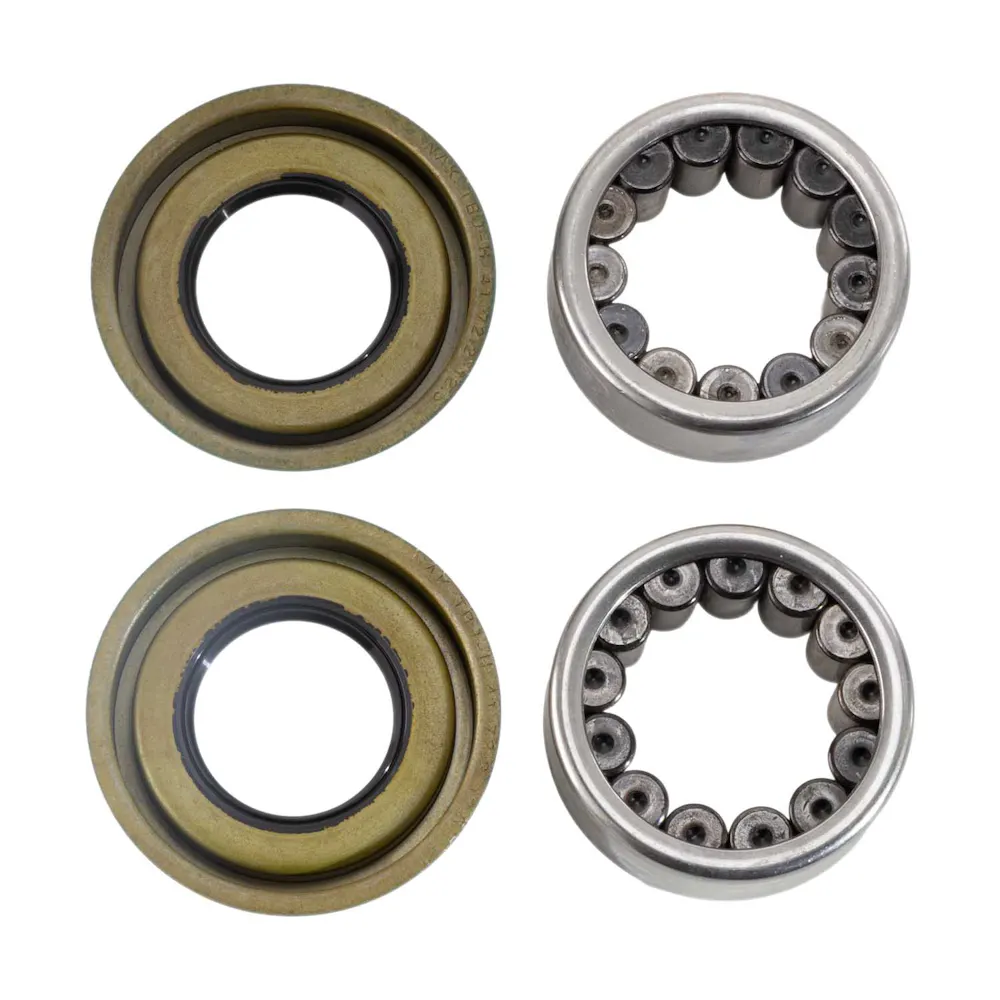

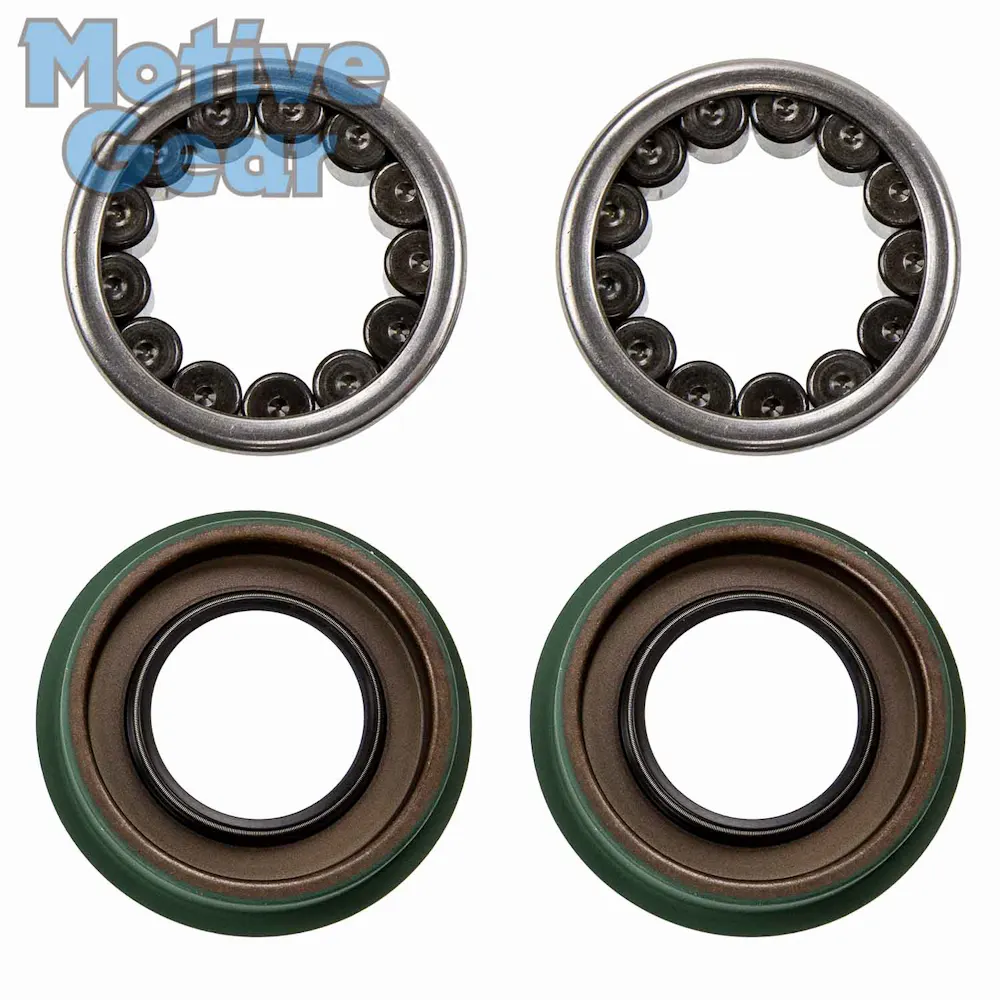

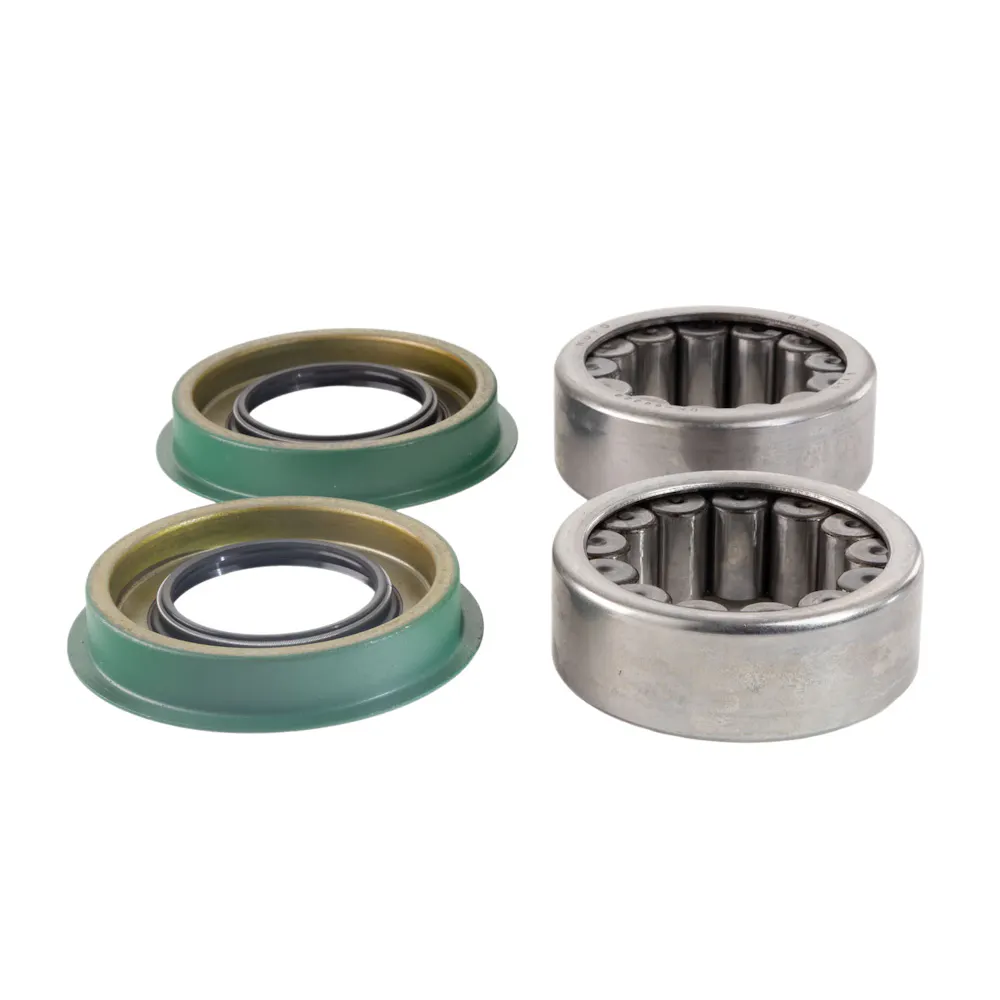

Motive Gear KIT 513067
