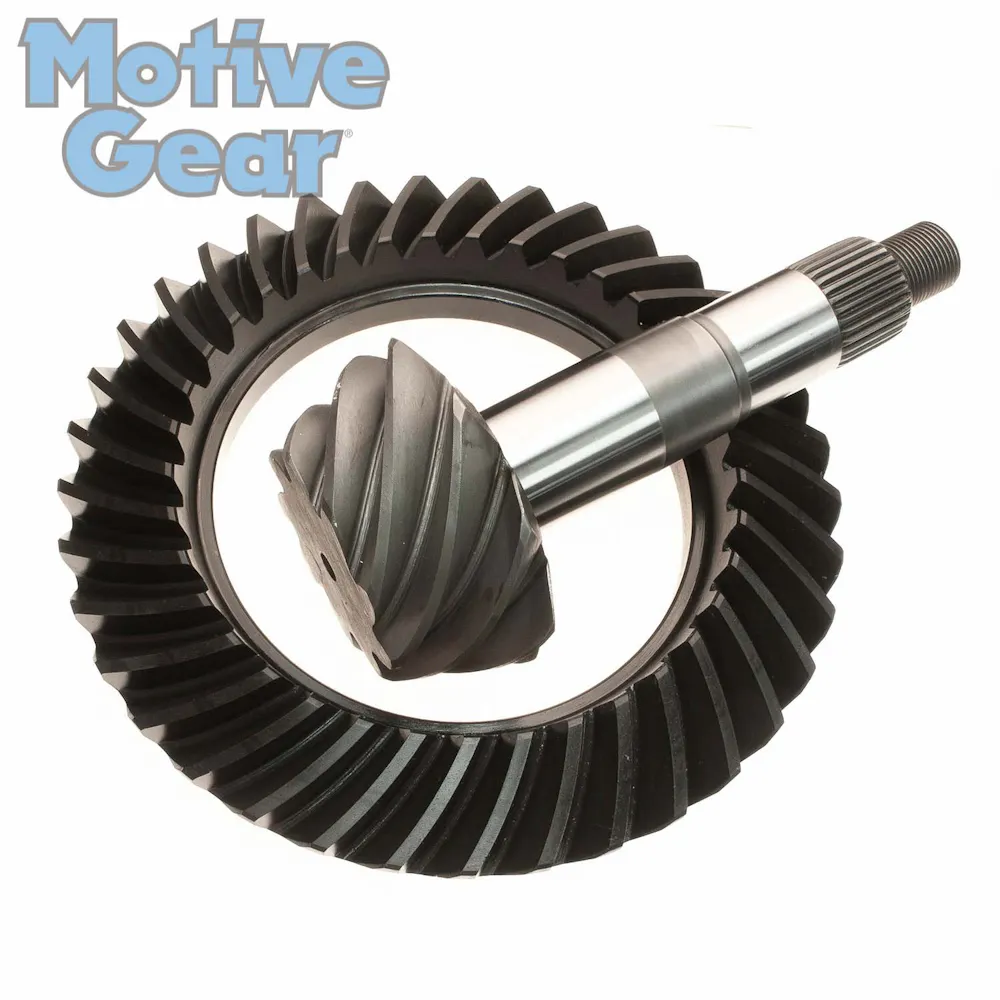

Motive Gear / GM12-308
Part #: GM12-308
UPC: 698231020418
Loading...
Notify me when this item is in stock.
Description: Precision Differential Ring and Pinion maintains correct power distribution to a; This Differential Ring and Pinion is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Description:
Description
Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner's circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.
Features & benefits
- Designed for compatibility with OEM-specified gear oil viscosities, ensuring correct lubrication under all operating conditions.
- Heat-treated alloy steel construction withstands peak torque demands of loaded commercial trucks, preventing gear tooth fatigue and breakage.
- OEM-spec gear ratios preserve intended vehicle speed, performance, and fuel economy characteristics.
- Precision fits to carrier housing bores eliminate shimming uncertainty and simplify installation for experienced drivetrain technicians.
- Precision-machined gears and tight backlash tolerances ensure smooth power transfer and efficient torque distribution between axles.
Information
RP GM 8.875" 3.08 TRUCK MG
Application summary
| Year | Make / model |
|---|---|
| 1964-1970 | Buick Wildcat |
| 1964-1972 | Chevrolet Bel Air |
| 1964-1972 | Chevrolet Biscayne |
| 1969-1974 | Chevrolet Blazer |
| 1975-1986 | Chevrolet C10 |
| 1963-1967 | Chevrolet C10 Panel |
| 1963-1974 | Chevrolet C10 Pickup |
| 1967-1986 | Chevrolet C10 Suburban |
| 1967-1972 | Chevrolet Camaro |
| 1966-1970 | Chevrolet Caprice |
| 1964-1972 | Chevrolet Chevelle |
| 1964-1968 | Chevrolet Chevy II |
| 1965-1972 | Chevrolet El Camino |
| 1975-1987 | Chevrolet G10 |
| 1964-1974 | Chevrolet G10 Van |
| 1975-1981 | Chevrolet G20 |
| 1967-1974 | Chevrolet G20 Van |
| 1964-1972 | Chevrolet Impala |
| 1975-1986 | Chevrolet K10 |
| 1963-1974 | Chevrolet K10 Pickup |
| 1967-1986 | Chevrolet K10 Suburban |
| 1975-1986 | Chevrolet K5 Blazer |
| 1970-1972 | Chevrolet Monte Carlo |
| 1969-1972 | Chevrolet Nova |
| 1987 | Chevrolet R10 Suburban |
| 1963-1966 | Chevrolet Suburban |
| 1987 | Chevrolet V10 Suburban |
| 1975-1978 | GMC C15 |
| 1975-1978 | GMC C15 Suburban |
| 1967-1974 | GMC C15/C1500 Pickup |
| 1968-1974 | GMC C15/C1500 Suburban |
| 1979-1986 | GMC C1500 |
| 1979-1986 | GMC C1500 Suburban |
| 1963-1966 | GMC G1000 Series |
| 1975-1978 | GMC G15 |
| 1967-1974 | GMC G15/G1500 Van |
| 1979-1987 | GMC G1500 |
| 1975-1978 | GMC G25 |
| 1967-1974 | GMC G25/G2500 Van |
| 1979-1981 | GMC G2500 |
| 1966 | GMC K1000 |
| 1966 | GMC K1000 Pickup |
| 1975-1978 | GMC K15 |
| 1975-1978 | GMC K15 Suburban |
| 1966-1974 | GMC K15/K1500 Pickup |
| 1967-1974 | GMC K15/K1500 Suburban |
| 1979-1986 | GMC K1500 |
| 1979-1986 | GMC K1500 Suburban |
| 1987 | GMC R1500 Suburban |
| 1963-1966 | GMC Suburban |
| 1987 | GMC V1500 Suburban |
| 1969-1972 | Pontiac Firebird |
| 1970-1972 | Pontiac GTO |
Specifications
- GTIN
- 00698231020418
- Weight
- 15.35 lb
- Height
- 5.25 in
- Length
- 15 in
- Width
- 11 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MOT
- Warehouse brand code
- MOT
- AAIA brand code
- BHHD
Attributes
- App/Model
- GM 8.875 Truck (12-Bolt Truck)
- Axle Type
- GM 8.875 in.
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Cover Bolt Quantity
- 12
- Differential Carrier Break
- 2.76 to 3.42 Ratio
- Differential Case Design Type
- GM 8.875 Truck
- Gear Ratio
- 3.08
- Mounting Location
- Rear
- Pinion Gear Tooth Quantity
- 13
- Pinion Shaft Diameter
- 1.438
- Pinion Spline Count
- 30
- Position
- Rear
- Ratio
- 3.08
- Ring Gear Bolt Quantity
- 12
- Ring Gear Diameter
- 8.875
- Ring Gear Material
- 8620 Steel
- Ring Gear Outside Diameter
- 8.875
- Ring Gear Rotation
- Standard
- Ring Gear Tooth Quantity
- 40
- Ring and Pinion Gear Ratio
- 3.08
- Taxonomy
- GM 8.875 Truck
- Taxonomy A
- LD Differential
- Taxonomy B
- Ring and Pinions
- Taxonomy C
- Rear
- Taxonomy D
- 3.08
- Title
- Differential Ring and Pinion
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1964-1970 Buick Wildcat; 1964-1972 Chevrolet Bel Air; 1964-1972 Chevrolet Biscayne; 1969-1974 Chevrolet Blazer; 1975-1986 Chevrolet C10; 1963-1967 Chevrolet C10 Panel; 1963-1974 Chevrolet C10 Pickup; 1967-1986 Chevrolet C10 Suburban; 1967-1972 Chevrolet Camaro; 1966-1970 Chevrolet Caprice; 1964-1972 Chevrolet Chevelle; 1964-1968 Chevrolet Chevy II; 1965-1972 Chevrolet El Camino; 1975-1987 Chevrolet G10; 1964-1974 Chevrolet G10 Van; 1975-1981 Chevrolet G20; 1967-1974 Chevrolet G20 Van; 1964-1972 Chevrolet Impala; 1975-1986 Chevrolet K10; 1963-1974 Chevrolet K10 Pickup; 1967-1986 Chevrolet K10 Suburban; 1975-1986 Chevrolet K5 Blazer; 1970-1972 Chevrolet Monte Carlo; 1969-1972 Chevrolet Nova; 1987 Chevrolet R10 Suburban; 1963-1966 Chevrolet Suburban; 1987 Chevrolet V10 Suburban; 1975-1978 GMC C15; 1975-1978 GMC C15 Suburban; 1967-1974 GMC C15/C1500 Pickup; 1968-1974 GMC C15/C1500 Suburban; 1979-1986 GMC C1500; 1979-1986 GMC C1500 Suburban; 1963-1966 GMC G1000 Series; 1975-1978 GMC G15; 1967-1974 GMC G15/G1500 Van; 1979-1987 GMC G1500; 1975-1978 GMC G25; 1967-1974 GMC G25/G2500 Van; 1979-1981 GMC G2500; 1966 GMC K1000; 1966 GMC K1000 Pickup; 1975-1978 GMC K15; 1975-1978 GMC K15 Suburban; 1966-1974 GMC K15/K1500 Pickup; 1967-1974 GMC K15/K1500 Suburban; 1979-1986 GMC K1500; 1979-1986 GMC K1500 Suburban; 1987 GMC R1500 Suburban; 1963-1966 GMC Suburban; 1987 GMC V1500 Suburban; 1969-1972 Pontiac Firebird; 1970-1972 Pontiac GTO
