Motive Gear / BH196677
Part #: BH196677
UPC: 698231164327
Loading...
Notify me when this item is in stock.

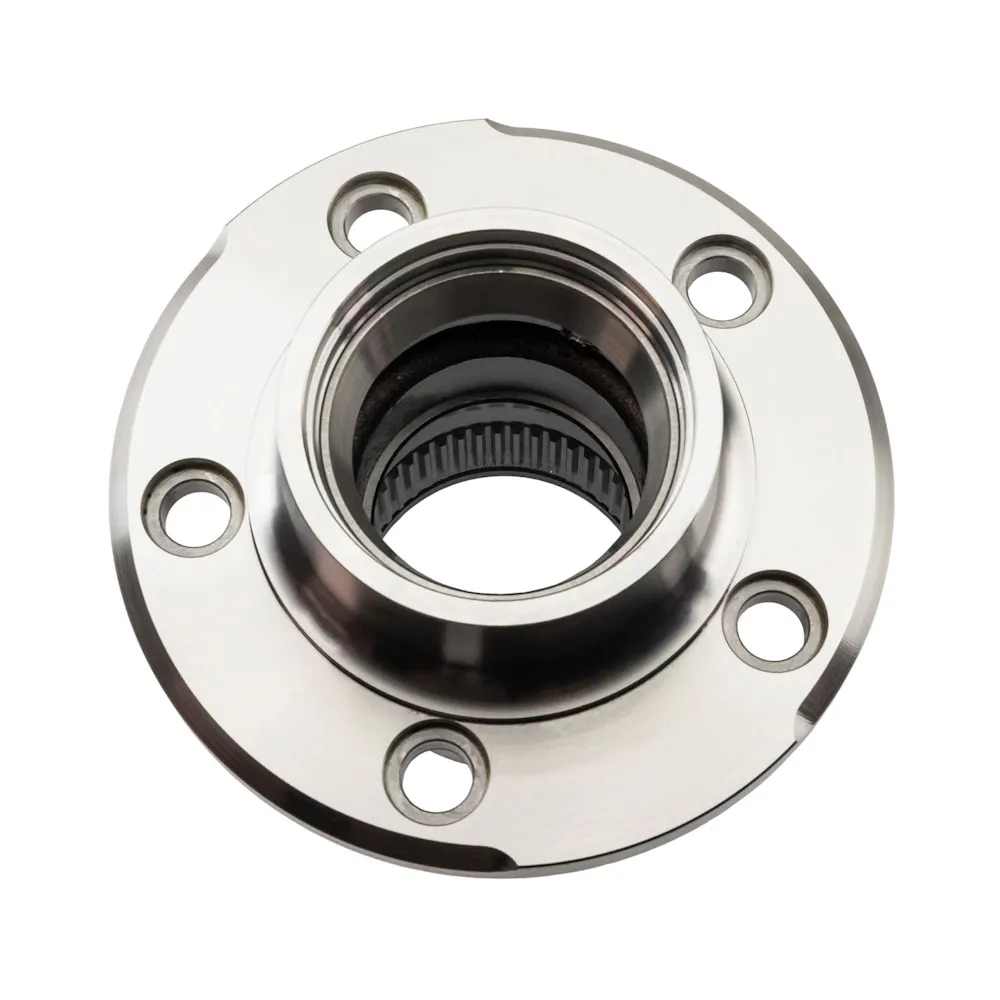

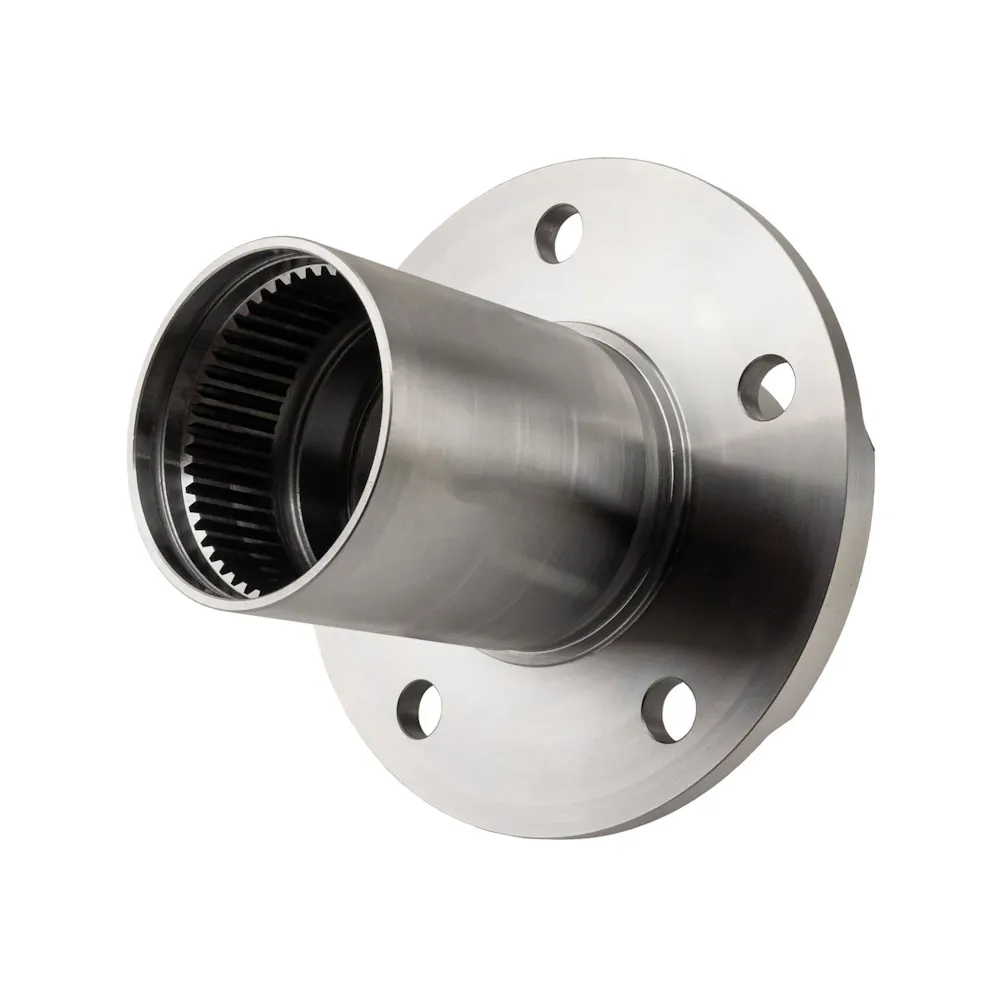

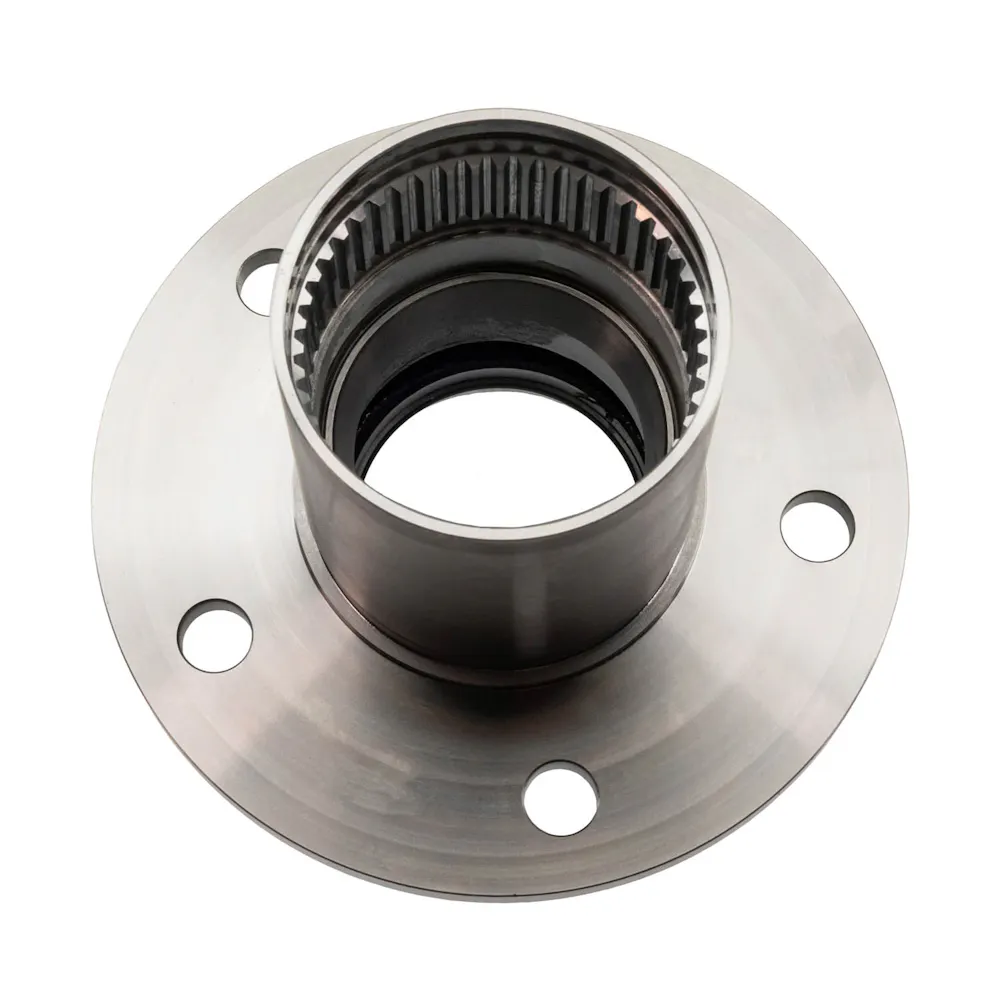

Description: Heavy-duty Wheel Hub supports wheel bearing load in commercial applications.; This heavy-duty Wheel Hub is precision machined to OEM bearing bore and stud pattern specifications. It provides the structural support needed for correct wheel bearing preload and wheel retention in commercial trucks.
Description:
Description
Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner's circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.
Features & benefits
- Full-depth machining of bearing seats, oil seal bores, and ABS tone ring mounts restores all critical hub interfaces.
- High-strength steel or ductile iron construction handles the radial and thrust loads of maximum GVW commercial truck operation.
- OEM-matched wheel stud pattern and flange dimensions maintain correct wheel and brake drum/rotor alignment.
- Precision-machined bearing bore and spindle fit ensure correct wheel bearing preload and running clearance during assembly.
- Restores correct wheel end geometry, ensuring even tire wear and reliable brake performance in commercial truck applications.
Information
WHEEL HUB '66-'75 BRONCO DRUM
Application summary
| Year | Make / model |
|---|---|
| 1966-1975 | Ford Bronco |
| 1966-1975 | Ford F-100 |
Specifications
- GTIN
- 00698231164327
- Weight
- 9.25 lb
- Height
- 8.13 in
- Length
- 7.69 in
- Width
- 7.25 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MOT
- Warehouse brand code
- MOT
- AAIA brand code
- BHHD
Attributes
- App/Model
- Dana 44 Standard"
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Differential Case Design Type
- Dana 44 Standard
- Disc Or Drum Brakes
- Drum
- Material
- Billet Steel
- Taxonomy A
- Wheel Attaching
- Taxonomy B
- Wheel Hubs & Components
- Taxonomy C
- Wheel Hub
- Wheel Bolt Pattern Size
- 5 x 5.5
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1966-1975 Ford Bronco; 1966-1975 Ford F-100
Resources
- Brand logo
- Motive Gear Rear Ring & Pinion Install - Jeep TJ Sahara
- Motive Gear Front Ring & Pinion Install - Jeep JT Gladiator
- Motive Gear Rear Ring & Pinion Install - Jeep JT Gladiator
- Logo Image
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Primary
- Regulatory Content Label
- Differential Components #jeeps #offroad #offroading
- S and S Truck Parts Introduction Video

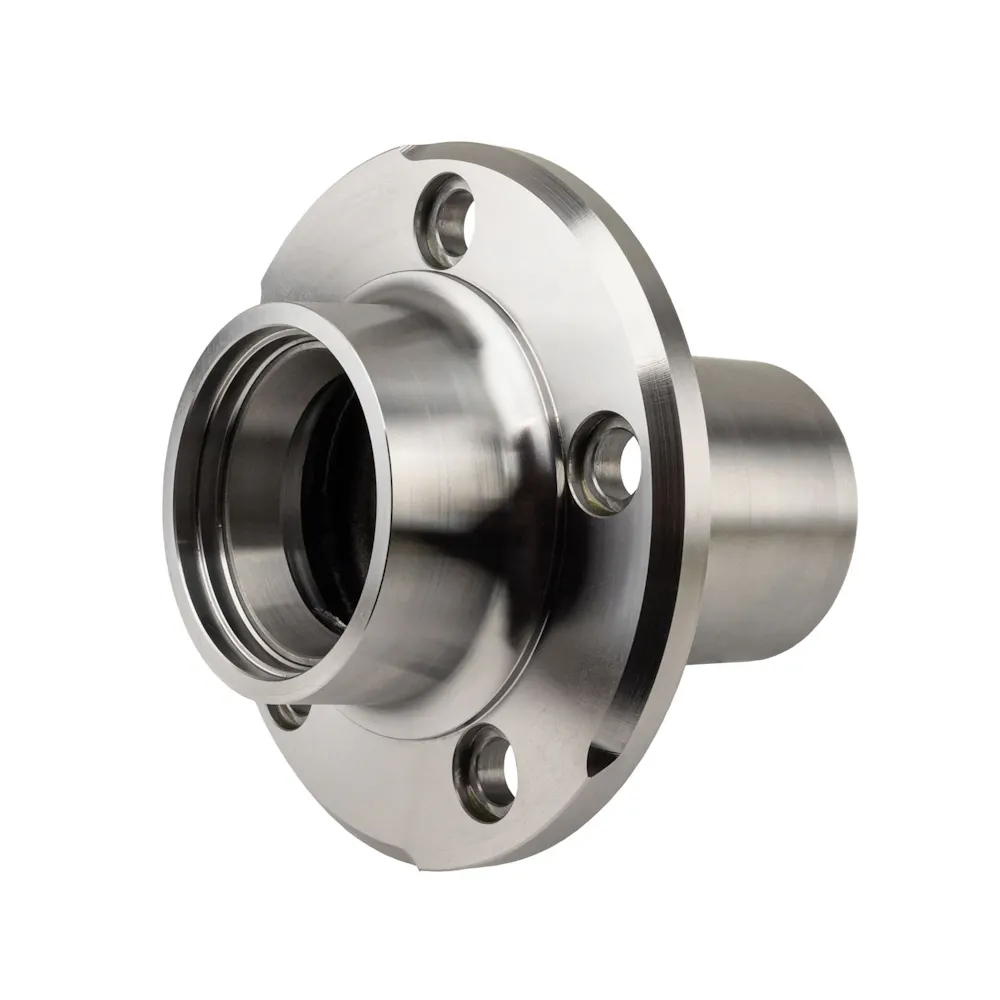

Motive Gear BH196677
