Motive Gear / 4813V
Part #: 4813V
UPC: 698231337752
Loading...
Notify me when this item is in stock.
Description: OEM-spec Transfer Case Output Shaft Seal prevents leaks and maintains system int; This Transfer Case Output Shaft Seal is manufactured using high-grade materials to deliver a reliable, leak-free seal. Engineered to OEM specifications, it ensures a precise fit and restores original system integrity.
Description:
Description
Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner's circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.
Features & benefits
- Compatible with a wide range of commercial truck platforms, making it a versatile stocking solution for fleets and independent repair shops.
- Designed to OEM fit specifications, eliminating the need for trimming or modification and reducing installation time for professional technicians.
- Maintains correct torque retention over time, preventing bolt relaxation and gasket blowout in high-temperature commercial engine and drivetrain applications.
- Manufactured from high-grade materials that resist heat, pressure, and chemical exposure, ensuring a durable, leak-free seal throughout the service interval.
- Meets or exceeds original equipment standards for sealing performance, restoring factory-level leak protection and extending the life of surrounding components.
Information

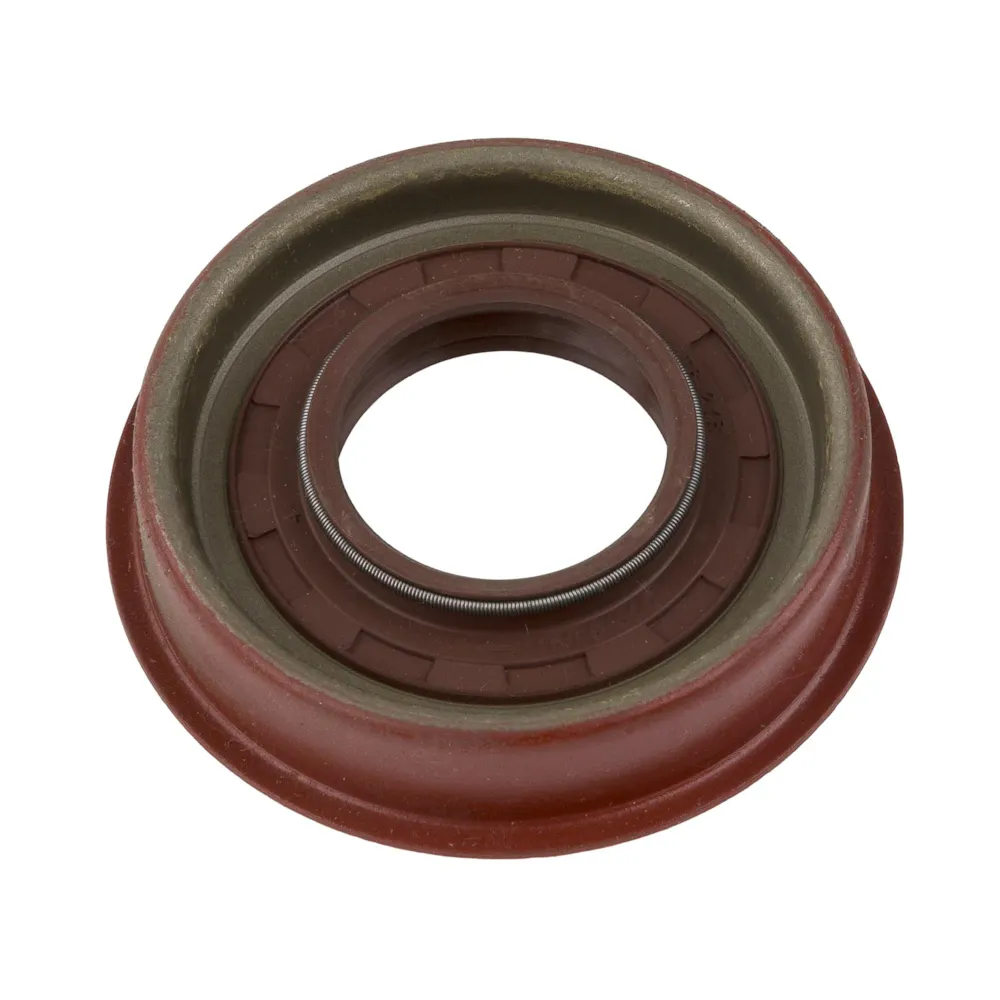

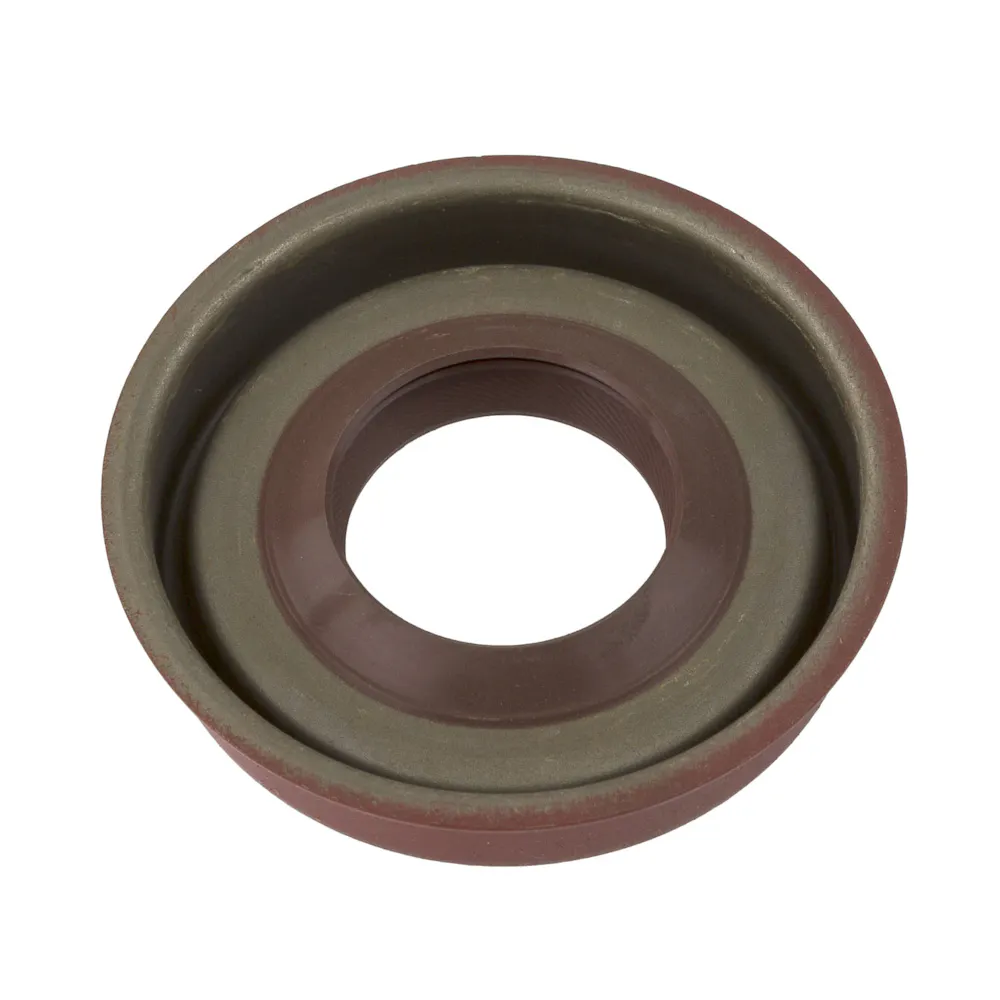

NP233 FRONT OUTPUT SHAFT SEAL
Specifications
- GTIN
- 00698231337752
- Weight
- 0.1 lb
- Height
- 2.5 in
- Length
- 3.25 in
- Width
- 3.75 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MOT
- Warehouse brand code
- MOT
- AAIA brand code
- BHHD
Attributes
- App/Model
- NP233"
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Housing Bore
- 2.447
- Inside Diameter
- 1.178
- Material
- Fluoroelastomer
- Outside Diameter
- 2.452
- Taxonomy A
- LD Transfer Case
- Taxonomy B
- Seals
- Width
- 0.5
Fitment status
This product is universal and will fit your application.
