Motive Gear / 26064029
Part #: 26064029
UPC: 698231420287
Loading...
Notify me when this item is in stock.
Description: OEM-spec Differential Pinion Seal prevents leaks and maintains system integrity.; This Differential Pinion Seal is manufactured using high-grade materials to deliver a reliable, leak-free seal. Engineered to OEM specifications, it ensures a precise fit and restores original system integrity.
Description:
Description
Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner's circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.
Features & benefits
- Compatible with a wide range of commercial truck platforms, making it a versatile stocking solution for fleets and independent repair shops.
- Designed to OEM fit specifications, eliminating the need for trimming or modification and reducing installation time for professional technicians.
- Maintains correct torque retention over time, preventing bolt relaxation and gasket blowout in high-temperature commercial engine and drivetrain applications.
- Manufactured from high-grade materials that resist heat, pressure, and chemical exposure, ensuring a durable, leak-free seal throughout the service interval.
- Meets or exceeds original equipment standards for sealing performance, restoring factory-level leak protection and extending the life of surrounding components.
Information
DIFFERENTIAL PINION SEAL 9.25 IN. RING GEAR 9.5 IN. RING GEAR
9.5 IN. RING GEAR 9.5" RING GEAR 9.5" RING GEAR; 2ND DESIGN 9.50" RING GEAR 9.75 IN. RING GEAR DRIVE RATIO 3.42 EXC. RING GEAR 10.5" NON 10.5 IN. RING GEAR NON RING GEAR 10.50"
Application summary
| Year | Make / model |
|---|---|
| 2000 | Cadillac Escalade |
| 2002-2014 | Cadillac Escalade |
| 2008-2014 | Cadillac Escalade ESV |
| 2010-2013 | Cadillac Escalade EXT |
| 2007-2013 | Chevrolet Avalanche |
| 2002-2004 | Chevrolet Avalanche 1500 |
| 2002-2004 | Chevrolet Avalanche 2500 |
| 1993-1994 | Chevrolet Blazer |
| 1993-1997 | Chevrolet C1500 |
| 1993-1997 | Chevrolet C1500 Suburban |
| 2000 | Chevrolet C2500 |
| 1998-2000 | Chevrolet C3500 |
| 2009-2012 | Chevrolet Colorado |
| 1998-2008 | Chevrolet Express 1500 |
| 1998-2006 | Chevrolet Express 2500 |
| 2010-2017 | Chevrolet Express 2500 |
| 2010-2017 | Chevrolet Express 3500 |
| 2010-2012 | Chevrolet Express 4500 |
| 2016 | Chevrolet Express 4500 |
| 1993-1997 | Chevrolet K1500 |
| 1993-1997 | Chevrolet K1500 Suburban |
| 2000 | Chevrolet K2500 |
| 1998-2000 | Chevrolet K3500 |
| 2001 | Chevrolet Silverado 1500 |
| 2004-2013 | Chevrolet Silverado 1500 |
| 2015-2018 | Chevrolet Silverado 1500 |
| 2007 | Chevrolet Silverado 1500 Classic |
| 2002-2003 | Chevrolet Silverado 1500 HD |
| 2005-2006 | Chevrolet Silverado 1500 HD |
| 2007 | Chevrolet Silverado 1500 HD Classic |
| 2000-2004 | Chevrolet Silverado 2500 |
| 2001-2005 | Chevrolet Silverado 2500 HD |
| 2001 | Chevrolet Silverado 3500 |
| 2005-2006 | Chevrolet SSR |
| 2001-2004 | Chevrolet Suburban 1500 |
| 2007-2014 | Chevrolet Suburban 1500 |
| 2000-2009 | Chevrolet Suburban 2500 |
| 1995-1997 | Chevrolet Tahoe |
| 2000-2004 | Chevrolet Tahoe |
| 2007-2014 | Chevrolet Tahoe |
| 2006-2009 | Chevrolet Trailblazer |
| 1988-1997 | GMC C1500 |
| 1992-1997 | GMC C1500 Suburban |
| 1998-2000 | GMC C3500 |
| 2009-2012 | GMC Canyon |
| 1988-1991 | GMC Jimmy |
| 1988-1997 | GMC K1500 |
| 1992-1997 | GMC K1500 Suburban |
| 1998-2000 | GMC K3500 |
| 1988-1991 | GMC R1500 Suburban |
| 1998-2005 | GMC Savana 1500 |
| 1998-2006 | GMC Savana 2500 |
| 2010-2017 | GMC Savana 2500 |
| 2010-2017 | GMC Savana 3500 |
| 2010-2012 | GMC Savana 4500 |
| 2001 | GMC Sierra 1500 |
| 2004-2013 | GMC Sierra 1500 |
| 2015-2018 | GMC Sierra 1500 |
| 2007 | GMC Sierra 1500 Classic |
| 2002-2003 | GMC Sierra 1500 HD |
| 2005-2006 | GMC Sierra 1500 HD |
| 2007 | GMC Sierra 1500 HD Classic |
| 2000-2004 | GMC Sierra 2500 |
| 2001-2005 | GMC Sierra 2500 HD |
| 2001 | GMC Sierra 3500 |
| 1988-1991 | GMC V1500 Suburban |
| 1992-1997 | GMC Yukon |
Specifications
- GTIN
- 00698231420287
- Weight
- 0.1 lb
- Height
- 2 in
- Length
- 3 in
- Width
- 3 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MOT
- Warehouse brand code
- MOT
- AAIA brand code
- BHHD
Attributes
- App/Model
- GM 9.5"
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Differential Case Design Type
- Chrysler 9.25 Front
- Housing Bore
- 2.911
- Inside Diameter
- 2.088
- Material
- Nitrile
- Outside Diameter
- 2.915
- Position
- Front
- Taxonomy
- Chrysler 9.25 Front/GM 9.5/GM 8.6
- Taxonomy A
- LD Differential
- Taxonomy B
- Seals
- Taxonomy C
- Pinion Seals
- Title
- Differential Pinion Seal
- Width
- 0.5
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2000 Cadillac Escalade; 2002-2014 Cadillac Escalade; 2008-2014 Cadillac Escalade ESV; 2010-2013 Cadillac Escalade EXT; 2007-2013 Chevrolet Avalanche; 2002-2004 Chevrolet Avalanche 1500; 2002-2004 Chevrolet Avalanche 2500; 1993-1994 Chevrolet Blazer; 1993-1997 Chevrolet C1500; 1993-1997 Chevrolet C1500 Suburban; 2000 Chevrolet C2500; 1998-2000 Chevrolet C3500; 2009-2012 Chevrolet Colorado; 1998-2008 Chevrolet Express 1500; 1998-2006 Chevrolet Express 2500; 2010-2017 Chevrolet Express 2500; 2010-2017 Chevrolet Express 3500; 2010-2012 Chevrolet Express 4500; 2016 Chevrolet Express 4500; 1993-1997 Chevrolet K1500; 1993-1997 Chevrolet K1500 Suburban; 2000 Chevrolet K2500; 1998-2000 Chevrolet K3500; 2001 Chevrolet Silverado 1500; 2004-2013 Chevrolet Silverado 1500; 2015-2018 Chevrolet Silverado 1500; 2007 Chevrolet Silverado 1500 Classic; 2002-2003 Chevrolet Silverado 1500 HD; 2005-2006 Chevrolet Silverado 1500 HD; 2007 Chevrolet Silverado 1500 HD Classic; 2000-2004 Chevrolet Silverado 2500; 2001-2005 Chevrolet Silverado 2500 HD; 2001 Chevrolet Silverado 3500; 2005-2006 Chevrolet SSR; 2001-2004 Chevrolet Suburban 1500; 2007-2014 Chevrolet Suburban 1500; 2000-2009 Chevrolet Suburban 2500; 1995-1997 Chevrolet Tahoe; 2000-2004 Chevrolet Tahoe; 2007-2014 Chevrolet Tahoe; 2006-2009 Chevrolet Trailblazer; 1988-1997 GMC C1500; 1992-1997 GMC C1500 Suburban; 1998-2000 GMC C3500; 2009-2012 GMC Canyon; 1988-1991 GMC Jimmy; 1988-1997 GMC K1500; 1992-1997 GMC K1500 Suburban; 1998-2000 GMC K3500; 1988-1991 GMC R1500 Suburban; 1998-2005 GMC Savana 1500; 1998-2006 GMC Savana 2500; 2010-2017 GMC Savana 2500; 2010-2017 GMC Savana 3500; 2010-2012 GMC Savana 4500; 2001 GMC Sierra 1500; 2004-2013 GMC Sierra 1500; 2015-2018 GMC Sierra 1500; 2007 GMC Sierra 1500 Classic; 2002-2003 GMC Sierra 1500 HD; 2005-2006 GMC Sierra 1500 HD; 2007 GMC Sierra 1500 HD Classic; 2000-2004 GMC Sierra 2500; 2001-2005 GMC Sierra 2500 HD; 2001 GMC Sierra 3500; 1988-1991 GMC V1500 Suburban; 1992-1997 GMC Yukon; ...
Resources
- Brand logo
- Hazardous Materials Info Sheet
- Motive Gear Rear Ring & Pinion Install - Jeep TJ Sahara
- Motive Gear Front Ring & Pinion Install - Jeep JT Gladiator
- Motive Gear Rear Ring & Pinion Install - Jeep JT Gladiator
- Logo Image
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Primary
- Regulatory Content Label
- Differential Components #jeeps #offroad #offroading
- S and S Truck Parts Introduction Video

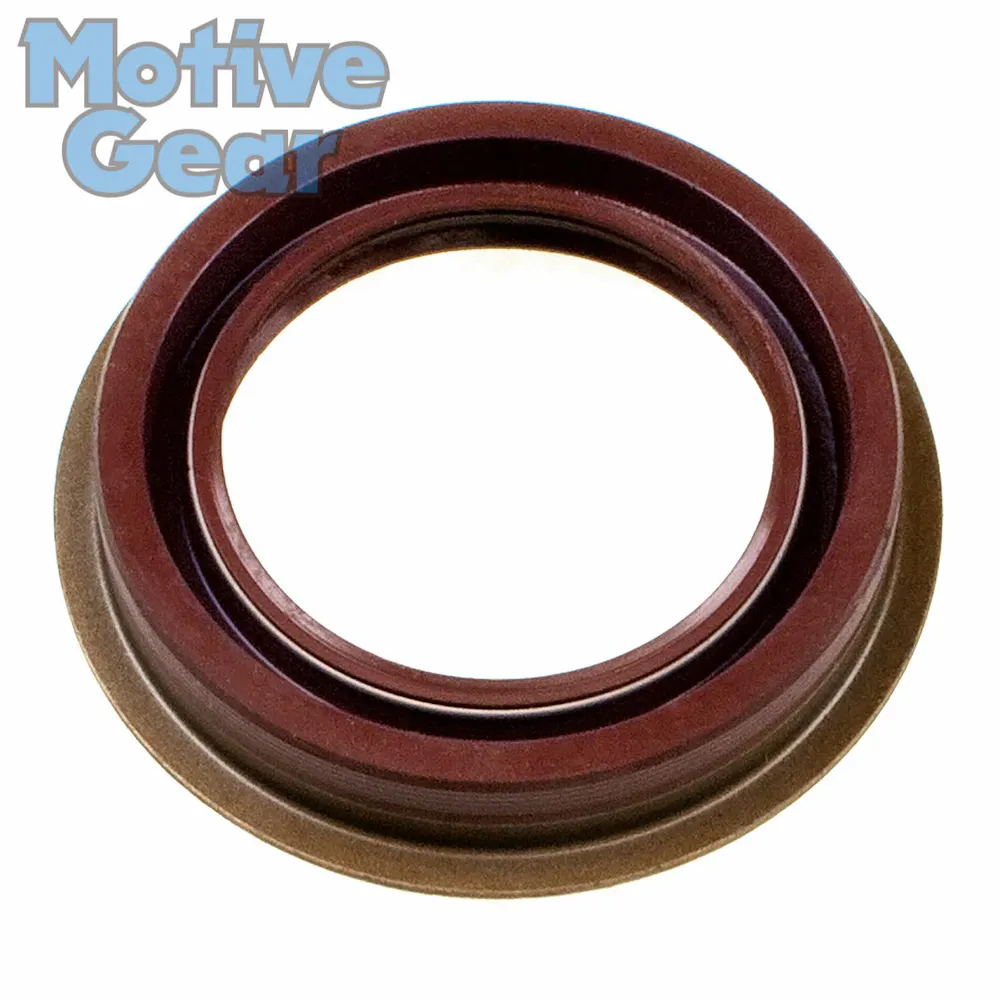

Motive Gear 26064029
