Motive Gear / 26064028
Part #: 26064028
UPC: 698231416853
Loading...
Notify me when this item is in stock.
Description: OEM-spec Differential Pinion Seal prevents leaks and maintains system integrity.; This Differential Pinion Seal is manufactured using high-grade materials to deliver a reliable, leak-free seal. Engineered to OEM specifications, it ensures a precise fit and restores original system integrity.
Description:
Description
Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner's circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.
Features & benefits
- Compatible with a wide range of commercial truck platforms, making it a versatile stocking solution for fleets and independent repair shops.
- Designed to OEM fit specifications, eliminating the need for trimming or modification and reducing installation time for professional technicians.
- Maintains correct torque retention over time, preventing bolt relaxation and gasket blowout in high-temperature commercial engine and drivetrain applications.
- Manufactured from high-grade materials that resist heat, pressure, and chemical exposure, ensuring a durable, leak-free seal throughout the service interval.
- Meets or exceeds original equipment standards for sealing performance, restoring factory-level leak protection and extending the life of surrounding components.
Information
DIFFERENTIAL PINION SEAL (7.25" R.G.) 18 IN. WHEELS 8.5 IN. RING GEAR 8.5 IN. RING GEAR - 2ND DESIGN 8.5", 8.6" RING GEAR 8.5", 8.625" RING GEAR 8.5", 8.625" RING GEAR; 2ND DESIGN 8.50" & 8.625" RING GEAR 8.50", 8.625" RING GEAR 8.50", 8.625",
Application summary
| Year | Make / model |
|---|---|
| 2004-2007 | Buick Rainier |
| 1999-2000 | Cadillac Escalade |
| 2002-2008 | Cadillac Escalade |
| 2003-2008 | Cadillac Escalade ESV |
| 2002-2010 | Cadillac Escalade EXT |
| 1997-1999 | Chevrolet Astro |
| 2007-2013 | Chevrolet Avalanche |
| 2002-2006 | Chevrolet Avalanche 1500 |
| 1997 | Chevrolet Blazer |
| 2000-2005 | Chevrolet Blazer |
| 1998-1999 | Chevrolet C1500 |
| 1998-1999 | Chevrolet C1500 Suburban |
| 1997-2000 | Chevrolet C2500 |
| 1997-1999 | Chevrolet C2500 Suburban |
| 1997-2007 | Chevrolet Express 1500 |
| 2009-2014 | Chevrolet Express 1500 |
| 1997-2002 | Chevrolet Express 2500 |
| 1998-1999 | Chevrolet K1500 |
| 1998-1999 | Chevrolet K1500 Suburban |
| 1997-2000 | Chevrolet K2500 |
| 1997-1999 | Chevrolet K2500 Suburban |
| 1997-2004 | Chevrolet S10 |
| 2000-2009 | Chevrolet Silverado 1500 |
| 2007 | Chevrolet Silverado 1500 Classic |
| 1999-2002 | Chevrolet Silverado 2500 |
| 2001-2002 | Chevrolet Silverado 2500 HD |
| 2003-2006 | Chevrolet SSR |
| 2000-2008 | Chevrolet Suburban 1500 |
| 2000-2002 | Chevrolet Suburban 2500 |
| 1997-2008 | Chevrolet Tahoe |
| 2006-2009 | Chevrolet Trailblazer |
| 2002-2006 | Chevrolet Trailblazer EXT |
| 1998-1999 | GMC C1500 |
| 1998-1999 | GMC C1500 Suburban |
| 2005-2009 | GMC Envoy |
| 2002-2006 | GMC Envoy XL |
| 2004-2005 | GMC Envoy XUV |
| 1997-2001 | GMC Jimmy |
| 2003 | GMC Jimmy |
| 1997-1999 | GMC K1500 |
| 1997-1999 | GMC K1500 Suburban |
| 1997-1999 | GMC Safari |
| 1997-2007 | GMC Savana 1500 |
| 2009-2014 | GMC Savana 1500 |
| 1997-2002 | GMC Savana 2500 |
| 1999-2009 | GMC Sierra 1500 |
| 2007 | GMC Sierra 1500 Classic |
| 1997-2004 | GMC Sonoma |
| 1997-2008 | GMC Yukon |
| 2000-2008 | GMC Yukon XL 1500 |
| 2006-2008 | Hummer H3 |
| 1998-2000 | Isuzu Amigo |
| 2003-2007 | Isuzu Ascender |
| 2002-2004 | Isuzu Axiom |
| 1998-2004 | Isuzu Rodeo |
| 2001-2003 | Isuzu Rodeo Sport |
| 2000-2001 | Oldsmobile Bravada |
| 2005-2009 | Saab 9-7x |
Specifications
- GTIN
- 00698231416853
- Weight
- 0.1 lb
- Height
- 2 in
- Length
- 3 in
- Width
- 3 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MOT
- Warehouse brand code
- MOT
- AAIA brand code
- BHHD
Attributes
- App/Model
- GM 8.625"
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Differential Case Design Type
- GM 8.5
- Housing Bore
- 2.756
- Inside Diameter
- 2.087
- Material
- Nitrile
- Outside Diameter
- 2.764
- Position
- Front Rearward
- Taxonomy
- GM 8.5/GM 8.625
- Taxonomy A
- LD Differential
- Taxonomy B
- Seals
- Taxonomy C
- Pinion Seals
- Title
- Differential Pinion Seal
- Width
- 0.496
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2004-2007 Buick Rainier; 1999-2000 Cadillac Escalade; 2002-2008 Cadillac Escalade; 2003-2008 Cadillac Escalade ESV; 2002-2010 Cadillac Escalade EXT; 1997-1999 Chevrolet Astro; 2007-2013 Chevrolet Avalanche; 2002-2006 Chevrolet Avalanche 1500; 1997 Chevrolet Blazer; 2000-2005 Chevrolet Blazer; 1998-1999 Chevrolet C1500; 1998-1999 Chevrolet C1500 Suburban; 1997-2000 Chevrolet C2500; 1997-1999 Chevrolet C2500 Suburban; 1997-2007 Chevrolet Express 1500; 2009-2014 Chevrolet Express 1500; 1997-2002 Chevrolet Express 2500; 1998-1999 Chevrolet K1500; 1998-1999 Chevrolet K1500 Suburban; 1997-2000 Chevrolet K2500; 1997-1999 Chevrolet K2500 Suburban; 1997-2004 Chevrolet S10; 2000-2009 Chevrolet Silverado 1500; 2007 Chevrolet Silverado 1500 Classic; 1999-2002 Chevrolet Silverado 2500; 2001-2002 Chevrolet Silverado 2500 HD; 2003-2006 Chevrolet SSR; 2000-2008 Chevrolet Suburban 1500; 2000-2002 Chevrolet Suburban 2500; 1997-2008 Chevrolet Tahoe; 2006-2009 Chevrolet Trailblazer; 2002-2006 Chevrolet Trailblazer EXT; 1998-1999 GMC C1500; 1998-1999 GMC C1500 Suburban; 2005-2009 GMC Envoy; 2002-2006 GMC Envoy XL; 2004-2005 GMC Envoy XUV; 1997-2001 GMC Jimmy; 2003 GMC Jimmy; 1997-1999 GMC K1500; 1997-1999 GMC K1500 Suburban; 1997-1999 GMC Safari; 1997-2007 GMC Savana 1500; 2009-2014 GMC Savana 1500; 1997-2002 GMC Savana 2500; 1999-2009 GMC Sierra 1500; 2007 GMC Sierra 1500 Classic; 1997-2004 GMC Sonoma; 1997-2008 GMC Yukon; 2000-2008 GMC Yukon XL 1500; 2006-2008 Hummer H3; 1998-2000 Isuzu Amigo; 2003-2007 Isuzu Ascender; 2002-2004 Isuzu Axiom; 1998-2004 Isuzu Rodeo; 2001-2003 Isuzu Rodeo Sport; 2000-2001 Oldsmobile Bravada; 2005-2009 Saab 9-7x
Resources
- Brand logo
- Hazardous Materials Info Sheet
- Motive Gear Front Ring & Pinion Install - Jeep JT Gladiator
- Motive Gear Rear Ring & Pinion Install - Jeep JT Gladiator
- Motive Gear Rear Ring & Pinion Install - Jeep TJ Sahara
- Logo Image
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Primary
- Regulatory Content Label
- Differential Components #jeeps #offroad #offroading
- S and S Truck Parts Introduction Video

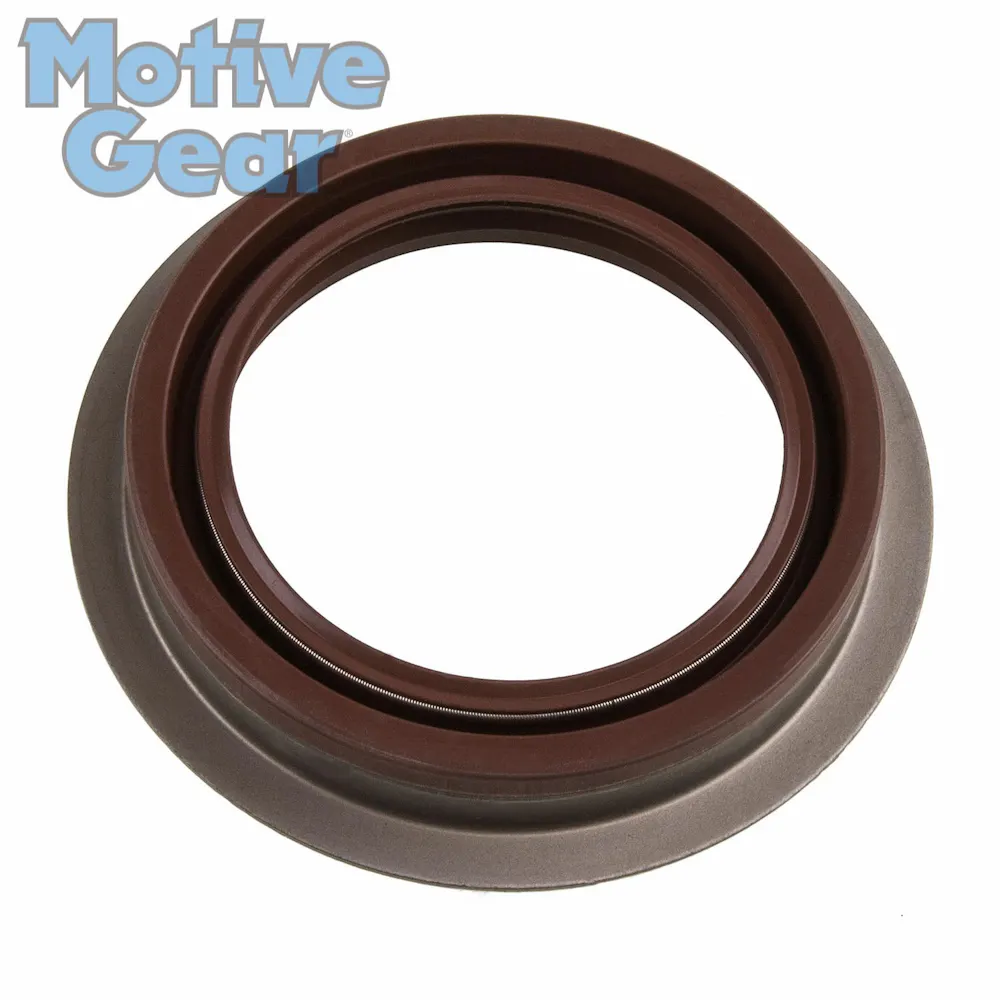

Motive Gear 26064028
