LEED Brakes · 5514 RCDS
Part #: 5514 RCDS
UPC: 887753627124
Loading...
Notify me when this item is in stock.

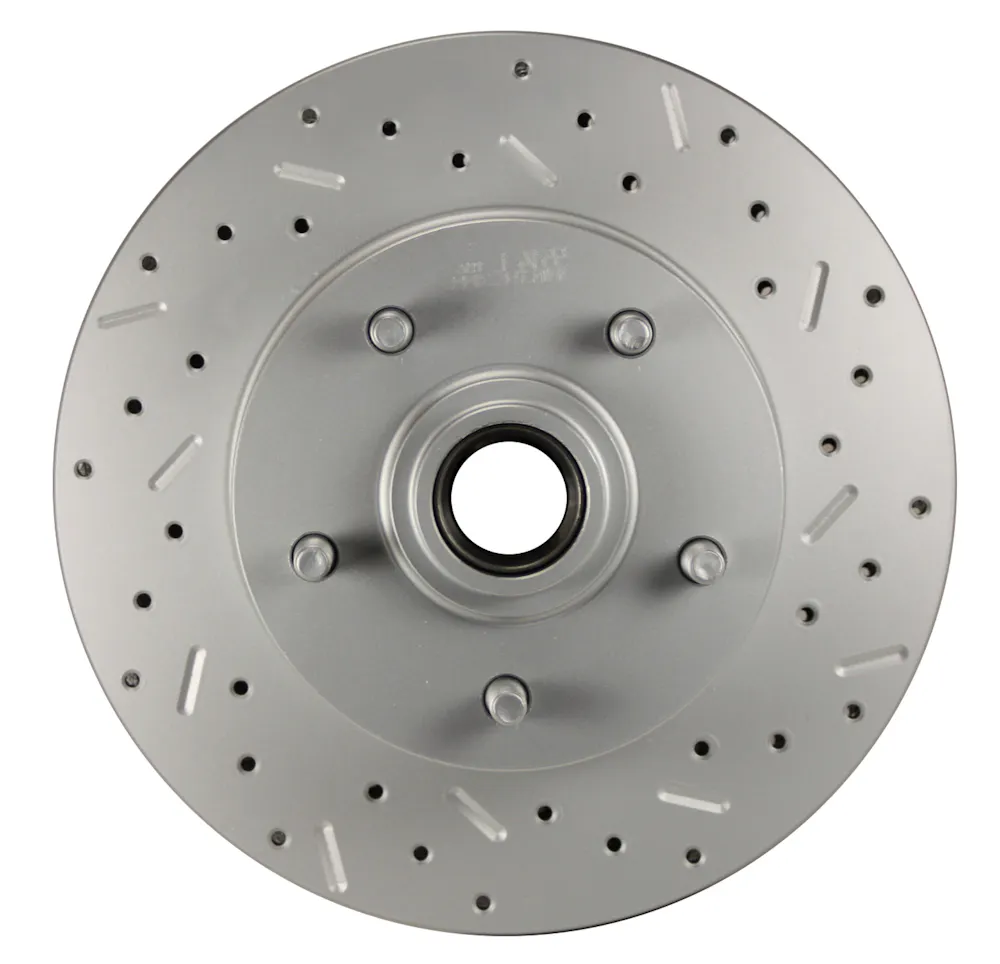

Description: Cross drilled and slotted front rotor for GM single piston cars; Leed Brakes MaxGrip XDS rotors are cross drilled, slotted and zinc platted to provide the ultimate in performance and durability. Available for OE applications as well as upgrades and replacements for our disc brake conversion kits.
Description:
Description
Reduce brake fade and increase your braking performance with our MaxGrip XDS cross drilled, slotted & zinc plated rotor. With cross drilled and slotted rotors, you remove gases that build up between the brake pad and rotor during heavy braking. The removal of this gas will give you better contact between the brake pad and rotor increasing your braking power. Oh yea, they look pretty cool too!
Features & benefits
- Machined to OE specifications for optimal performance
Information
Ships in 1 Box.
Application summary
| Year | Make / model |
|---|---|
| 1973-1974 | Buick Apollo |
| 1970-1972 | Buick GS |
| 1968-1969 | Buick GS 350 |
| 1968-1969 | Buick GS 400 |
| 1970-1972 | Buick GS 455 |
| 1967-1972 | Buick Skylark |
| 1967 | Buick Special |
| 1969 | Buick Special |
| 1969-1972 | Buick Sportwagon |
| 1967-1969 | Chevrolet Camaro |
| 1967-1972 | Chevrolet Chevelle |
| 1967-1968 | Chevrolet Chevy II |
| 1967-1972 | Chevrolet El Camino |
| 1970-1972 | Chevrolet Monte Carlo |
| 1969-1974 | Chevrolet Nova |
| 1971-1972 | GMC Sprint |
| 1967-1971 | Oldsmobile 442 |
| 1971-1972 | Oldsmobile Custom Cruiser |
| 1967-1972 | Oldsmobile Cutlass |
| 1967-1972 | Oldsmobile Cutlass Supreme |
| 1967-1972 | Oldsmobile F85 |
| 1973-1974 | Oldsmobile Omega |
| 1967-1972 | Oldsmobile Vista Cruiser |
| 1967-1969 | Pontiac Firebird |
| 1969-1972 | Pontiac Grand Prix |
| 1967-1972 | Pontiac GTO |
| 1967-1972 | Pontiac LeMans |
| 1967-1970 | Pontiac Tempest |
| 1971-1974 | Pontiac Ventura |
Specifications
- GTIN
- 00887753627124
- Weight
- 22 lb
- Height
- 11 in
- Length
- 12 in
- Width
- 12 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- LEE
- Warehouse brand code
- LEE
- AAIA brand code
- HBCJ
Attributes
- ABS Sensor Ring Included
- No
- Balancing Type
- Yes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Construction
- Full Cast
- Disc Finish
- Coated
- Discard Thickness
- .965
- For Use with Stock Calipers
- Yes
- Grade Type
- Performance
- Hat Finish
- Coated
- Inner Bearing Cup
- 2.328
- Intended Use
- Street
- Material
- Cast Iron
- Nominal Thickness
- 1.035
- Outer Bearing Cup
- 1.781
- Outside Diameter
- 11.00
- Pad Contact Surface Width
- 2.100
- Position
- Front
- Rotor Bolt Pattern
- 5 x 4.75 in
- Rotor Diameter
- 11 in.
- Rotor Finish
- Zinc Coating
- Rotor Material
- Cast Iron
- Rotor Style
- Max Grip XDS - Cross Drilled & Slotted
- Rotor Thickness
- 1 in
- Rust Resistant Coating
- Yes
- Solid Or Vented Type Rotor
- Vented
- Status
- Existing
- Stud Thread Length
- .950
- Surface Type
- Slotted X Drilled
- TLE
- LEED Brakes Cross drilled and slotted front rotor for GM single piston cars
- Title
- LEED Brakes Cross drilled and slotted front rotor for GM single piston cars
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1973-1974 Buick Apollo; 1970-1972 Buick GS; 1968-1969 Buick GS 350; 1968-1969 Buick GS 400; 1970-1972 Buick GS 455; 1967-1972 Buick Skylark; 1967 Buick Special; 1969 Buick Special; 1969-1972 Buick Sportwagon; 1967-1969 Chevrolet Camaro; 1967-1972 Chevrolet Chevelle; 1967-1968 Chevrolet Chevy II; 1967-1972 Chevrolet El Camino; 1970-1972 Chevrolet Monte Carlo; 1969-1974 Chevrolet Nova; 1971-1972 GMC Sprint; 1967-1971 Oldsmobile 442; 1971-1972 Oldsmobile Custom Cruiser; 1967-1972 Oldsmobile Cutlass; 1967-1972 Oldsmobile Cutlass Supreme; 1967-1972 Oldsmobile F85; 1973-1974 Oldsmobile Omega; 1967-1972 Oldsmobile Vista Cruiser; 1967-1969 Pontiac Firebird; 1969-1972 Pontiac Grand Prix; 1967-1972 Pontiac GTO; 1967-1972 Pontiac LeMans; 1967-1970 Pontiac Tempest; 1971-1974 Pontiac Ventura
LEED Brakes 5514 RCDS
