LEED Brakes / 5406001 RCDS
Part #: 5406001 RCDS
UPC: 887753627100
Loading...
Notify me when this item is in stock.

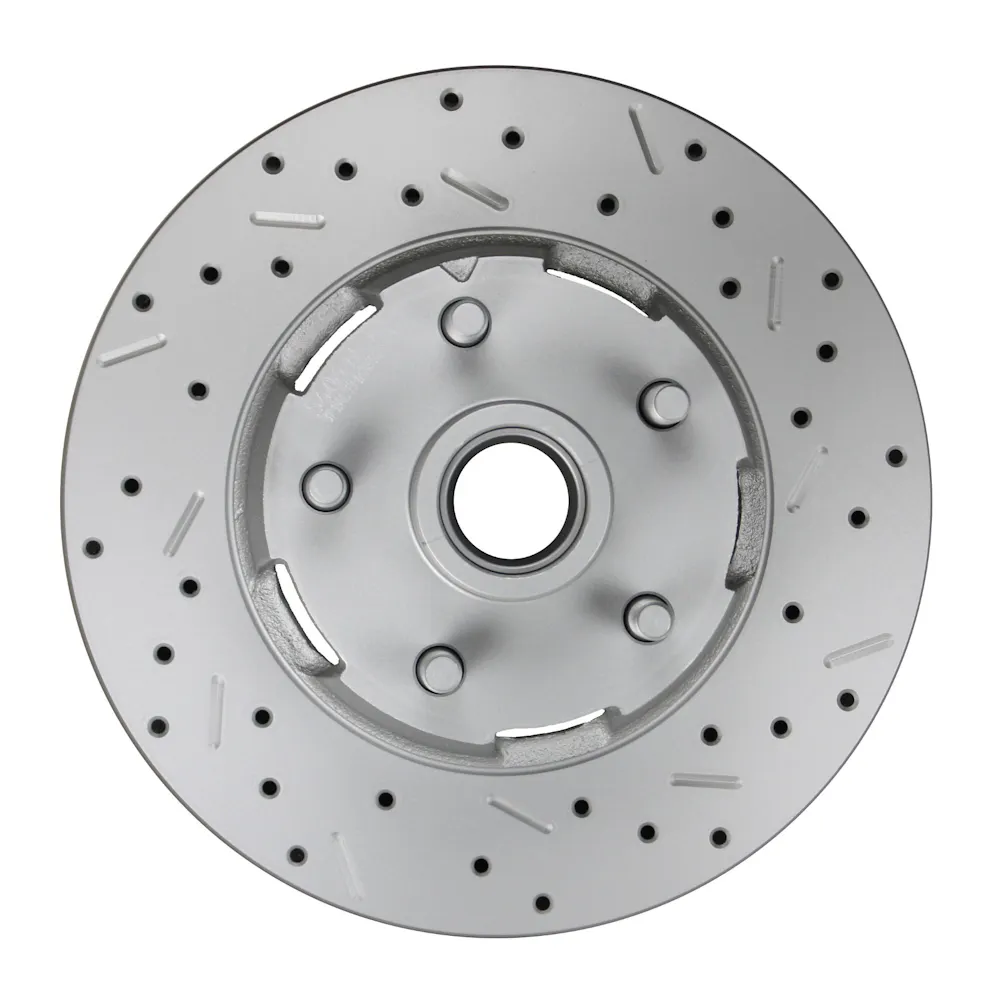

Description: Cross drilled and slotted front rotor for Ford 4 piston cars; Leed Brakes MaxGrip XDS rotors are cross drilled, slotted and zinc platted to provide the ultimate in performance and durability. Available for OE applications as well as upgrades and replacements for our disc brake conversion kits.
Description:
Description
New high quality MaxGrip XDS Cross Drilled & Slotted factory replacement rotor for early Mustang 4 piston cars. Also a replacement for most aftermarket Ford disc brake conversions. Ready to install on your vehicle with bearing races installed from the factory.
Features & benefits
- Machined to OE specifications for optimal performance
Information
Ships in 1 Box.
Application summary
| Year | Make / model |
|---|---|
| 1964-1967 | Ford Mustang |
Specifications
- GTIN
- 00887753627100
- Weight
- 22 lb
- Height
- 11 in
- Length
- 12 in
- Width
- 12 in
- EO
- Offroad
- Life cycle
- Available to Order
- AAM brand code
- LEE
- Warehouse brand code
- LEE
- AAIA brand code
- HBCJ
Attributes
- ABS Sensor Ring Included
- No
- Balancing Type
- Yes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Construction
- Full Cast
- Disc Finish
- Coated
- Discard Thickness
- .780
- For Use with Stock Calipers
- Yes
- Grade Type
- Performance
- Hat Finish
- Coated
- Inner Bearing Cup
- 2.328
- Intended Use
- Street
- Material
- Cast Iron
- Nominal Thickness
- .810
- Outer Bearing Cup
- 1.781
- Outside Diameter
- 11.29
- Pad Contact Surface Width
- 2.100
- Position
- Front
- Rotor Bolt Pattern
- 5 x 4.5 in
- Rotor Diameter
- 11.28 in.
- Rotor Finish
- Zinc Coating
- Rotor Material
- Cast Iron
- Rotor Style
- Max Grip XDS - Cross Drilled & Slotted
- Rotor Thickness
- .810 in
- Rust Resistant Coating
- Yes
- Solid Or Vented Type Rotor
- Vented
- Status
- Existing
- Stud Thread Length
- 1.100
- Surface Type
- Slotted X Drilled
- TLE
- LEED Brakes Cross drilled and slotted front rotor for Ford 4 piston cars
- Title
- LEED Brakes Cross drilled and slotted front rotor for Ford 4 piston cars
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1964-1967 Ford Mustang
