K&N · 63-3069

Part #: 63-3069
UPC: 024844244413

Loading availability... Log in for inventory
Notify me when this item is in stock.

Brand: K&N
This is a message from K&N on the BRAND, not a CAtegory.

Description: Performance Air Intake System; AIRCHARGER; CHEVROLET HHR-SS 2.0L; 2008-2010

Description:

This part number has been superseded by 57-3069.

Description

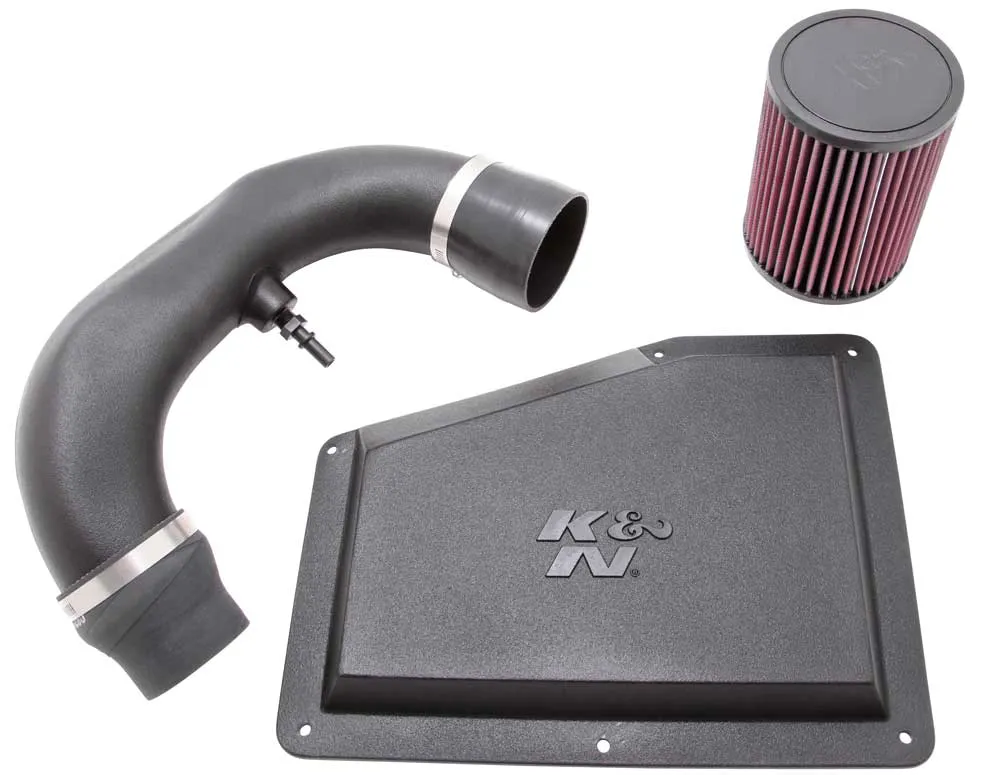

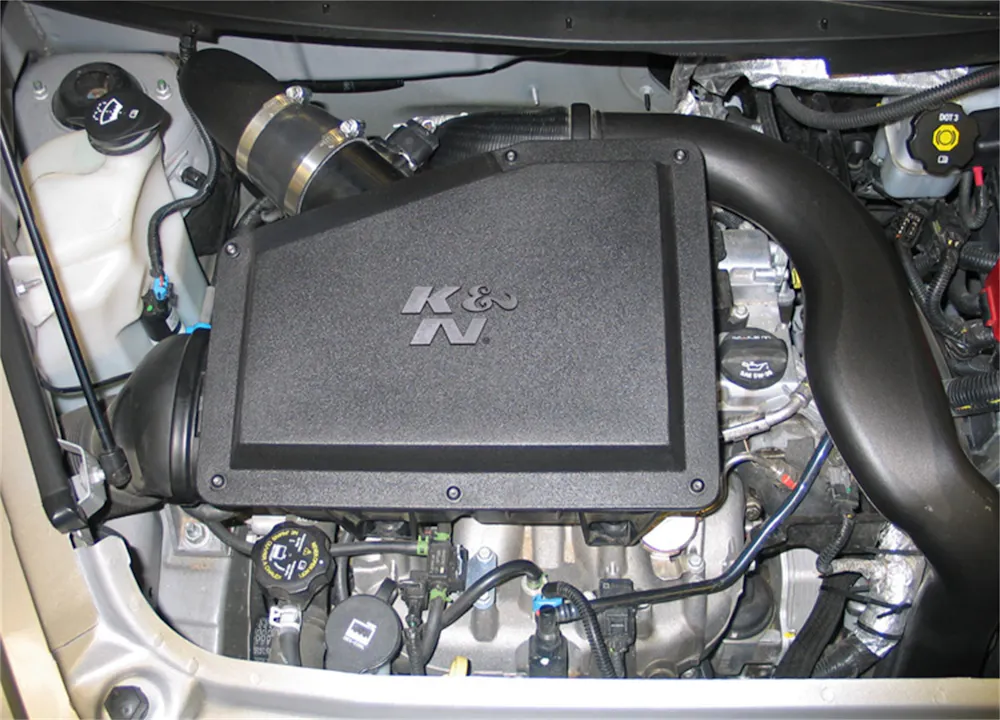

The K&N AirCharger 63-3069 air intake system replaces the restrictive factory air filter and air intake housing in some Chevrolet HHR models. K&N intakes are designed to dramatically reduce intake restriction as they smooth and straighten air flow. This allows your HHR's engine to inhale a larger amount of air than the factory air filter assembly. More air means more usable power and acceleration throughout the engine's RPM range. The 63-3069 air intake comes with a K&N high-flow air filter and a stylish, K&N embossed air box lid that installs onto the previous air box space. The placement allows air to be directed through a custom molded intake tube into the engine's throttle body for a guaranteed power gain. The oversized air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install requiring only a screwdriver, a ratchet set and several wrenches. This air intake cannot be sold in California. It is not legal for use in California or other states adopting California emission standards.

Features & benefits

  • Guaranteed Horsepower Gain
  • Designed To Improve Throttle Response And Engine Sound
  • Easy To Install
  • Replaces Entire Factory Air Intake System
  • Lasts Up To 100 000 Miles Before Service Required

Information

Guaranteed Horsepower Gain; Designed To Improve Throttle Response And Engine Sound; Easy To Install; Replaces Entire Factory Air Intake System; Lasts Up To 100 000 Miles Before Service Required

Application summary

Year Make / model
2008-2010 Chevrolet HHR

Specifications

GTIN
00024844244413
Weight
6.06 lb
Height
12.5 in
Length
20.25 in
Width
12.25 in
EO
Not in CA
Life cycle
Discontinued
AAM brand code
KAN
Warehouse brand code
KAN
AAIA brand code
BBWQ

Attributes

Air Box Included
Yes
Air Filter Color
Red
Air Filter Element Washable
Yes
Air Filter Height
6.125 in. (156mm)
Air Filter Material
Cotton Gauze
Air Filter Oulet Length
2.875 in. (73mm)
Air Filter Oulet Width
2.875 in. (73mm)
Air Filter Outlet Length
2.875 in. (73mm)
Air Filter Outlet Shape
Round
Air Filter Outlet Width
2.875 in. (73mm)
Air Filter Washable
Yes
California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
California Restricted
Not legal for sale or use in California
Clamp Color
Natural
Clamp Color/Finish
Natural
Clamp Material
Stainless Steel
Clamp Quantity
5
Clamp Style
Regular
Clamps Included
5
Coupler Color
Black
Coupler Color/Finish
Black
Couplers Included
2
Estimated Horse Power Gain
9.4 HP @ 5068 RPM
Estimated Horsepower Gain
9.4 HP @ 5068 RPM
Filter Color
Red
Filter Material
Cotton Gauze
Horse Power Increase
9 HP
Intake Pipe Color
Black
Intake Pipe Color / Finish
Black
Intake Pipe Material
High-Density Cross-Linked Polyethylene
Item Weight
6.100 lbs. (2.8 kg)
Mass Air Flow Sensor Adapter Included
Mass Air Flow Sensor Adapter Included When Required
Mass Air Flow Sensor Included
Mass Air Flow Sensor Adapter Included When Required
Oil Included
Filter Is Pre-Oiled
Package Material
Paperboard
Package Type
Box
Product Box Height
12.500 in. (318mm)
Product Box Length
20.250 in. (514mm)
Product Box Width
12.250 in. (311mm)
Product Style
63 Series Aircharger Kits
RPM
5068
Replacement Filter
E-1989
Street Legal
No
Street Legal In All US States
No
TUV Approved (Europe)
No
Title
K&N 63-3069 Performance Air Intake System
Warranty
1,000,000 Miles/10 Year
Weight
6.1 lb (2.8 kg)

Fitment status

It is unknown whether this product will fit your application.

Application summary

2008-2010 Chevrolet HHR
