K&N · 63-3056

Part #: 63-3056
UPC: 024844179876

Loading availability... Log in for inventory
Notify me when this item is in stock.

Brand: K&N
This is a message from K&N on the BRAND, not a CAtegory.

Description: Performance Air Intake System; K/N s easy to install air intake systems replace the restrictive factory air filter and air intake housing allowing for virtually unrestricted air flow. K/N air intakes come with K/N s famous million mile limited warranty.

Description:

This part number has been superseded by 57-3056.

Description

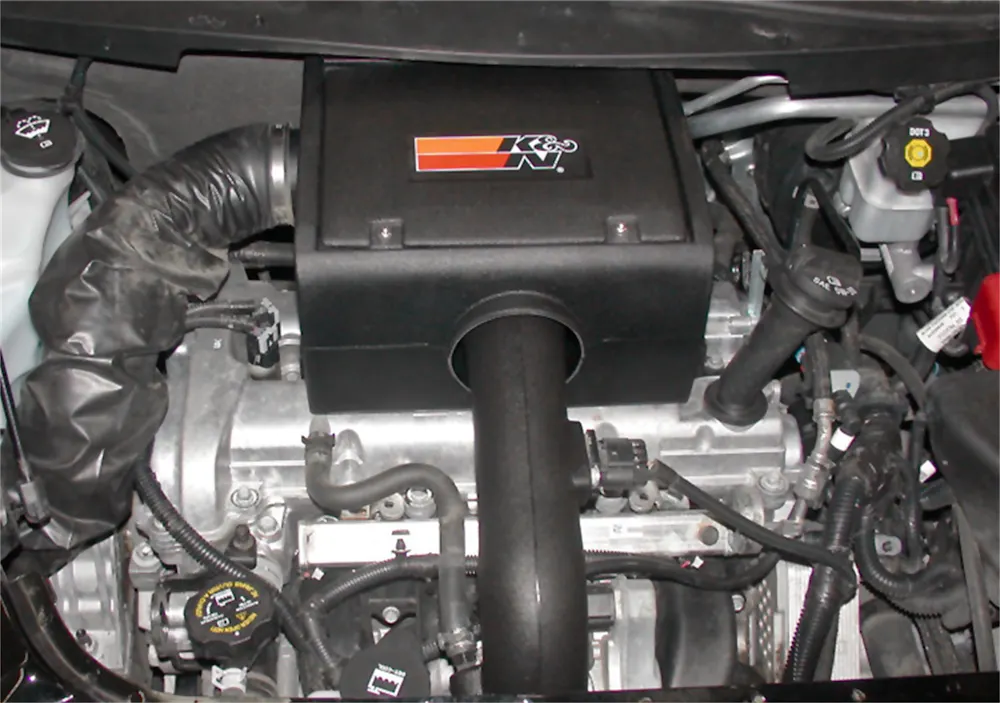

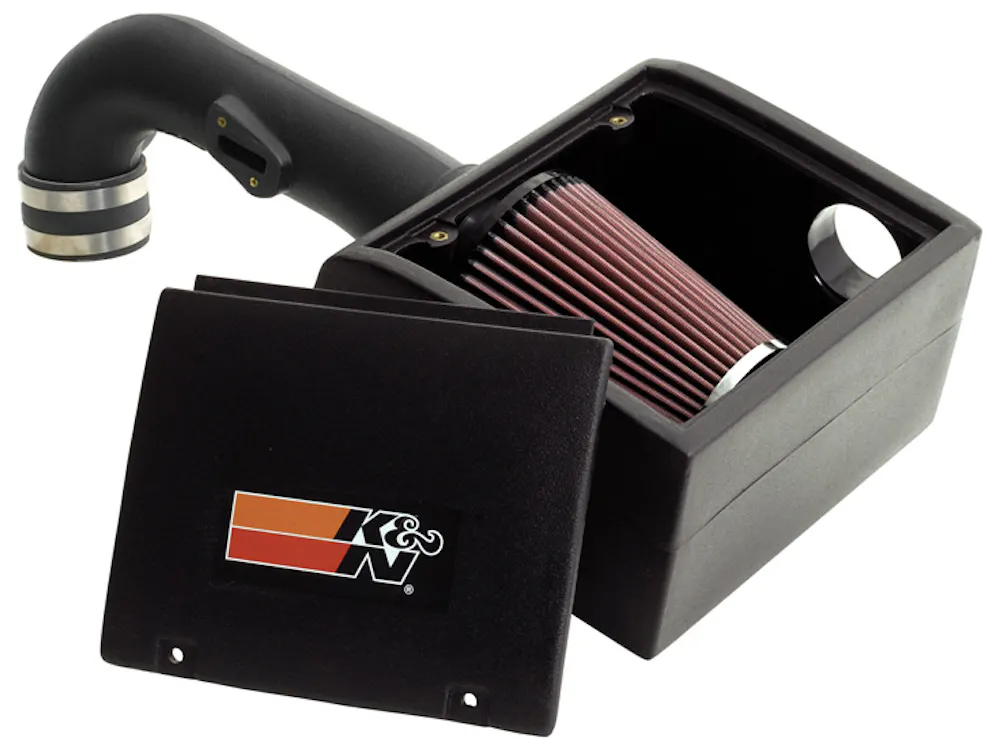

The KN AirCharger 63-3056 air intake system replaces the restrictive factory air filter and air intake housing in some Chevrolet HHR models. KN intakes are designed to dramatically reduce intake restriction as they smooth and straighten air flow. This allows your HHR's engine to inhale a larger amount of air than the factory air filter assembly. More air means more usable power and acceleration throughout the engine's RPM range. The 63-3056 air intake comes with a KN high-flow air filter and a KN logo heat shielded air box that installs into the previous air box space. The factory fresh air hose connects to the heat shield and directs outside, cooler air through a custom molded intake tube into the engine's throttle body for a guaranteed power gain. The oversized air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install requiring only a screwdriver and several wrenches. This air intake cannot be sold in California. It is not legal for use in California or other states adopting California emission standards.

Features & benefits

  • Guaranteed Horsepower Gain
  • Designed To Improve Throttle Response And Engine Sound
  • Easy To Install
  • Replaces Entire Factory Air Intake System
  • Lasts Up To 100 000 Miles Before Service Required

Information

Guaranteed Horsepower Gain; Designed To Improve Throttle Response And Engine Sound; Easy To Install; Replaces Entire Factory Air Intake System; Lasts Up To 100 000 Miles Before Service Required

Application summary

Year Make / model
2008-2010 Chevrolet HHR

Specifications

GTIN
00024844179876
Weight
7.85 lb
Height
12.5 in
Length
22.25 in
Width
14.25 in
EO
Not in CA
Life cycle
Discontinued
AAM brand code
KAN
Warehouse brand code
KAN
AAIA brand code
BBWQ

Attributes

Air Filter Color
Red
Air Filter Height
6.50 in. (165mm)
Air Filter Large End Diameter
5.375 in (137 mm)
Air Filter Material
Cotton Gauze
Air Filter Outlet Shape
Round
California Restricted
Not legal for sale or use in California
Clamp Material
Stainless Steel
Clamp Style
Regular
Clamps Included
3
Couplers Included
1
Estimated Horse Power Gain
9.33 HP @ 5325 RPM
Estimated Horsepower Gain
9.33 HP @ 5325 RPM
Filter Color
Red
Filter Material
Cotton Gauze
Horse Power Increase
9 HP
Intake Pipe Color / Finish
Black
Intake Pipe Material
High-Density Polyethylene
Item Weight
7.8000 lbs.
Product Box Height
12.50 in. (318mm)
Product Box Length
22.25 in. (565mm)
Product Box Width
14.25 in. (362 mm)
Product Style
63 Series Aircharger Kits
RPM
5325
Replacement Filter
RC-5149
Street Legal
No
Street Legal In All US States
No
TUV Approved (Europe)
No
Title
K&N 63-3056 Performance Air Intake System
Weight
7.8 lb (3.6 kg)

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2008-2010 Chevrolet HHR
