K&N · 63-1552

Part #: 63-1552
UPC: 024844186195

Loading availability... Log in for inventory
Notify me when this item is in stock.

Brand: K&N
This is a message from K&N on the BRAND, not a CAtegory.

Description: Performance Air Intake System; K/N s easy to install air intake systems replace the restrictive factory air filter and air intake housing allowing for virtually unrestricted air flow. K/N air intakes come with K/N s famous million mile limited warranty.

Description:

This part number has been superseded by 57-1552.

Description

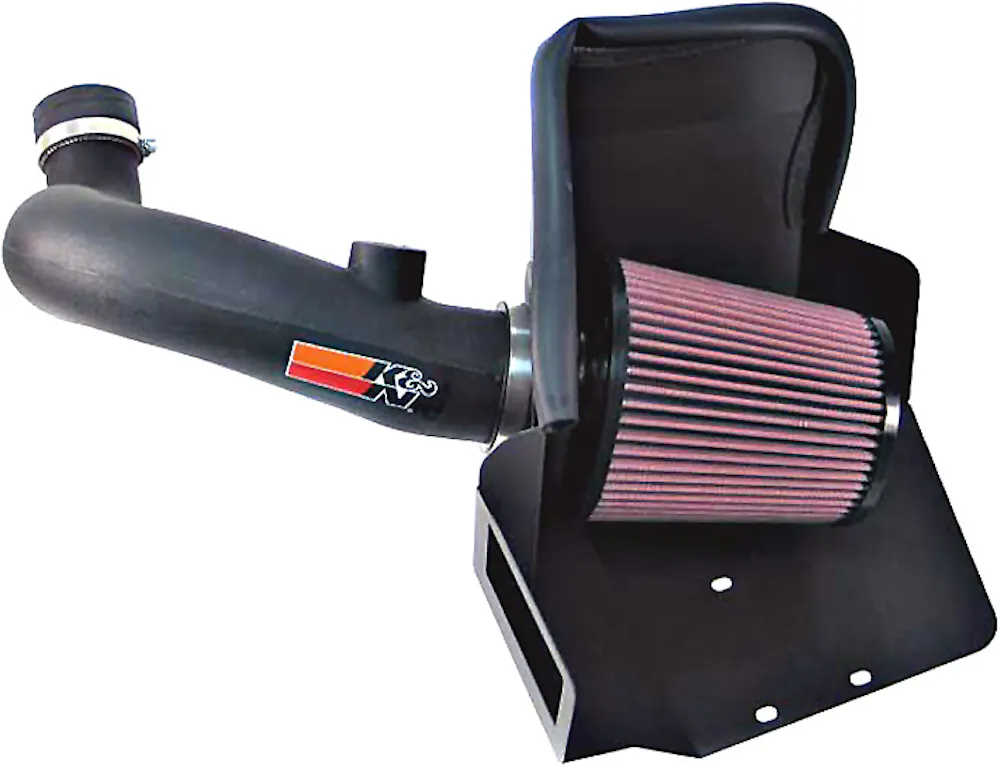

The KN AirCharger 63-1552 air intake system replaces the restrictive factory air filter and air intake housing in some Jeep Compass models. The stock Compass air intake tube is accordion-shaped and long. This restricts the air from freely flowing into the engine. KN's 63-1552 air intake comes with an aerodynamic intake tube and a KN high-flow air filter to significantly lower air restriction. A heat shield is installed into the factory air box space and connects to the fresh air duct. This placement shields the fresh air source from engine heat and allows cooler air to be directed through the custom molded intake tube for a guaranteed power gain. The Compass engine can inhale a larger amount of air than with the factory air filter assembly. More air means more usable power and acceleration throughout the engine's RPM range. The oversized KN air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install requiring only pliers, a screwdriver, socket set and several wrenches. This air intake cannot be sold in California. It is not legal for use in California or other states adopting California emission standards.

Features & benefits

  • Guaranteed Horsepower Gain
  • Designed To Improve Throttle Response And Engine Sound
  • Easy To Install
  • Replaces Entire Factory Air Intake System
  • Lasts Up To 100 000 Miles Before Service Required

Information

Guaranteed Horsepower Gain; Designed To Improve Throttle Response And Engine Sound; Easy To Install; Replaces Entire Factory Air Intake System; Lasts Up To 100 000 Miles Before Service Required

Application summary

Year Make / model
2008-2009 Jeep Compass

Specifications

GTIN
00024844186195
Weight
9.38 lb
Height
12.25 in
Length
20.25 in
Width
12.25 in
EO
Not in CA
Life cycle
Discontinued
AAM brand code
KAN
Warehouse brand code
KAN
AAIA brand code
BBWQ

Attributes

Air Filter Color
Red
Air Filter Height
6.50 in. (165mm)
Air Filter Large End Diameter
6 in (152 mm)
Air Filter Material
Cotton Gauze
Air Filter Outlet Shape
Round
California Restricted
Not legal for sale or use in California
Clamp Material
Stainless Steel
Clamp Style
Regular
Clamps Included
4
Couplers Included
1
Estimated Horse Power Gain
7.94 HP @ 4557 RPM
Estimated Horsepower Gain
7.94 HP @ 4557 RPM
Filter Color
Red
Filter Material
Cotton Gauze
Horse Power Increase
8 HP
Intake Pipe Color / Finish
Black
Intake Pipe Material
High-Density Polyethylene
Item Weight
9.4000 lbs.
Mounting Hardware Included
Yes
Product Box Height
12.25 in. (311mm)
Product Box Length
20.25 in. (514mm)
Product Box Width
12.25 in. (311mm)
Product Style
63 Series Aircharger Kits
RPM
4557
Replacement Filter
RU-4730
Street Legal
No
Street Legal In All US States
No
TUV Approved (Europe)
No
Title
K&N 63-1552 Performance Air Intake System
Weight
9.4 lb (4.3 kg)

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2008-2009 Jeep Compass
