FEL-PRO · ES 72196
Part #: ES 72196
UPC: 614046731592
Loading...
Notify me when this item is in stock.

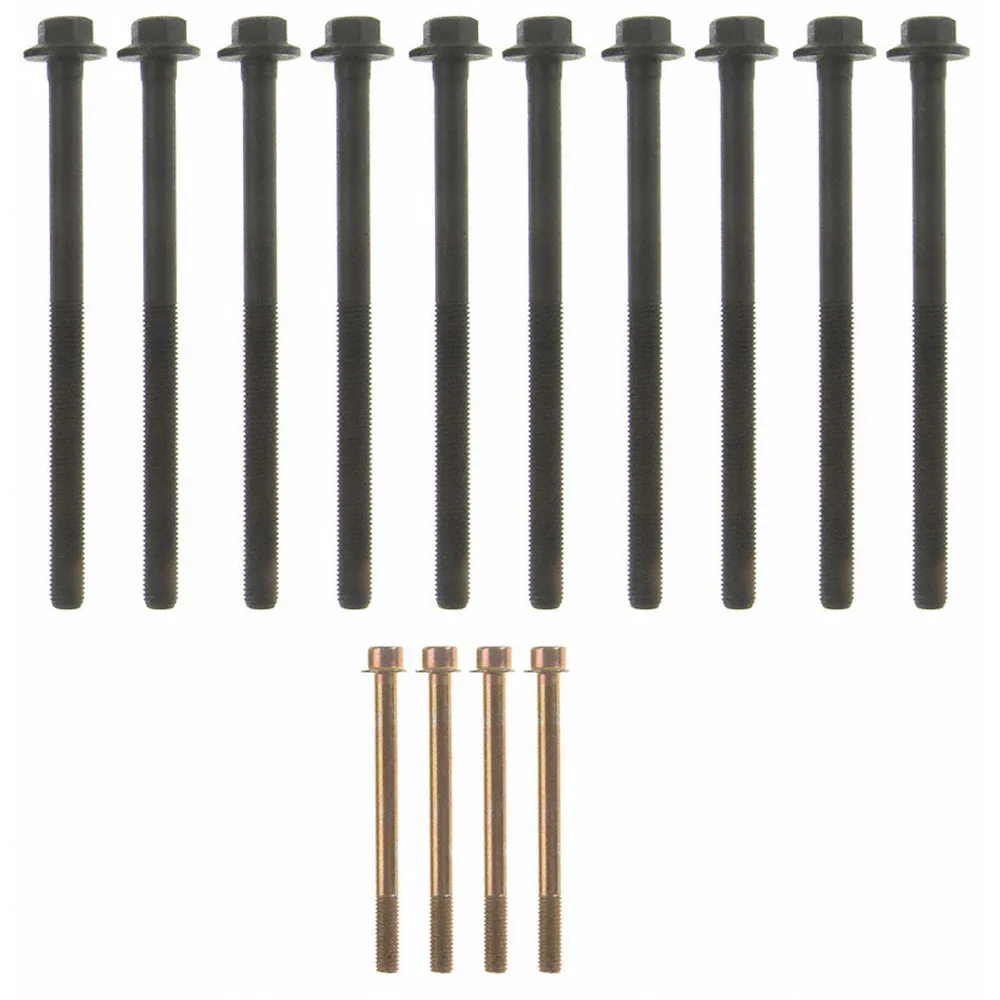

Description: FEL-PRO ES 72196 Engine Cylinder Head Bolt Set for Chevrolet Equinox
Description:
Description
Fel-Pro(R) gaskets are specifically designed for the repair environment to deliver a reliable seal on even the most troublesome applications. Designed for imperfect sealing surfaces and manufactured with proprietary materials, you can count on Fel-Pro for innovative sealing solutions for the real-world repair environment.
Features & benefits
- Meets or exceeds all original equipment specifications
- Application specific design to ensure a perfect fit
- Avoid risk associated with re-use of T-T-Y (torque to yield) head bolts
- Validated for fit, form and function
- Unsurpassed quality you can trust
Application summary
| Year | Make / model |
|---|---|
| 2010 | Buick Allure |
| 2010-2016 | Buick LaCrosse |
| 2011-2017 | Buick Regal |
| 2012-2017 | Buick Verano |
| 2012-2015 | Chevrolet Captiva Sport |
| 2002-2005 | Chevrolet Cavalier |
| 2004-2005 | Chevrolet Classic |
| 2005-2010 | Chevrolet Cobalt |
| 2010-2017 | Chevrolet Equinox |
| 2006-2011 | Chevrolet HHR |
| 2014 | Chevrolet Impala |
| 2004-2014 | Chevrolet Malibu |
| 2012-2014 | Chevrolet Orlando |
| 2010-2017 | GMC Terrain |
| 2002-2004 | Oldsmobile Alero |
| 2007-2010 | Pontiac G5 |
| 2006-2010 | Pontiac G6 |
| 2002-2005 | Pontiac Grand Am |
| 2005-2006 | Pontiac Pursuit |
| 2006-2009 | Pontiac Solstice |
| 2002-2005 | Pontiac Sunfire |
| 2007-2009 | Saturn Aura |
| 2003-2007 | Saturn Ion |
| 2001-2002 | Saturn L100 |
| 2001-2003 | Saturn L200 |
| 2004 | Saturn L300 |
| 2000 | Saturn LS |
| 2000 | Saturn LS1 |
| 2000 | Saturn LW1 |
| 2001-2003 | Saturn LW200 |
| 2007-2010 | Saturn Sky |
| 2002-2010 | Saturn Vue |
Specifications
- GTIN
- 00614046731592
- Weight
- 0.3 lb
- Height
- 0.2 in
- Length
- 17 in
- Width
- 14 in
- Life cycle
- Available to Order
- Alt. part number
- ES72196
- AAM brand code
- FEL
- Warehouse brand code
- FEL
- AAIA brand code
- BCWV
Attributes
- Alternate Part Number
- ES72196
- Assembly Lubricant Included
- No
- Bolt Critical Length
- 163mm (Bolt 1); 60mm (Bolt 2)
- Bolt Diameter
- 11mm (Bolt 1); 8mm (Bolt 2)
- Bolt Head Size
- 15mm (Bolt 1); Torx 55 (Bolt 2)
- Bolt Thread Length
- 94mm (Bolt 1); 60mm (Bolt 2)
- Bolt Thread Pitch
- 1.50 (Bolt 1); 1.25 (Bolt 2)
- California Proposition 65
- No
- Grade Type
- Premium
- Head Drive Type
- Hex
- Part Design or Feature or Use
- Replacement recommended
- Reusable
- No
- Thread Diameter
- 11
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2010 Buick Allure; 2010-2016 Buick LaCrosse; 2011-2017 Buick Regal; 2012-2017 Buick Verano; 2012-2015 Chevrolet Captiva Sport; 2002-2005 Chevrolet Cavalier; 2004-2005 Chevrolet Classic; 2005-2010 Chevrolet Cobalt; 2010-2017 Chevrolet Equinox; 2006-2011 Chevrolet HHR; 2014 Chevrolet Impala; 2004-2014 Chevrolet Malibu; 2012-2014 Chevrolet Orlando; 2010-2017 GMC Terrain; 2002-2004 Oldsmobile Alero; 2007-2010 Pontiac G5; 2006-2010 Pontiac G6; 2002-2005 Pontiac Grand Am; 2005-2006 Pontiac Pursuit; 2006-2009 Pontiac Solstice; 2002-2005 Pontiac Sunfire; 2007-2009 Saturn Aura; 2003-2007 Saturn Ion; 2001-2002 Saturn L100; 2001-2003 Saturn L200; 2004 Saturn L300; 2000 Saturn LS; 2000 Saturn LS1; 2000 Saturn LW1; 2001-2003 Saturn LW200; 2007-2010 Saturn Sky; 2002-2010 Saturn Vue
