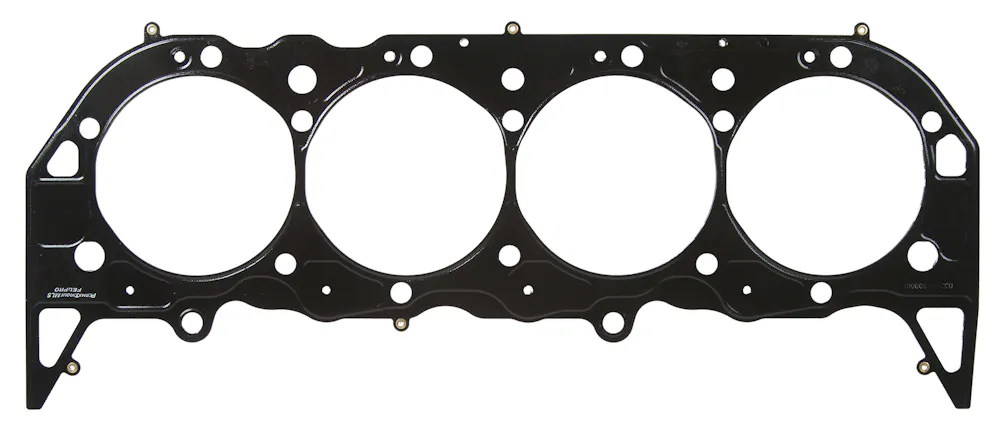

FEL-PRO · 1075
Part #: 1075
UPC: 614046667853
Loading...
Notify me when this item is in stock.
Description: FEL-PRO 1075 PermaTorqueMLS Engine Cylinder Head Gasket
Description:
This part number has been superseded by 1075-041.
Description
Fel-Pro(R) gaskets are specifically designed for the repair environment to deliver a reliable seal on even the most troublesome applications. Designed for imperfect sealing surfaces and manufactured with proprietary materials, you can count on Fel-Pro for innovative sealing solutions for the real-world repair environment.
Features & benefits
- Fel-Pro Performance head gaskets accommodate the high cylinder pressures and cylinder head movement associated with performance engines.
- The latest development in Fel-Pro Performance head gasket technology is the PermaTorqueMLS (multi-layer steel) series.
- Strategically located sealing beads surround the combustion chamber and coolant passages concentrating clamp load to prevent leakage.
- Retains sealing integrity in engines that experience significant scrubbing and movement due to dissimilar materials (such as aluminum heads on a cast iron
- Not intended for use in emission controlled vehicles.
Specifications
- GTIN
- 00614046667853
- Weight
- 1.1 lb
- Height
- 0.1 in
- Length
- 23.5 in
- Width
- 9.5 in
- Life cycle
- Discontinued
- AAM brand code
- FEL
- Warehouse brand code
- FEL
- AAIA brand code
- BCWV
Attributes
- Application Notes
- Suitable for marine applications
- Bore Size (in.)
- 4.580
- California Proposition 65
- No
- Combustion Chamber Volume (cc)
- 11.200
- Combustion Seal Design
- MLS bore bead
- Cylinder Bore Diameter
- 4.580
- Engine Displacement
- 396, 402, 427, 454, 502, 510, 540, 572
- Engine Family
- Chevrolet V8 Big Block
- Gasket Sealant Included
- No
- Grade Type
- Performance
- Material
- PermaTorque MLS
- Mfg.
- GM Performance
- Product Notes
- Fits Gen IV pass. car and H/P block; Pre-1971 blocks may require modification; Fits Gen IV truck and Bow Tie block; Fits Gen V block; Fits Gen VI block; One coolant hole per end; Three lower coolant holes; Minimal brinelling of aluminum heads
- Thickness
- 0.041
- Title
- Fel-Pro - PERFORMANCE CYLINDER HEAD GASKET
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
Chevrolet V8 Big Block, 396, 402, 427, 454, 502, 510, 540, 572 Engines
