Design Engineering, Inc. · 10919
Part #: 10919
UPC: 607078109194
Loading...
Notify me when this item is in stock.

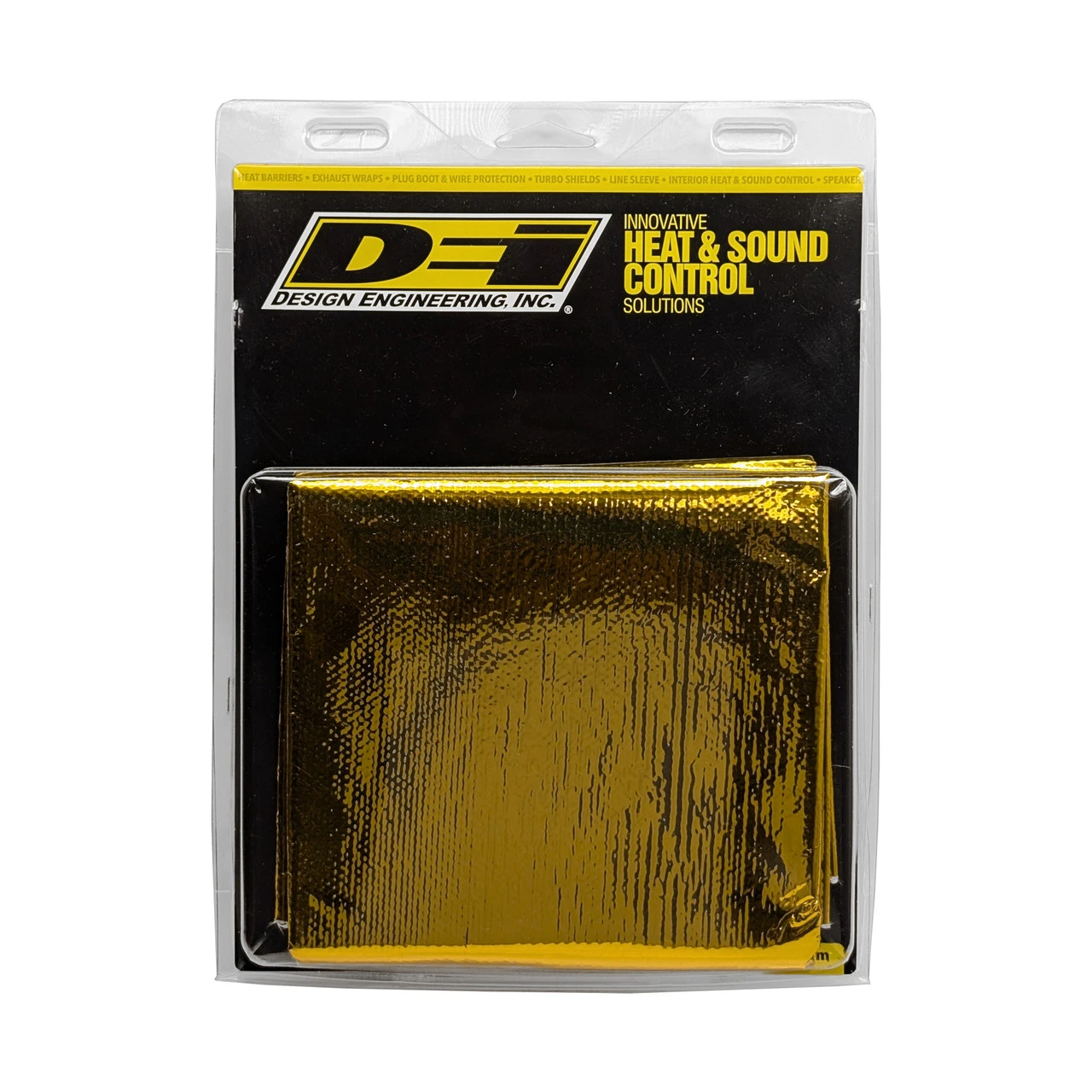

Description: Heat Screen Gold 24in x 24in; One 24 inch by 24 inch sheet of Heat Screen GOLD.
Description:
This part number superseded 010750.
Description

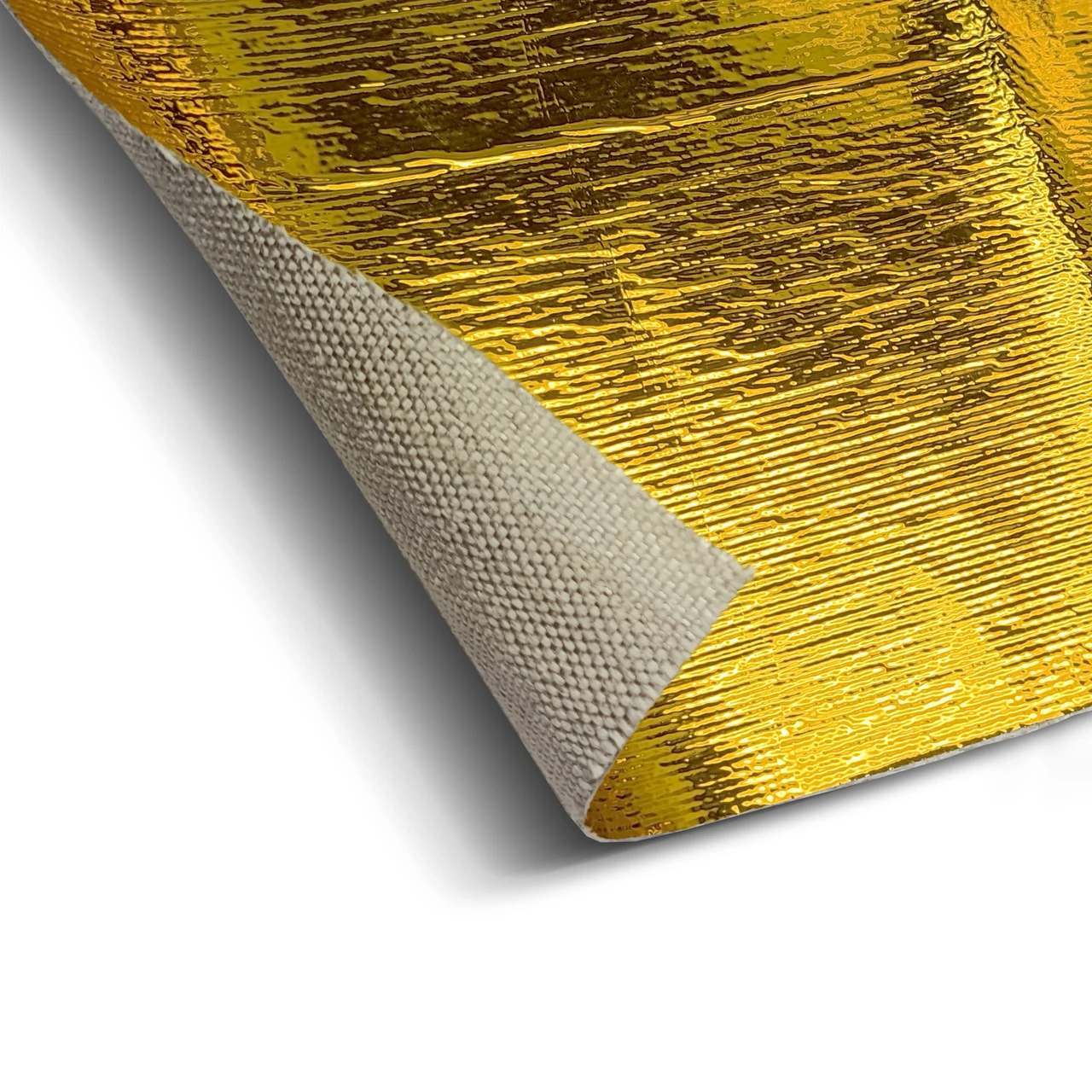

Heat Screen GOLD(TM) solves the problem of heat from engines and exhaust intruding into interiors and components. Manufactured from our high temperature metalized polyimide lamination, bonded to a robust 20oz heat treated glass fiber base material, Heat Screen GOLD is a reflective heat protection barrier that will protect and keep components cool in the most demanding applications. Able to reflect direct heat up to 800F makes this the perfect choice to keep critical components air intakes and interiors cool and protected. Heat flux test shows 36% reduction of temperature. 20oz. heat treated base glass Base glass radiant heat to 1100F .031 in. thick Mechanically fasten or use DEI Hi-Temp Adhesive DO NOT apply directly to exhaust components.
Features & benefits
- 20 oz. Heat Treated Base Glass
- Base Glass Radiant Heat To 1100 Degrees Fahrenheit
- .031 in. Thick
- Mechanically Fasten Or Use DEI Hi-Temp Adhesive
- Do Not Apply Directly To Exhaust Components.
Information
Heat Screen GOLD(TM) solves the problem of heat from engines and exhaust intruding into interiors and components. Manufactured from our high temperature metalized polyimide lamination, bonded to a robust 20oz heat treated glass fiber base material, Heat Screen GOLD is a reflective heat protection barrier that will protect and keep components cool in the most demanding applications. Able to reflect direct heat up to 800F makes this the perfect choice to keep critical components air intakes and interiors cool and protected. Heat flux test shows 36% reduction of temperature. 20oz. heat treated base glass Base glass radiant heat to 1100F .031 in. thick Mechanically fasten or use DEI Hi-Temp Adhesive DO NOT apply directly to exhaust components.
Specifications
- GTIN
- 00607078109194
- Weight
- 1.01 lb
- Height
- 2 in
- Length
- 14 in
- Width
- 14 in
- Life cycle
- Available to Order
- AAM brand code
- DEI
- Warehouse brand code
- DEI
- AAIA brand code
- BGWZ
Attributes
- Attachment Type
- Spray Adhesive or Mechanical Fasteners
- Backing
- Non-Adhesive
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color
- Gold
- Configuration
- One Piece
- Consumer Features and Benefits
- 0.031” thick
- Consumer Marketing Description
- Heat Screen GOLD™ metalized radiant matting from DEI can be installed almost anywhere in your vehicle to reduce intrusion of exhaust and engine heat. Made from high-temperature metalized polyimide film bonded to heat-treated 20 oz glass, Heat Screen GOLD™ reflects direct heat up to 800°F and radiant heat up to 1,100°F. Use it to cover air intake tubes, firewalls, over-transmission tunnels, air boxes, under the carpet, and around mufflers and catalytic converters. Non-automotive uses include marine, powersports, or wherever direct or radiant heat protection is desired. Heat Screen GOLD™ goes on mechanically or via adhesive spray. This part number, 10919, measures 24” x 24” (4 sq ft) and easily cuts to size.
- Cutting Required
- Yes
- Direct Heat Resistance
- 800°F
- Includes
- One 24 inch by 24 inch sheet of Heat Screen GOLD.
- Length
- 24
- Material
- Heat Screen GOLD
- Mounting Hardware Included
- No
- Radiant Heat Resistance
- 1100°F
- Shape
- Straight
- Thickness
- .125
- Title
- DEI 10919 Heat Screen GOLD 24" x 24" 010919
- Universal Or Specific Fit
- Universal
- Width
- 24
Fitment status
This product is universal and will fit your application.
Equivalent Parts
Design Engineering, Inc. 10919
